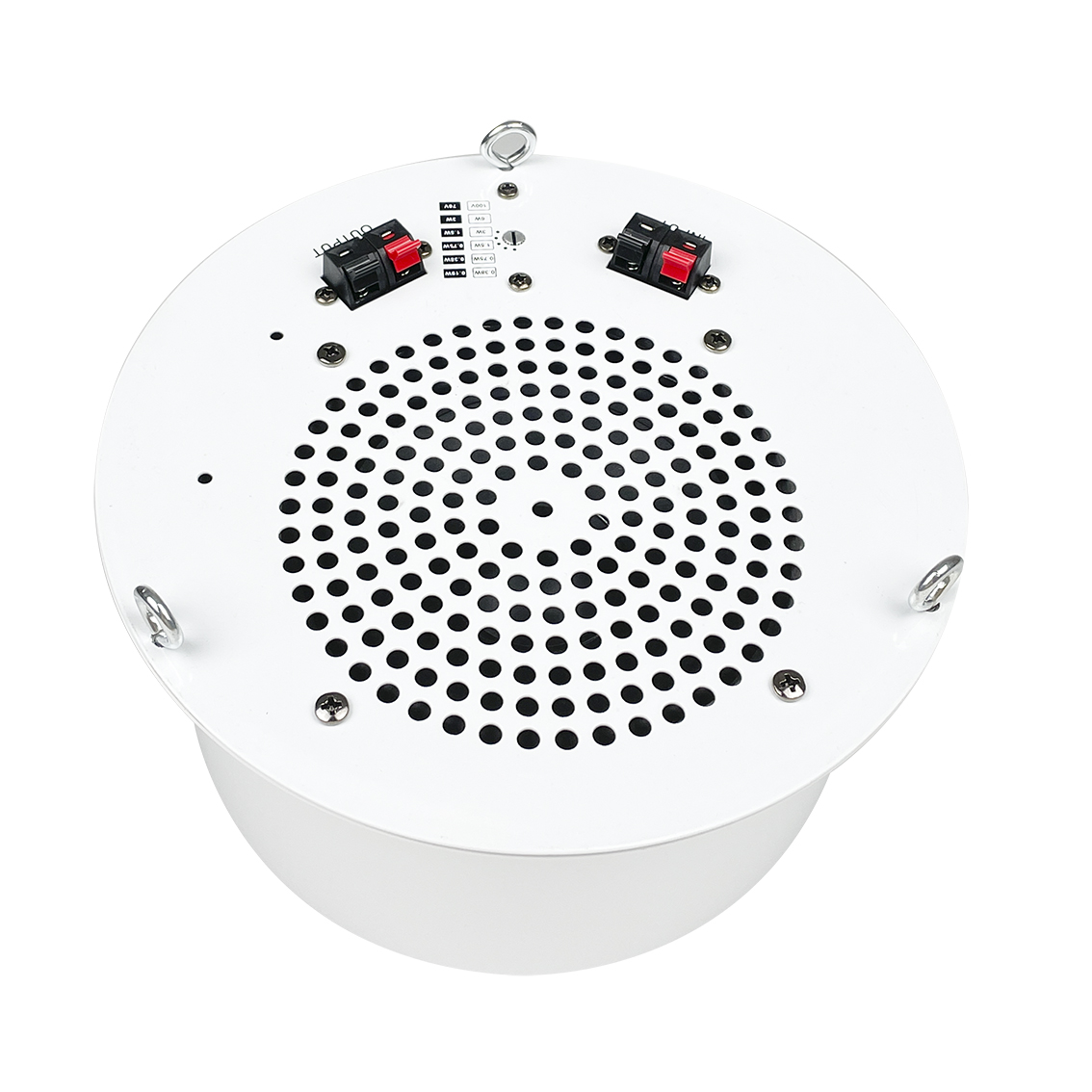

The SM-506 office sound masking speaker contains a 5.25-inch diameter speaker mounted on axis. The compact enclosure includes a convoluted, flame retardant, acoustical insert to eliminate standing waves and metallic resonance. It provides uniform dispersion and is well suited for sound masking, paging, and music signals.
5″ Office Sound Masking Speaker
| MODEL | SM-506 |
| Power at 100V | 6W/3W/1.5W/0.75W/0.38W |
| Frequency Response | 100Hz-12KHz |
| Sensitivity | 83±3dB |
| Nominal Impedance | 100 V / Secondary Equals 8 Ohms |
| Nominal Dispersion | 160° H x 165° V |
| Height | 10.1cm |
| Weight | 1.6kg |
| Speaker | 5.25″ full range paper cone driver |
| Color | White |
