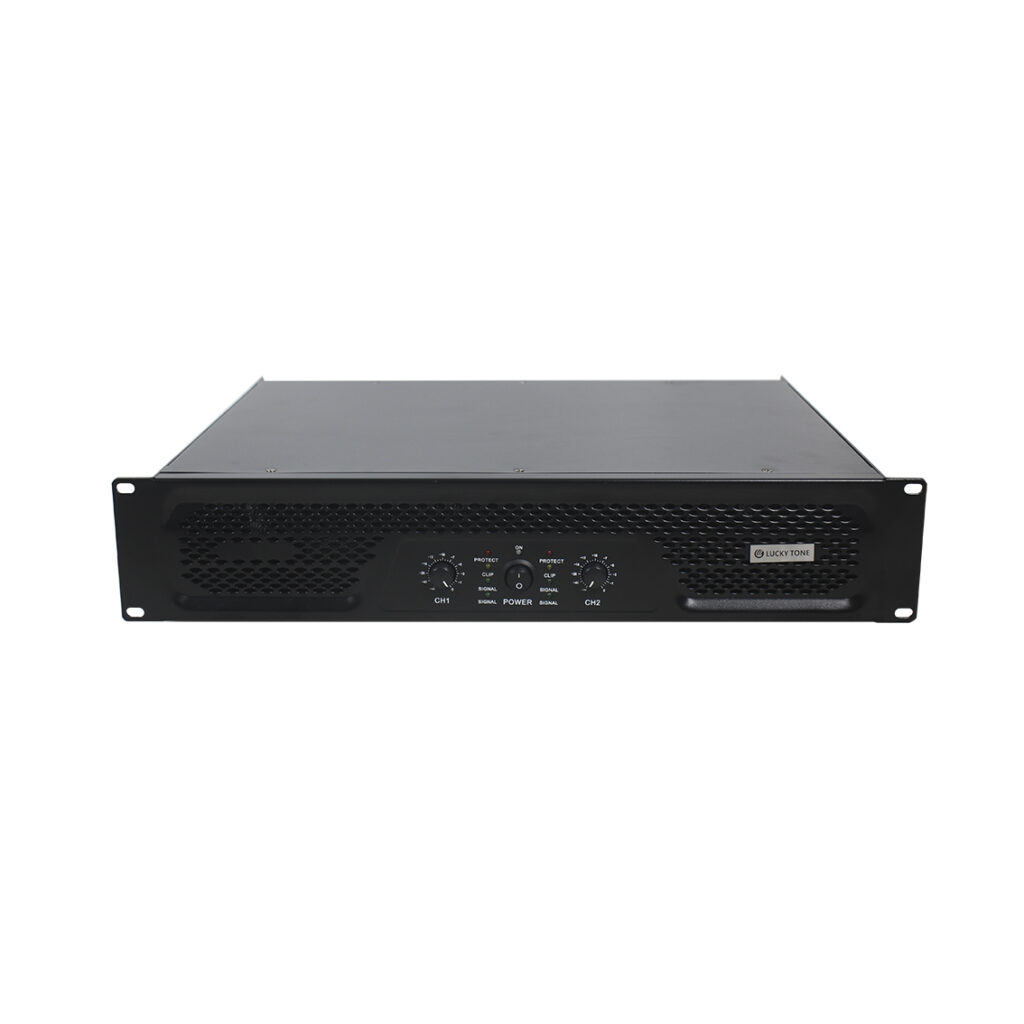

CK. Power amplifier

2U standard
Large energy power supply , high-efficiency and super ring transformer
Input signal set 0.775V ,1V and 14V selection switch
With protection, signal, clip, bridge and power LED
Lift and right channel with dual polar cooling fan, high- efficiency air cooling channel
With a power star soft , DC protection , short protection , thermal protection, overload protection



 Model CK-200 CK-300 CK-500
4Ω load 300Wx2 450Wx2 800Wx2
8Ω load 200Wx2 300Wx2 500Wx2
8Ω bridge load 600W 900W 1000W
Frequency response 20Hz-20kHz ±1dB 20Hz-20kHz ±1dB 20Hz-20kHz ±1dB
SNR ＞100dB ＞100dB ＞100dB
Total Harmonic distortion ＜0.01% ＜0.01% ＜0.01%
Input impedance 20kΩ 20kΩ 20KΩ
Input voltage 0.775V,1,1.4V 0.775V,1,1.4V 0.775V,1,1.4V
Input connect XLR XLR XLR
Output connect Neutrik Speakon Neutrik Speakon Neutrik Speakon
Switch mode Stereo/Bridge/Parallel Stereo/Bridge/Parallel Stereo/Bridge/Parallel
Power supply 220V/240V AC50~60Hz 220V/240V AC50~60Hz 220V/240V AC50~60Hz
Size(L×D×W)mm 480x350x88 480x350x88.9 480x350x88
Weight 10.5kg 13.02kg 14.8kg
