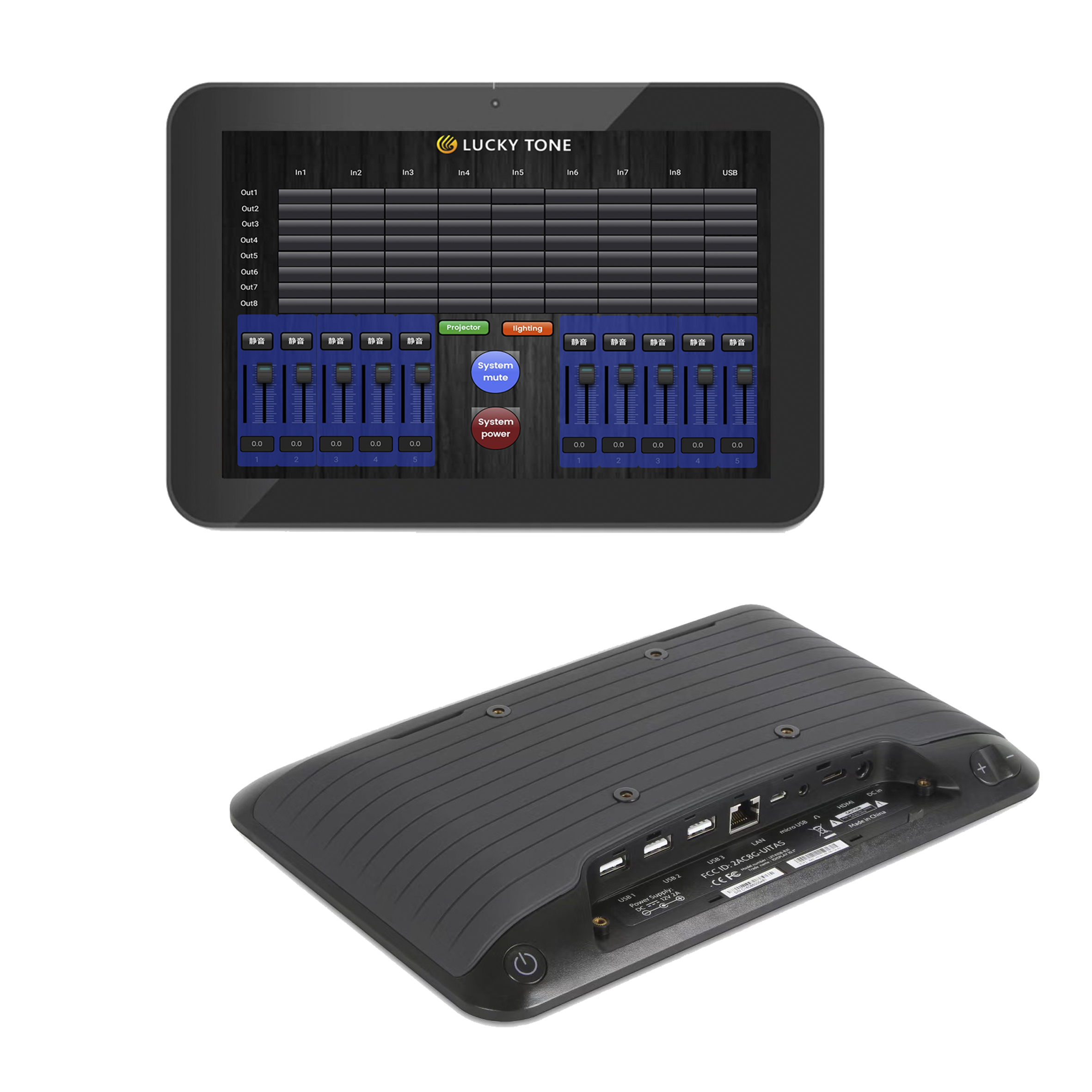

Dante Wall Control Panel

Dante Wall Control Panel for DSP 1616N+, 1616ND+, 880N+, 880ND+,3232ND+, 6464ND+

  • Supports centralized control of processing functions for 32 devices.
  • Control of DSP volume, mute, presets, matrix mixing, and device status detection.
  • Functions support user customization.
  • Adopt UDP communication protocol.
  • Powered by PoE or DC 12V.

Model

DCON 9

Screen

8 Inch

Color

Black

Screen Type

IPS

Resolution

1280×800

Brightness

250cd/m2

Operating System

Android 8.1

Main Chip

Quad-core cortex-A17，RockChip RK3288

RAM

2GB

Storage

16G

Contrast Ratio

800:1

Aspect Ratio

16:9

Power Input

DC 12V 1.5A &PoE IEEE802.3AT

Product Dimensions

212.2×147.6x31mm

Product Weight

0.7Kg

Downlaod

DCON 9 catalog 20231113 (1)
