Digtal Mixer Amplifiers with Audio Source

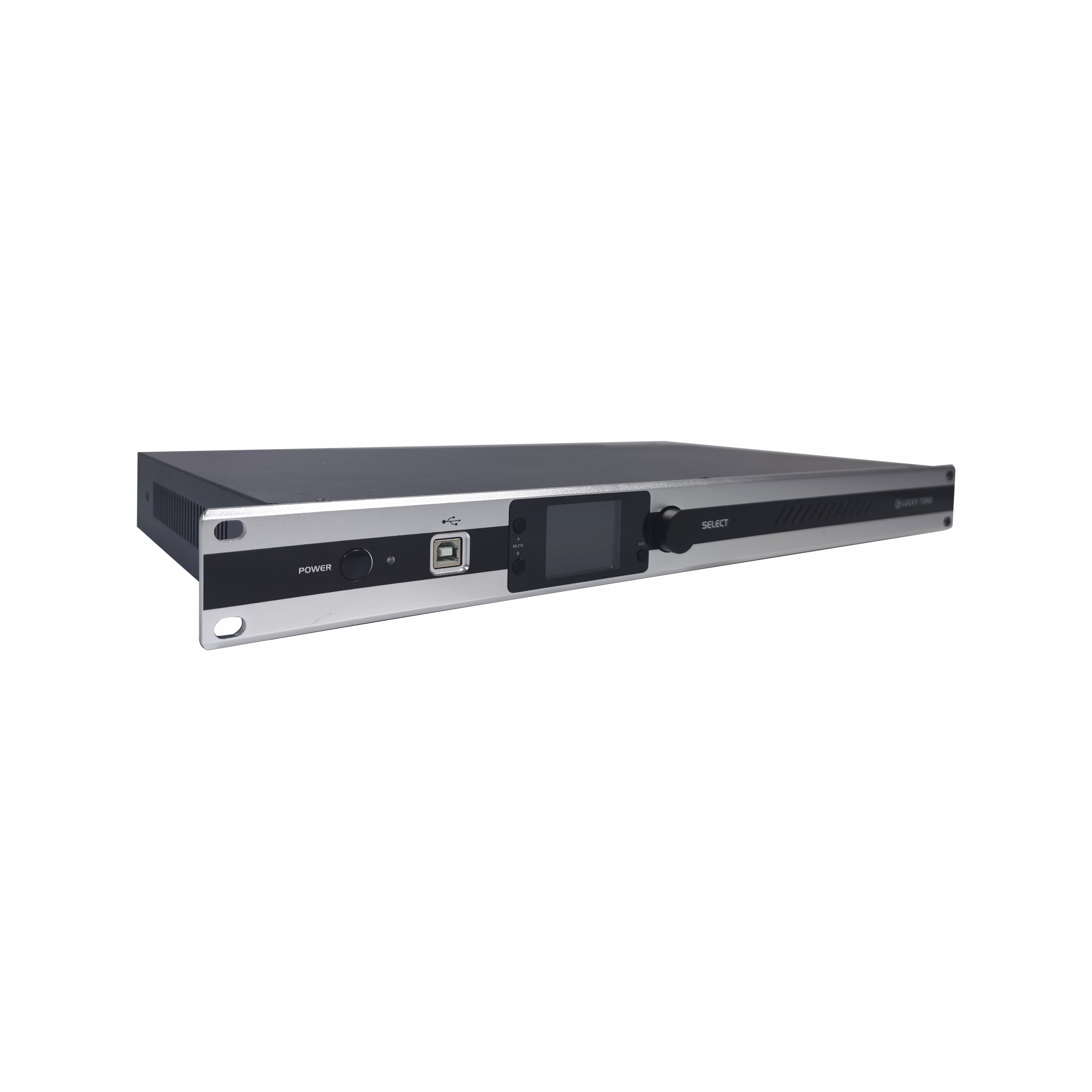

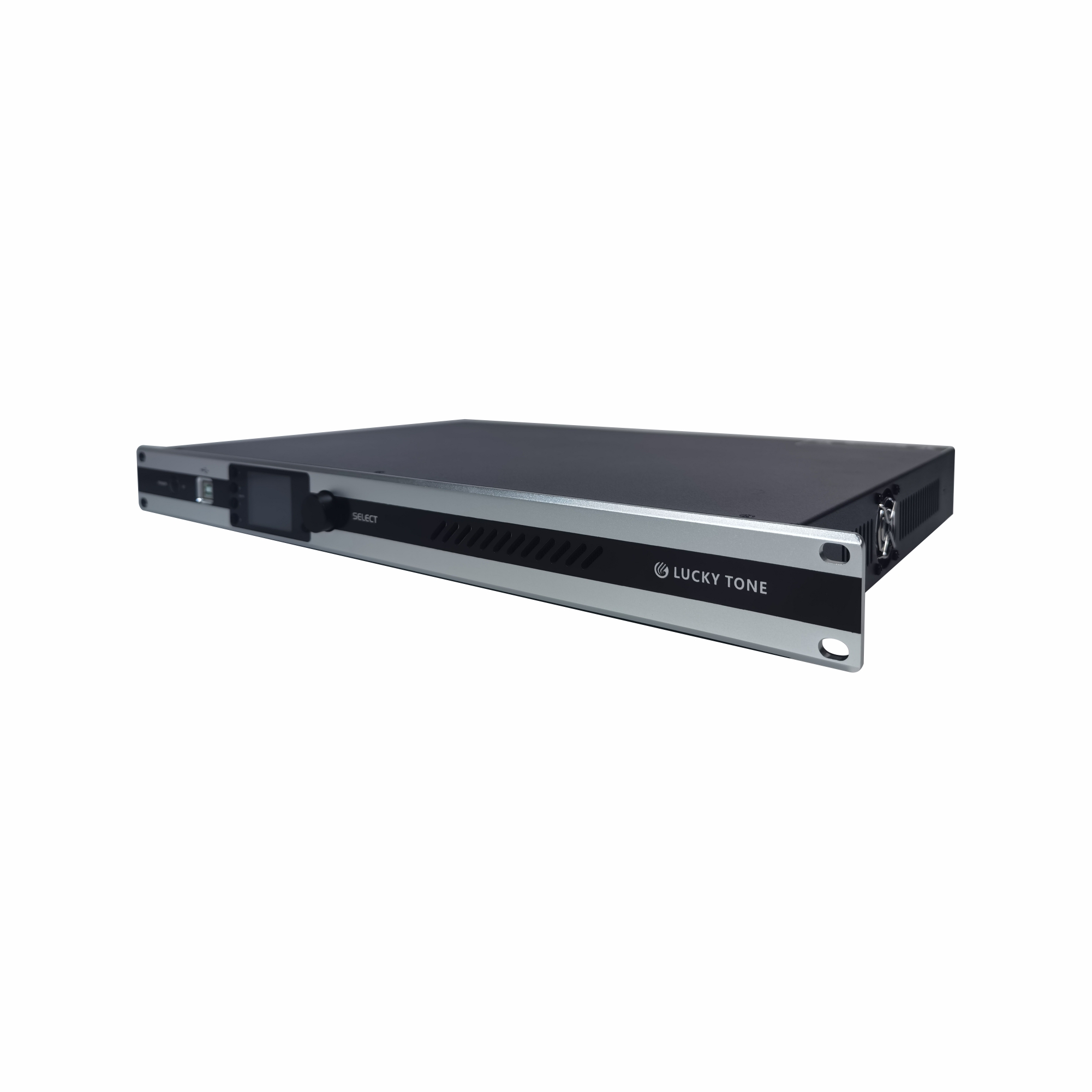

MA-1000TD V2 is a multi-function network DSP digital High-Z and low-Z power amplifier 2*500W@4Ω, 2*300W@8Ω, bridged 1000W@8Ω, low-Z 100V-1000W@10Ω. It can remotely monitor the status of power amplifier, set compression Controller, limiter, noise gate, parametric equalization, matrix routing, delay and other DSP functions in real time. Simple software interface provides customers with simple setup and operation experience, and a variety of connection methods ensure its good configurability and expandability, suitable for various applications, such as performance center, theatre, gallery, hotel, conference center, shopping center, retail store, restaurant, etc.

Ordering code:

MA-1000T V2
2X500W mixer amplifier with DSP
MA-1000TD V2
2X500W mixer amplifier with DSP and Dante
MA-2000T V2
4X500W mixer amplifier with DSP
MA-2000TD V2
4X500W mixer amplifier with DSP and Dante

Features

Flexible Dante Network amplifier with DSP with both 100V line and 8ohm
Software selectable
Local analog audio input selection
Built-in DSP digital processor
Network TCP/IP control for multiple device management
Support multiple on line modes: USB, TCP/IP, RS232, RS485
Real-time remote monitoring of power amplifier working status
Support balanced XLR input and unbalanced RCA input
Support stereo, bridge, mono, free matrix mode, onebutton switching

MODEL MA-1000T V2/MA-1000TD V2 MA-2000T V2/MA-2000TD V2
Output Power 2*500w at 4ohm; or 1*600W at 8ohm bridged,
1*600W 100V line bridged, 1*600W 70V line bridged
4*500w at 4ohm; or 2*600W at 8ohm bridged,
2*600W 100V line bridged, 2*600W 70V line bridged
Output 100V or 4 – 16ohm, DSP software selectable 100V or 4 – 16ohm, DSP software selectable
Frequency Response 20 – 20,000 Hz, +/- 0.5dB at 1W, 8ohm 20 – 20,000 Hz, +/- 0.5dB at 1W, 8ohm
THD Less than 0.1% at 1W to full load Less than 0.1% at 1W to full load
S/N Ratio 6dBu and 0dBu at 94dB 6dBu and 0dBu at 94dB
Input EQ 5 Bands 5 Bands
Output EQ 9 Bands 9 Bands
Cooling Internal 12VDC fan, extensive heat sinking Internal 12VDC fan, extensive heat sinking
Display 240*240 res, IPS colored 240*240 res, IPS colored
Dante interface 2 Channel 2 Channel
Power Requirements 100-240V AC, 50/60 Hz 100-240V AC, 50/60 Hz
Dimensions 44.5(H) x 483(W) x 330(D) mm 44.5(H) x 483(W) x 330(D) mm
Built-in Dimensions 1 U rack 19 inch 1 U rack 19 inch
Finish Panel: Aluminum plate, black; Case: steel plate, black Panel: Aluminum plate, black; Case: steel plate, black
