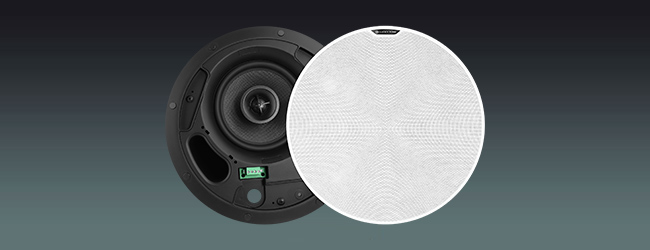

Innovative & unique design
Wide opening angle
Ceiling suspension or wall mount optional
With high-quality polypropylene enclosure
Adopt acoustic engineering craftsmanship
Provide premium performance for demanding applications
Suitable for bars, restaurants, retail, education, public facilities, corporate spaces, sport facilities
W: White Color,B: Black Color
| MODEL | HWS-440W/B | HWS-550W/B | HWS-660W/B | HWS-880W/B |
| Tweeter | 0.75″(20 mm) Silk soft dome | 1″(25mm) Silk soft dome | 1″(25mm) Silk soft dome | 1.1″(28 mm) Silk soft dome |
| Woofer | 4″(100 mm) Graphite Cone,Rubber Surround | 5″ (125mm) Graphite Cone,Rubber Surround | 6.5″ (165 mm) Graphite Cone,Rubber Surround | 8″(203 mm) Graphite Cone,Rubber Surround |
| Frequency Range+/-3 | 80 Hz-20k Hz | 98 Hz-20k Hz | 51 Hz-20k Hz | 44 Hz-20k Hz |
| Power Handling RMS | 40W 8 ohms | 50W, 8 ohms | 60W, 8 ohms | 80W, 8 ohms |
| Sensitivity | 83 dB | 84 dB | 85 dB | 86 dB |
| Taps | 8Ω,0,20W,10W,5W,2.5W | 8Ω,0,30W,15W,7.5W,3.75W | 8Ω,0,40W,20W,10W,5W | 8Ω,0,50W,25W,12.5W,6.25W |
| Impedance | 8 ohms | 8 ohms | 8 ohms | 8 ohms |
| Termination | Pluggable Terminal Blocks | Pluggable Terminal Blocks | Pluggable Terminal Blocks | Pluggable Terminal Blocks |
| Attachment | Brackets/Safety rope | Brackets/Safety rope | Brackets/Safety rope | Safety rope |
| Dimensions W*H | Dia 155 x 215mm | Dia 190 x 250mm | Dia 230 x 300mm | Dia 270 x 343mm |
| Certifications | IP66 | IP66 | IP66 | IP66 |
| Material | PP | PP | PP | PP |
