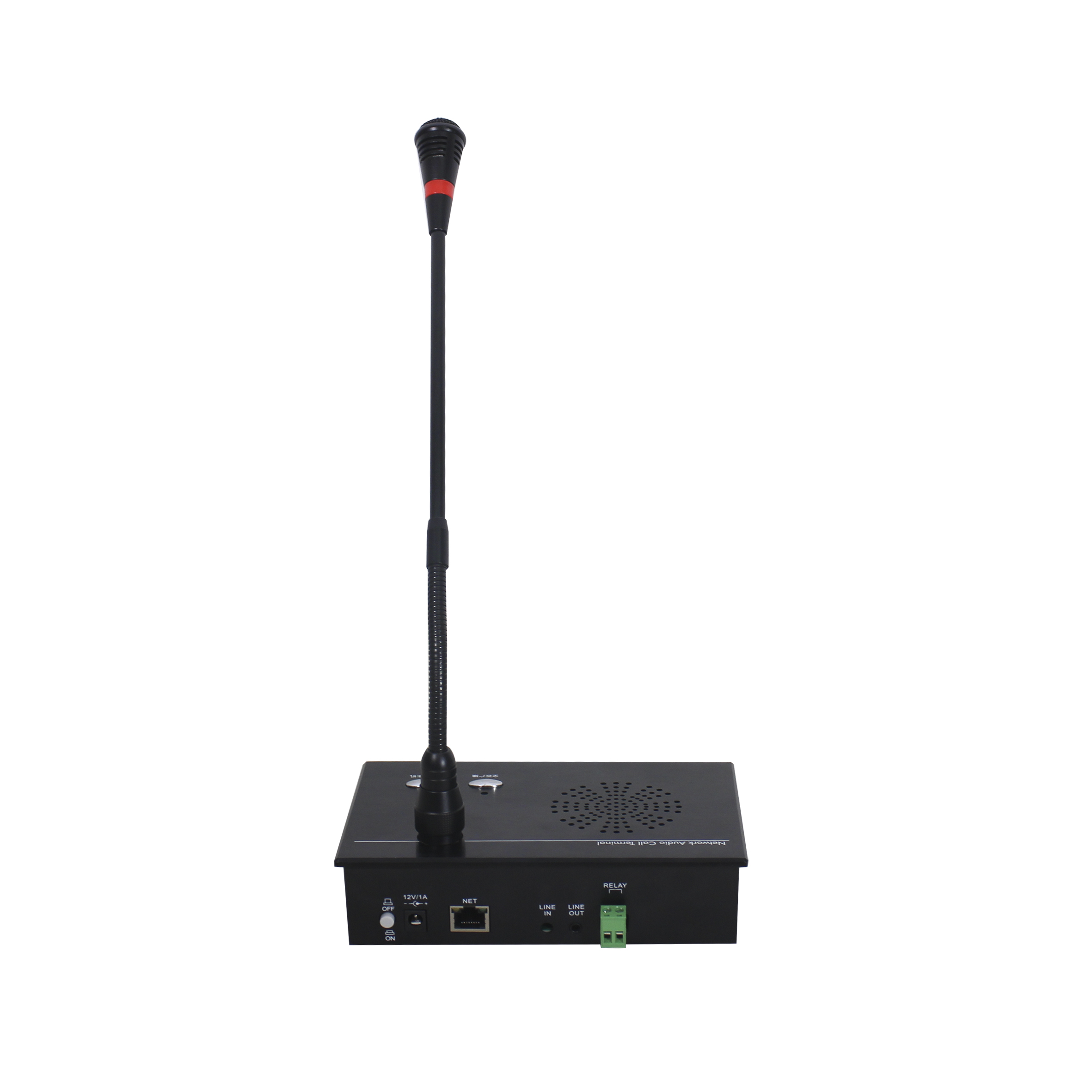

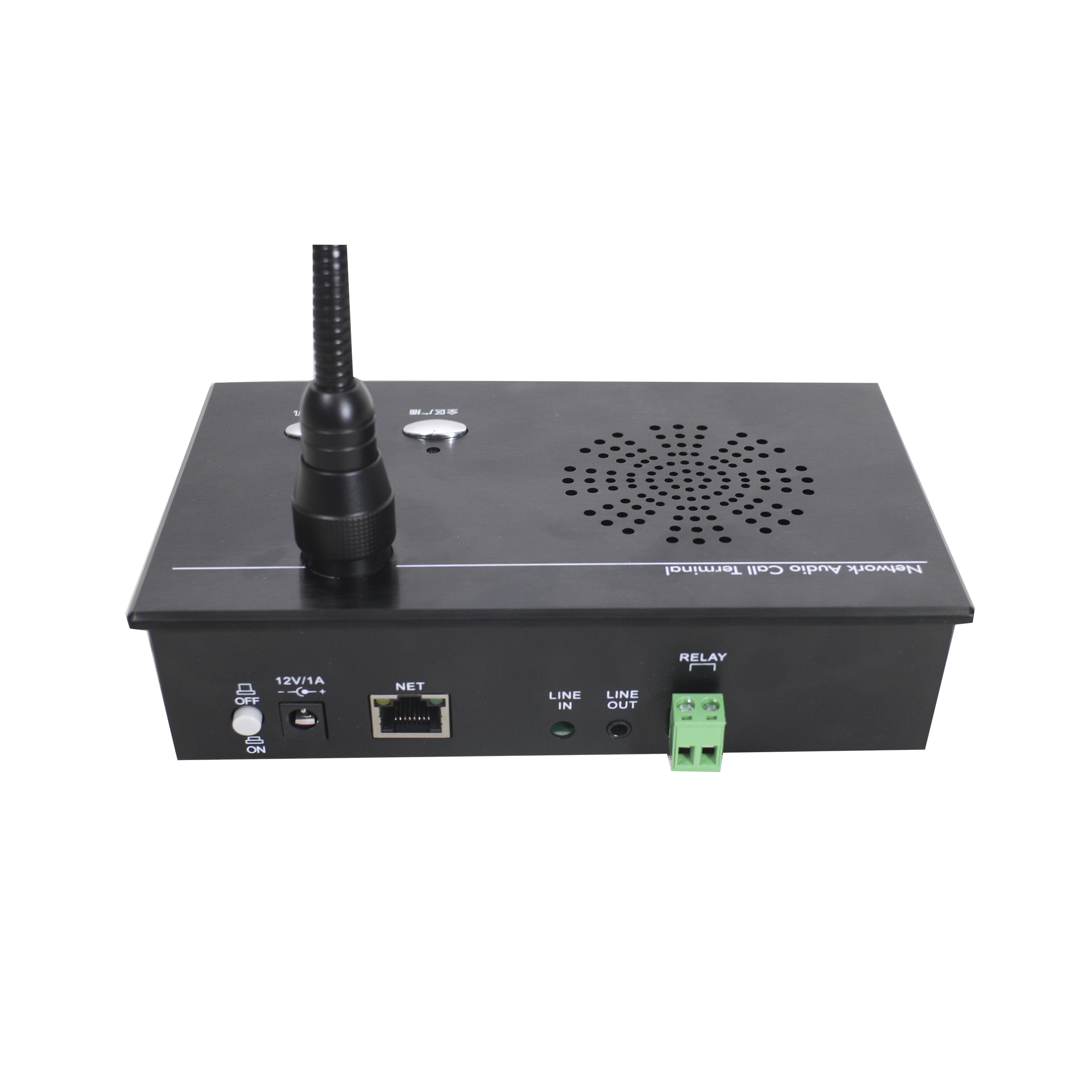

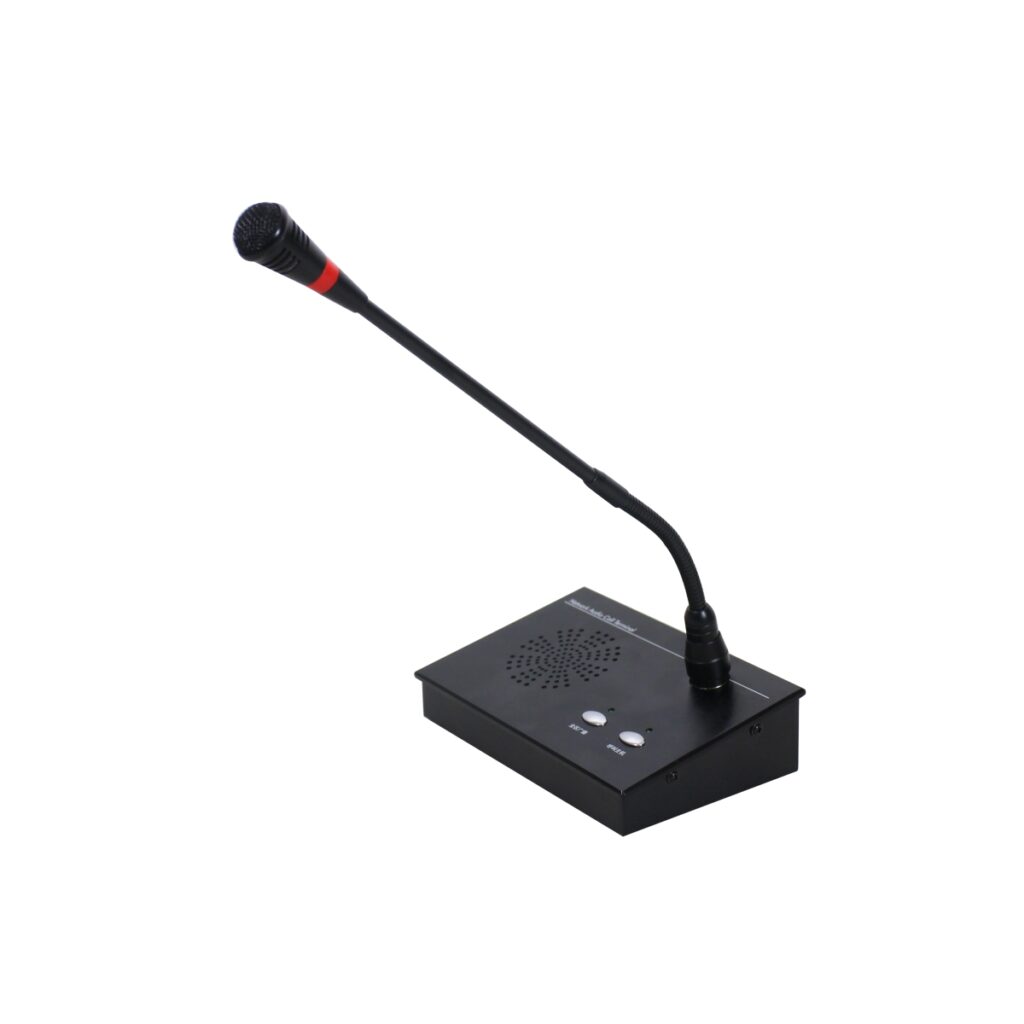

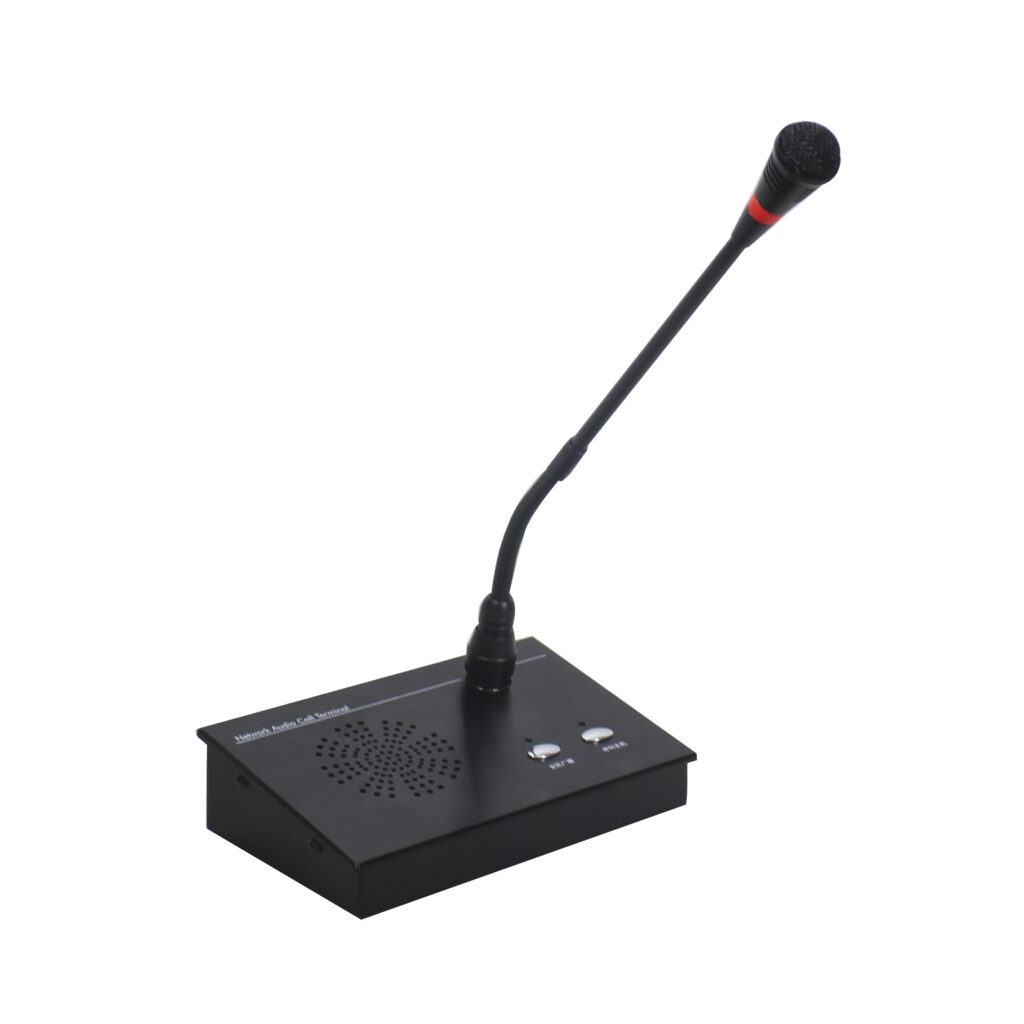

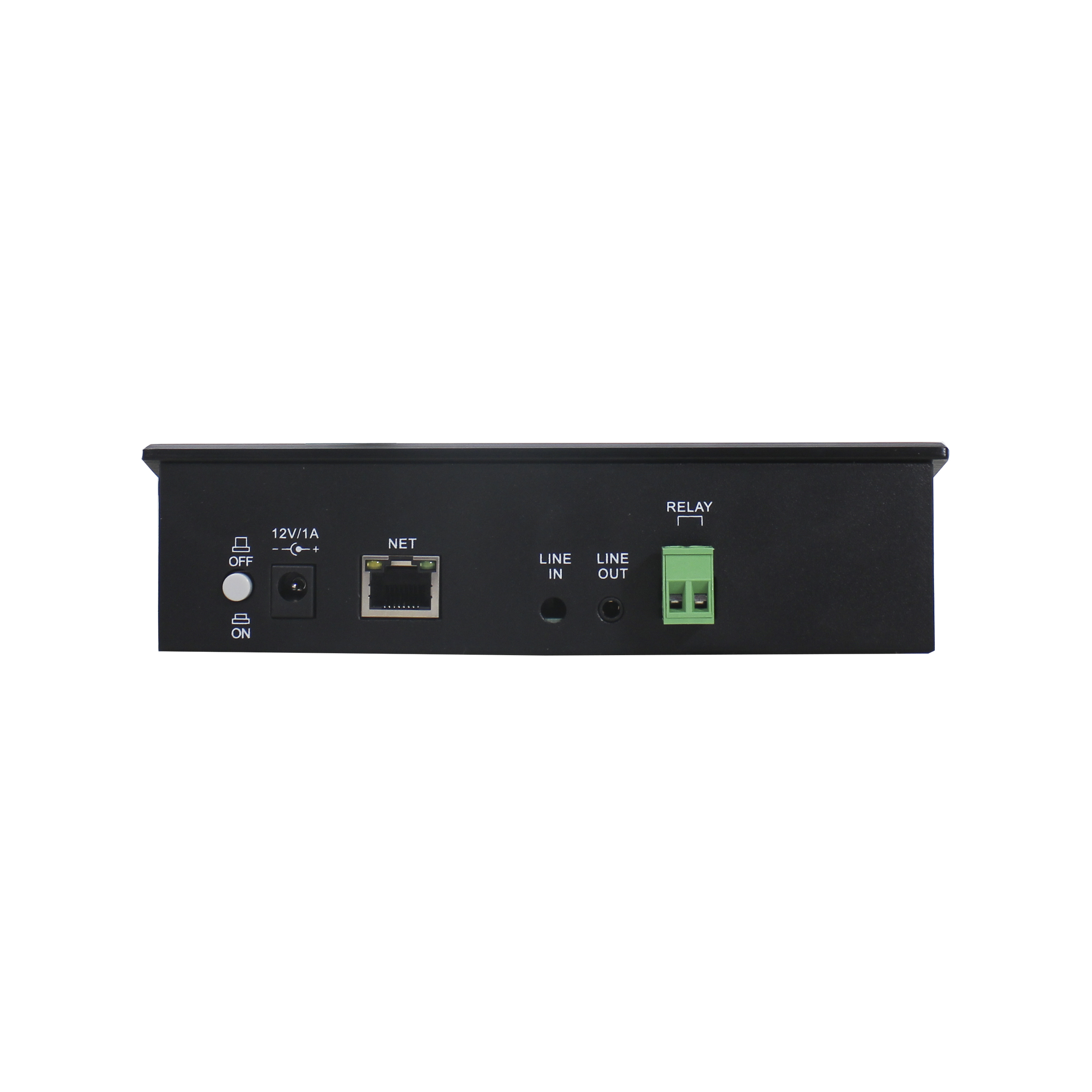

SIP Network Paging Microphone with Intercom

With a 10/100M Ethernet interface, line input and output, SIPM-10 is an SIP desktop intercom host that is used with SIP server.
SIPM-10 network paging microphone can perform point-to-point IP intercom and multicast to the IP terminal through a microphone or local line input.

As a host of the IP broadcast intercom system, SIPM-10 can be used in places where intercom, monitor and emergency alarms are needed, such as control centers of self-service banks, interrogation rooms, classrooms, hospitals and parking lots.

As an intercom terminal, SIPM-10 supports full-duplex two-way intercom and has good echo suppression. We offer standard sip
mode, which can be used in other standard SIP systems and compatible with standard SIP terminal devices.


Professional SIP Call Station to control and make announcement to all devices in the system.
Adopt high-speed industrial grade chip, start-up in less than 1s
Support zone paging, and the red indicator will light up when talking
Built-in speaker for monitoring and intercom
With audio output for external active speaker
Support offline talkback (without server)

Network Communication Protocol SIP
Network Interface 10/100Base-TX,RJ45
Frequency and Sampling Rate 8kHz-32 kHz, 16 bit
Decoding MPEG,ADPC
Microphone Frequency Range 70Hz~12.5KHz
Operating Temp. 0~65°C
Power Supply DC 12V
Dimensions(L*W*H) 150 x 140 x 55 mm
Net Weight 0.6Kg
