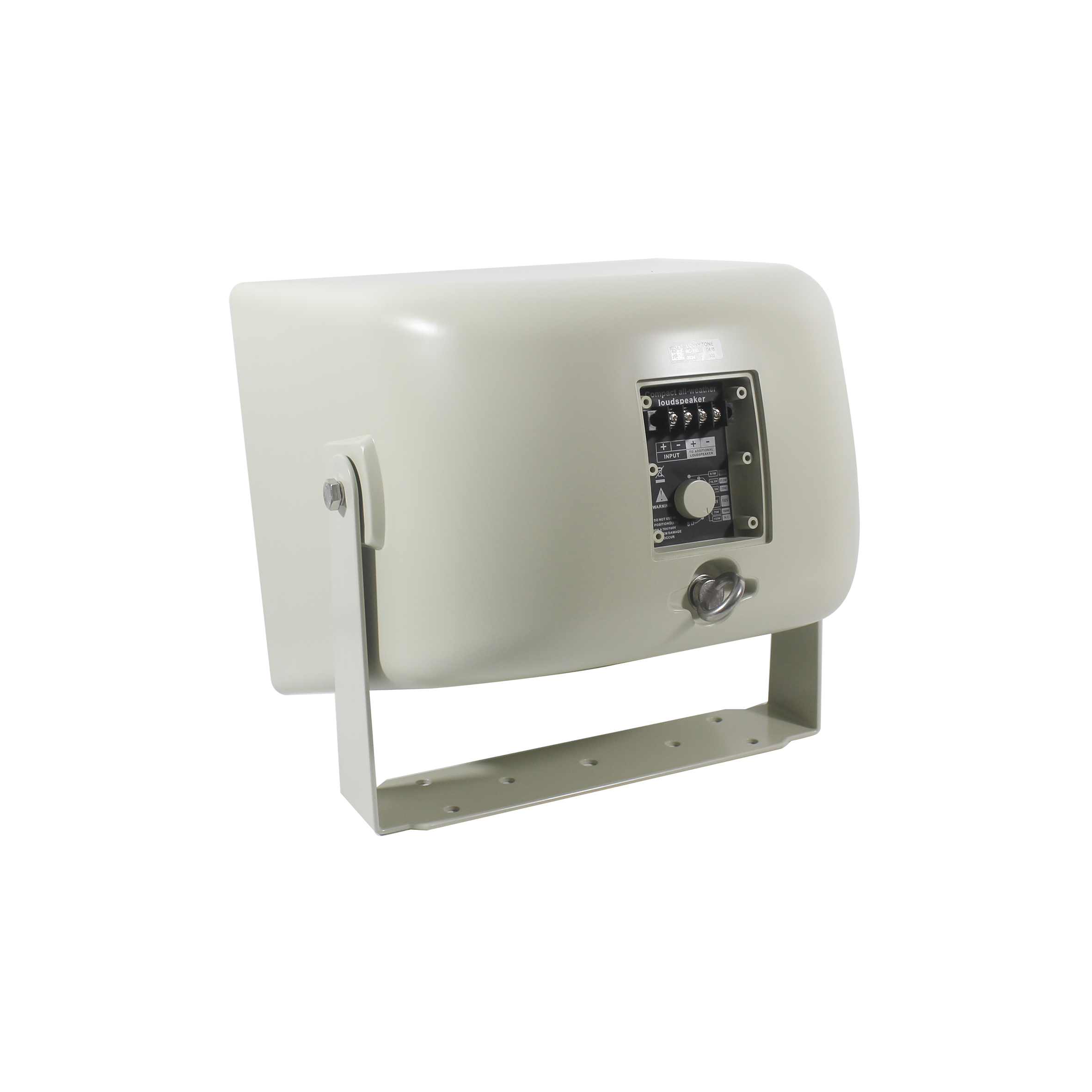

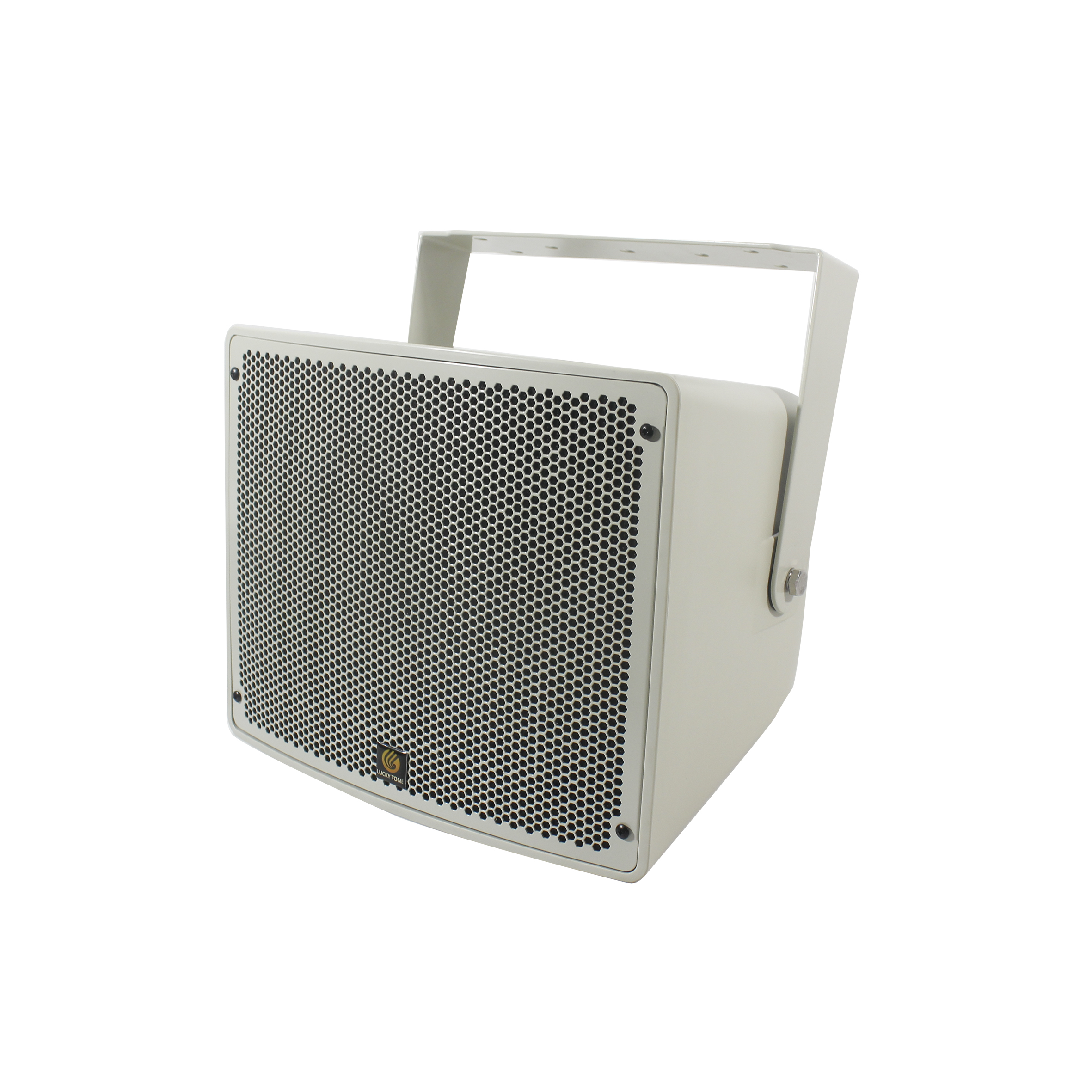

Ultra-Compact Coaxial Two-Way All-weather Horn Speaker

The compact models give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable enclosures. Both models include front-loaded LF drivers in highly reinforced enclosures for natural, nonresonant low frequency reproduction, while identical voicing ensures a uniform listening experience.

  • Ultra-compact size, high output
  • Premium music applications
  • Full frequency horn, professional, all weather
  • With switch selection 70V, 100V, and 8 ohms
  • IP 55 for outdoor application

Ordering Code:

RC-150: 8 ohm 150W

RC-150T: 100V line 150W

Model RC-150 RC-150T
Rated power 150W@8ohm 18.5W/37.5W/75W/150W@100V
9.5W/18.5W/37.5W/75W@70V 150W @8ohm
Maximum power 300W 300W
Input 8ohm 70V/100V/8ohm
Sensitivity (1W/1M) 93dB ± 3dB 93dB ± 3dB
Frequency response 80Hz-18KHz 80Hz-18KHz
Radiation angle ∠120° ∠90-100°
Speaker unit 10”*1(Bass), 3”*1(Treble) 10”*1(Bass), 3”*1(Treble)
Product size 345*355*297mm 345*355*297mm
Weight 10.5KG 11KG
