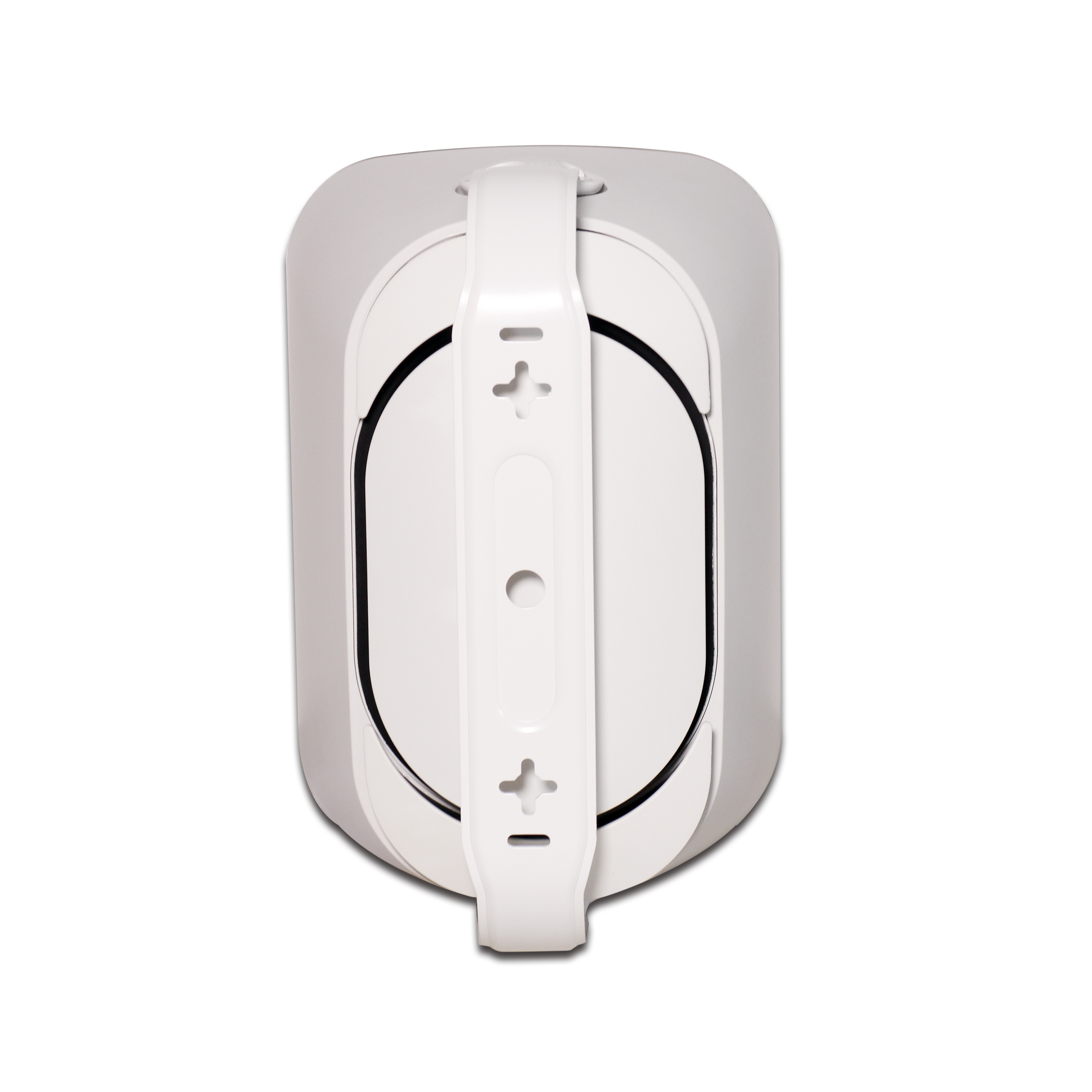

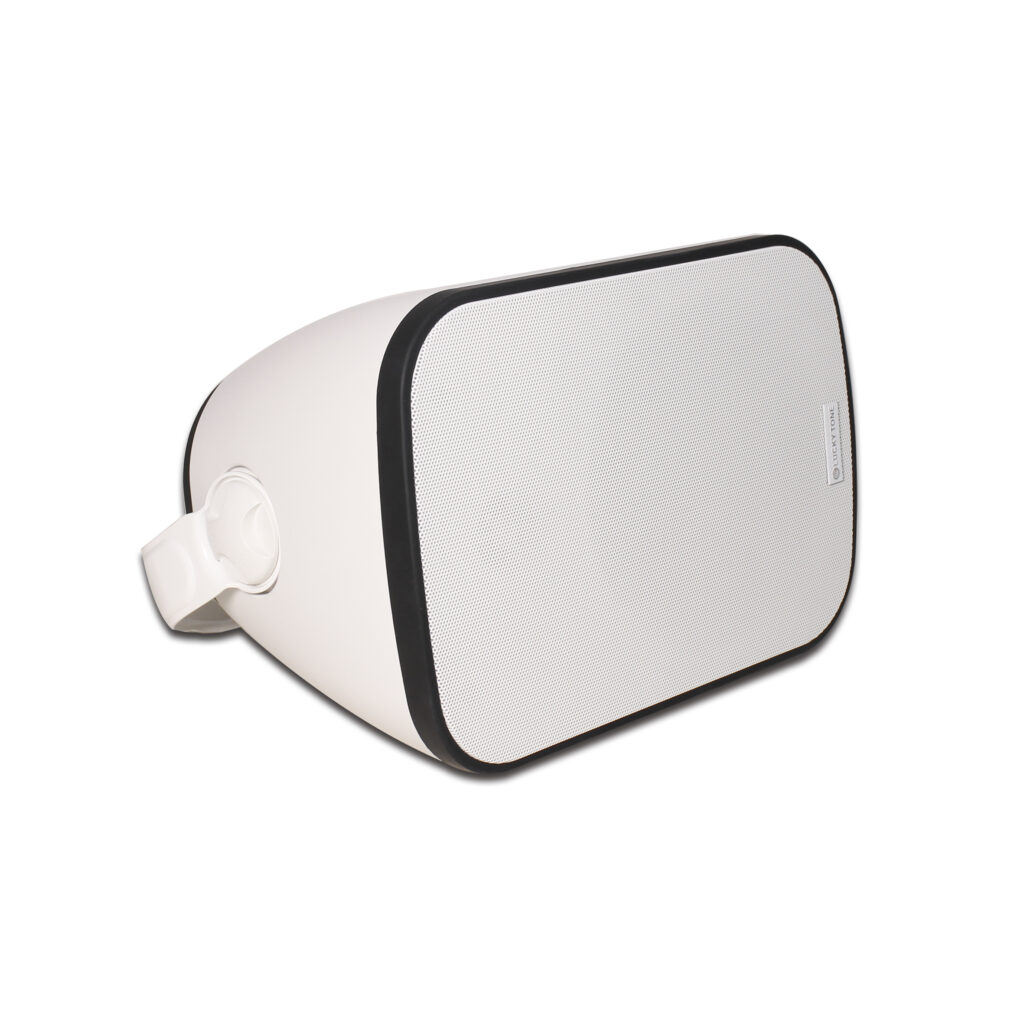

Waterproof Wall Mount Speaker

It is a new design IP66 Waterproof outdoor Wall Mount Speaker, which is Beauty, Durability,
Performance and User Friendliness. It delivers high quality audio as well as clean and clear
announcements for public address systems. The Unique Rear Covers not only helped to cover
the Euroblock Connector and Bypass Selector (PA Transformer) in the rear of the speaker, but
also designed to merge seamlessly with the OBE Bass Radiator and the overall design of

Speakers. Default white color, black color optional.



Features:
IP66, all weather wall mount speaker for indoor and outdoor use
With power tap for 70V/100V and 8Ω
Available in 5 inch, 6 inch and 8 inch
Quick installation with water-proof brackets
Fashionable appearance with high quality sound

Model WIP-540R  WIP-660R WIP-880R
Power at 100V 2.5W/5W/10W/20W, 40W@8ohm 5W/10W/20W/40W, 60W@8ohm 6.25W/12.5W/25W/50W, 80W@8ohm
Power at 70V 1.25W/2.5W/5W/10W, 40W@8ohm 2.5W/5W/10W/20W, 60W@8ohm 3.125W/6.25W/12.5W/25W, 80W@8ohm
Max SPL@ 1M 98dB 102dB 105dB
Freq. Response 100Hz-20KHz 90Hz-20KHz 70Hz-20KHz
Dispersion Angel 90×80 degree 90×80 degree 90×80 degree
Product Size 285x170x161mm 285x200x195mm 382x262x240mm
Installation Wall mount Wall mount Wall mount
Enclosure Material ABS ABS ABS
Weight 3kg 3.5kg 4.5kg
Finish White/Black White/Black White/Black
Speakers 5” woofer, 1” tweeter 6.5” woofer, 1” tweeter 8” woofer, 1” tweeter



×
