- Public Address and Commercial Audio Systems
Features:
● Manage 16 loudspeaker line overriding Public Address broadcast by output 24 VDC
● Activated by a 16-channel input and the input alarm signals control the 24V power source outputs.
● Can work with volume control and other emergency activating devices

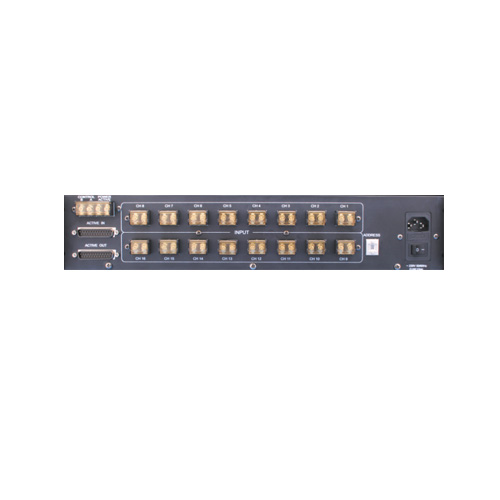

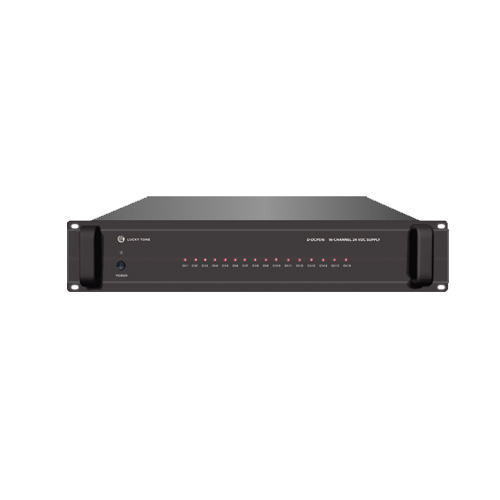

| MODEL | D-DCPS16 |
| Output | 16 channels 24V DC, 1A |
| Trigger Out | Low level(0V)or short circuit signal |
| Controls | Power switch and address dip setting |
| Indicators | POWER,CH1 ~ Ch16 |
| Protection | AC fuse: 6A |
| Power Requirement | AC 220V ± 10% 50-60Hz; 24VDC |
| Dimensions | 133(H) x 483(W) x 390(D) mm |
| Net Weight | 9.1kg |
