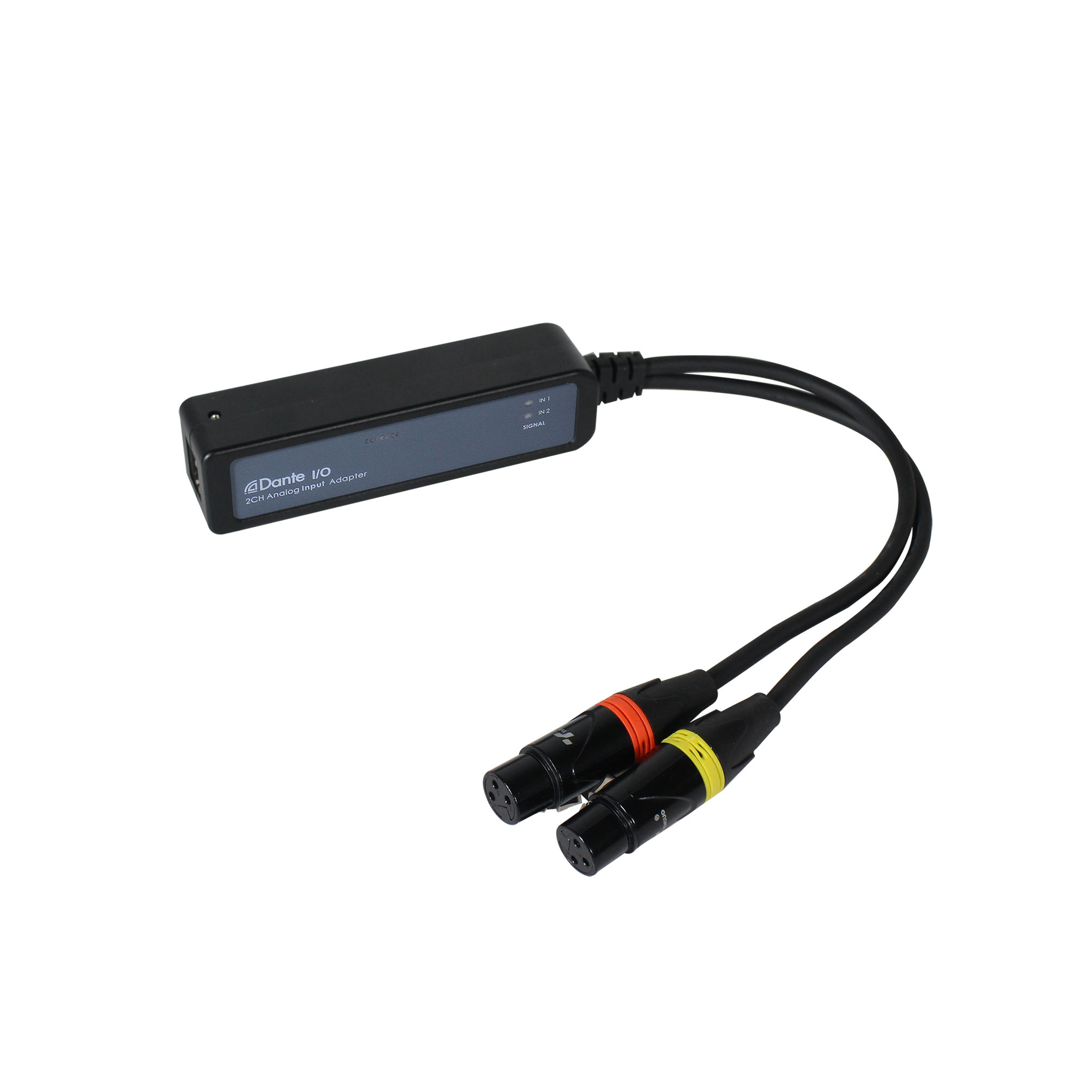

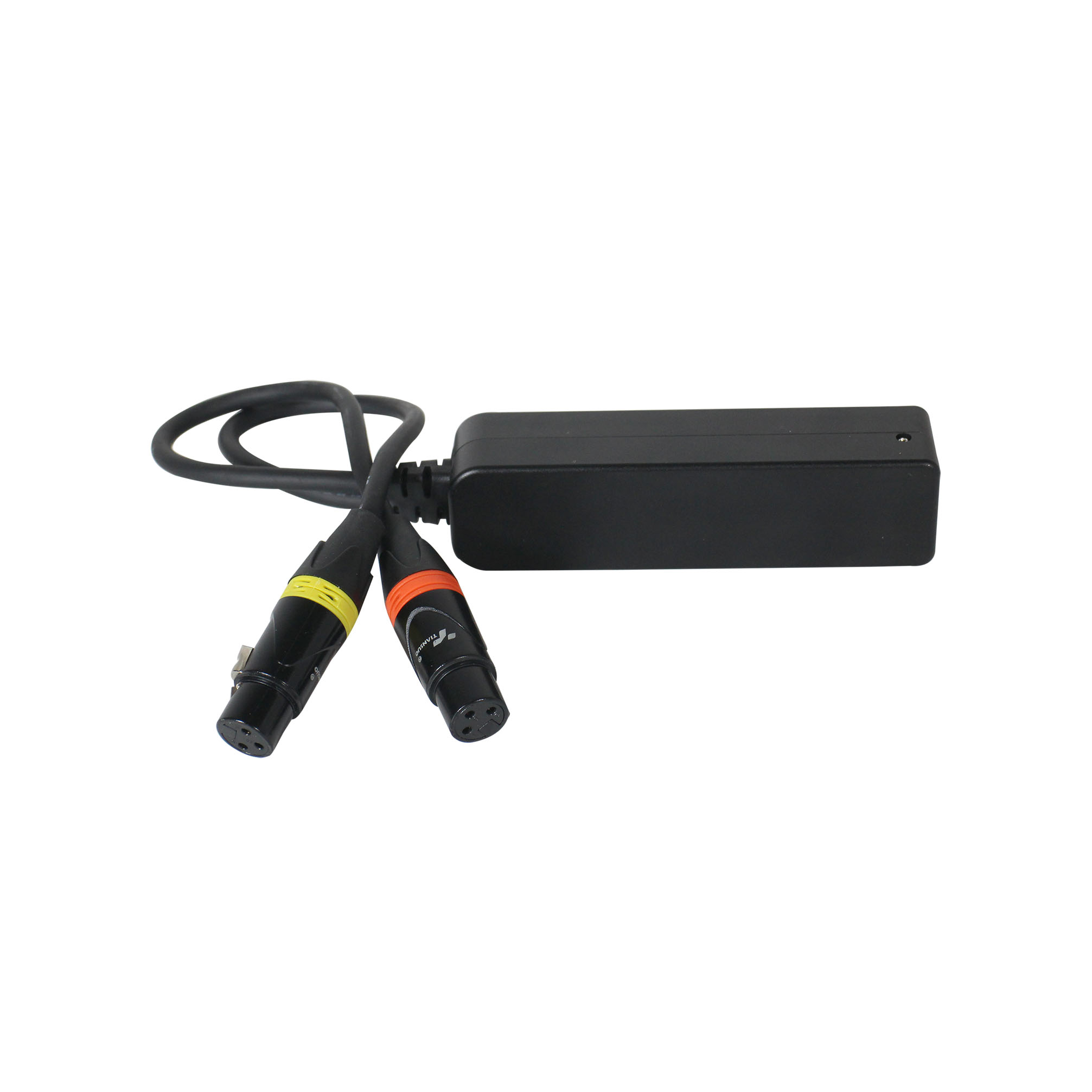

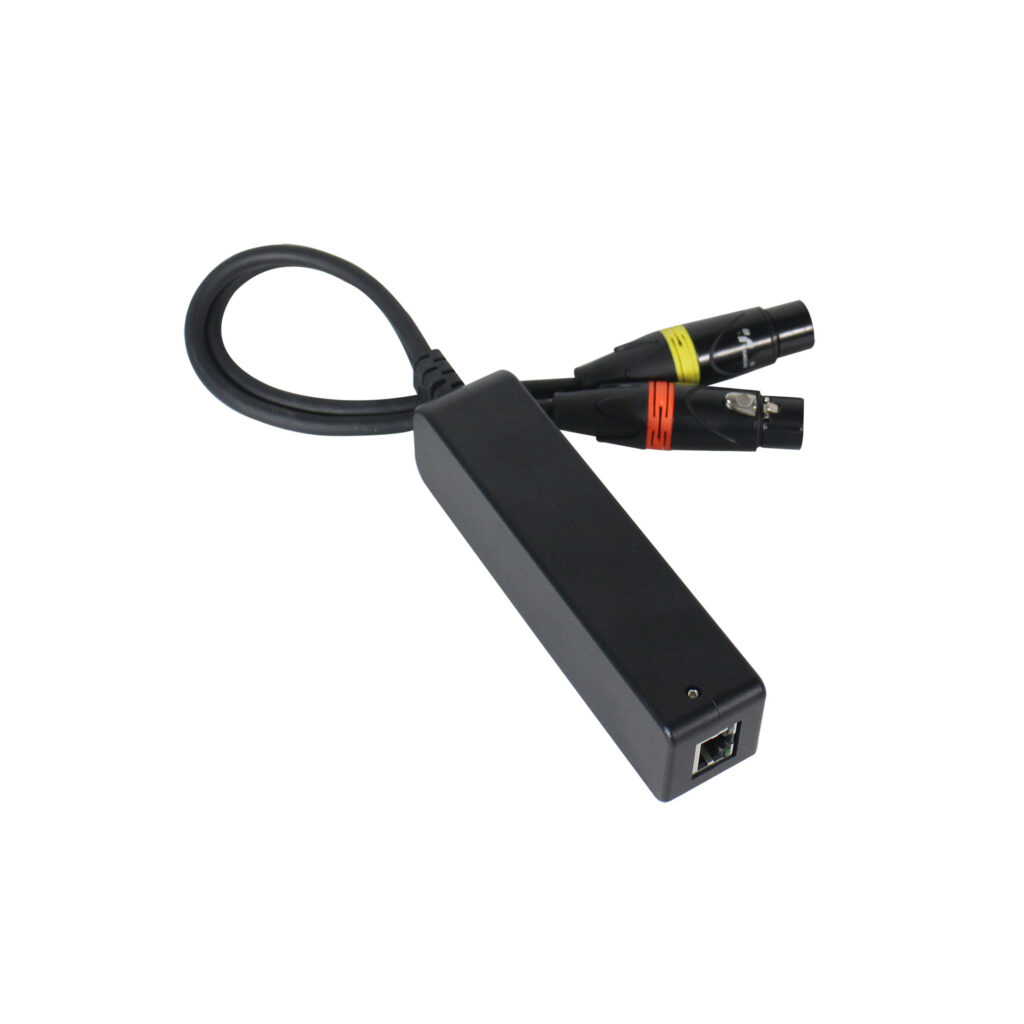

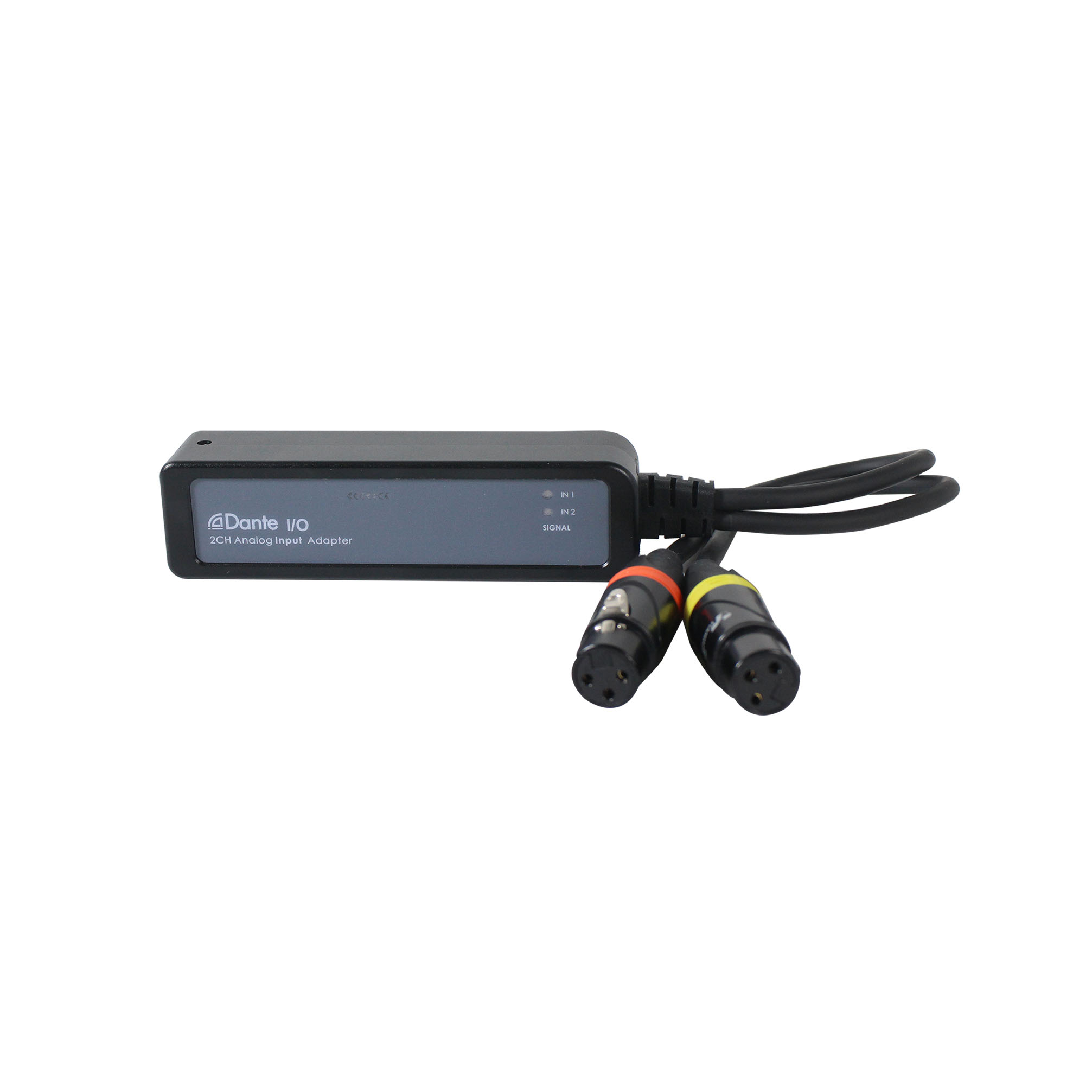

Convert 2 channels of analog line input signals to a Dante network
High Resolution 24 Bit Analog to Digital Conversion
AES67 compliant
Powered by Power over Ethernet switch or a PoE injector (802.3 af/at class1) or DC 5V via Micro USB connector
| MODEL | DI22 (Analog to Dante) |
| Maximum Output Level | 18dbu |
| Dynamic Range | 110dB |
| THD+N | 0.007% at 1kHz+4dBu |
| Signal-to-noise Ratio | >110dB |
| Frequency Response | 20Hz to 20kHz(-/+0.2dB) |
| Connector | RJ45 & 2XLR-F |
| Sampling Rate | 44.1kHz/48kHz/96kHz |
| Data Bits | 24bit |
| Dante Device delay | <1ms |
| Power Supply | Class 1 802.3af PoE |
