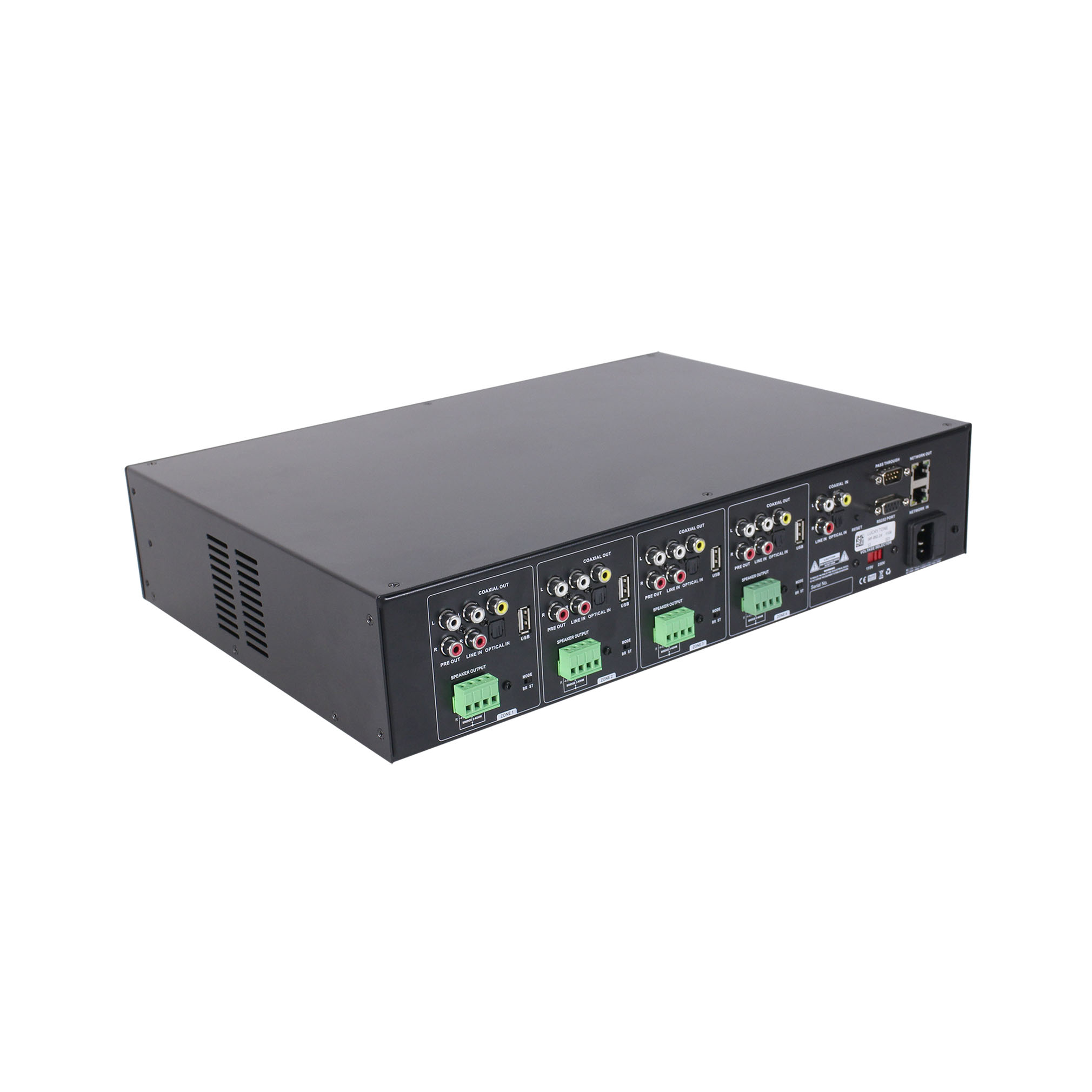

8-CH 4 Zone Stereo Network Amplifier

Description:

WF-850 Z4 is a multi-room system that enables you to enjoy your favorite music anywhere in your home. This model contains 4 audio amplififiers for you to connect to 4 set of stereo speakers. Each zone also contains analog and digital audio outputs for you to use as audio source. You can easily play music from online music services, your phone storage, Spotify and other sources by using Muzo Linkplay app on your iOS or Android device.
Features:
1.Amplifification: Each zone can provide 50Wx2@8ohms (stereo mode) or 100W@4ohms (bridge mode)
2.Multi-room audio function: Play different songs in different rooms or same song in every room.
3.Easy network setup: Connect to your home network and it is ready to use.
4.Rich I/O interface: Each zone has separate digital input/output and analog input/output. There is also a master source input that all zones can used at the same time.
Get a Quote
Downloads
Model  WF-850 Z4
Power RMS 8*50W, 4 Zone Stereo
Line in Max 2V RMS input
Audio input Optical in Max 192kHz/24bit sample rate decode PCM encoding
USB USB disk drive playback
Audio output Pre out Max 2V RMS input
Coaxial out 44.1Khz/16bit output
Speaker out 50W per channel @ 8ohm,
Bridged amplifier mode 100W @ 4ohm per channel
Master Input Source
Audio Input Line in Max 2V RMS input
Optical in Max 192kHz/24bit sample rate decode
Coaxial in PCM encoding
Network
Ethernet In
Rj45
 Connect to internet
Ethernet Out
Rh45
 Output to other device to share the network
Music Sources
Streaming Protocol Spotify Connect, Airplay, DLNA, UPnP, Qplay
Spotify, Tidal, Deezer, Qobuz, Naspter, Pandora, Amazon Music,
Online Music Internet Radio, iHeartRadio, vTuner
Local Music Mobile device music, NAS storage music files, USB disk drive music files
Multizone Function 1.By Master input source
2.By APP to setup one zone as master to sync music to other zone
General
Power 115-230V AC 50/60Hz
Control Interface Dual-way RS232
Size 2U rack size
