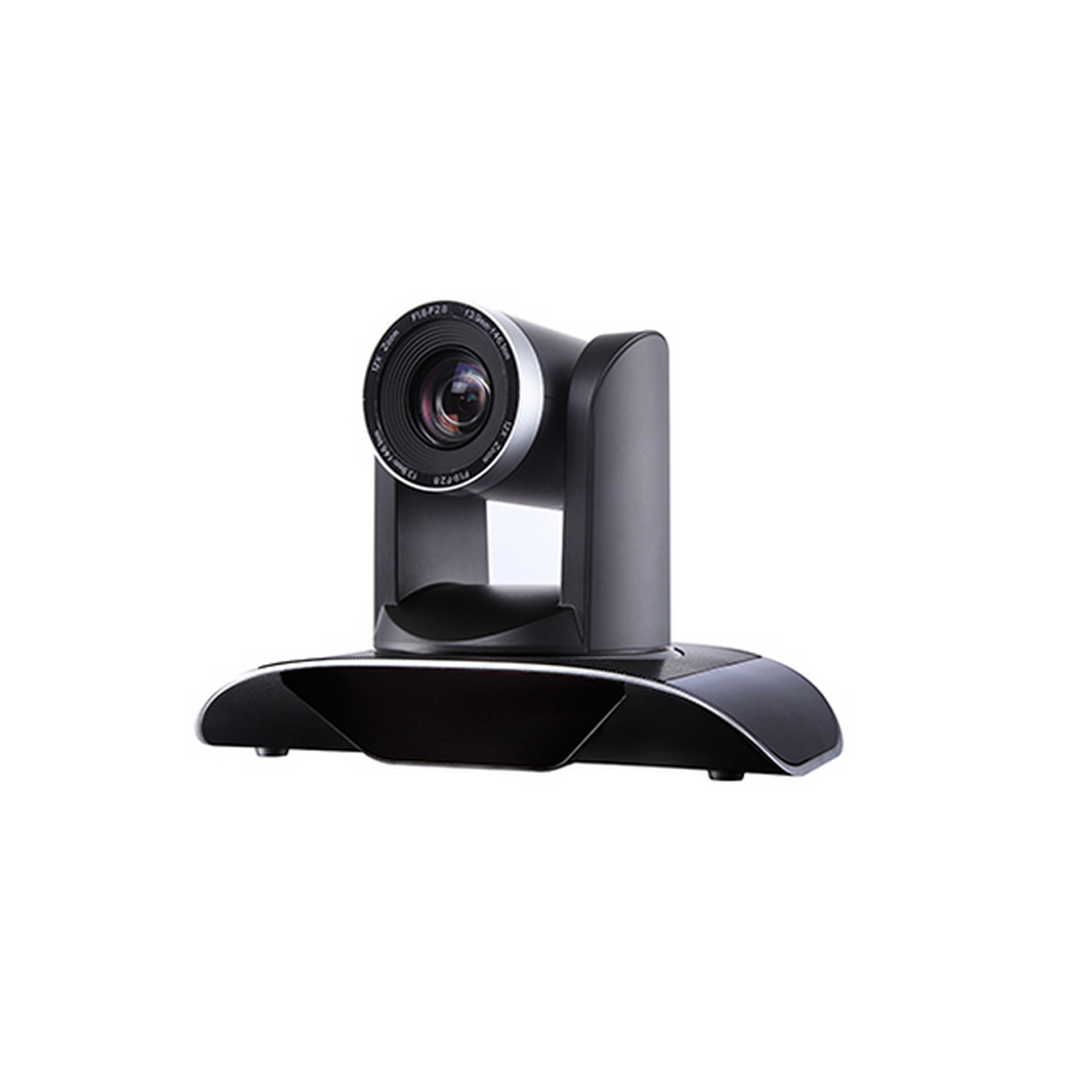

High-Definition PTZ Camera

  • Outstanding performance and various interfaces
  • Adopt advanced ISP processing technology and algorithms ensuring vivid and lifelike image effects
  • Uniform brightness, strong color hierarchy, high clarity, and good color reproduction
  • Supports H.265/H.264 encoding, making the picture smoother and clearer even under low bandwidth conditions
Model CAM-200
Camera, Lens
Image Sensor 1/2.8 inch high-quality 5-megapixel CMOS sensor
Output Effective Pixels 2.07 million, 16:9
Video Signal 1080P60/50/30/25; 1080I60/50; 720P60/50/30/25
Lens Optical Zoom 20x optical zoom    f=4.7~94mm
Viewing Angle 2.9° (narrow angle) to 55.4° (wide angle)
Aperture Coefficient F1.6 ~ F3.5
Digital Zoom X10
Minimum Illumination 0.5Lux(F1.8, AGC ON)
Digital Noise Reduction 2D&3D digital noise reduction
White Balance Manual/Auto/One-touch White Balance/3000K/4000K/5000K/6500K
Focus Auto/Manual
Aperture Auto/Manual
Electronic Shutter Auto/Manual
Backlight Compensation On/Off
Wide Dynamic Range Off/Dynamic Level Adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, Black and White Mode
SNR >55dB
Input/Output Interfaces and Supported Protocols
Video Interface DVI (convertible to HDMI), 3G-SDI
Image Stream Dual-stream output
Video Compression Formats H.265, H.264
Control Signal Interface RS-232, with loop-through RS232 output
Control Protocols VISCA/Pelco-D/Pelco-P;

Baud Rate: 115200/9600/4800/2400bps

Audio Input Interface Dual-channel 3.5mm line input
Audio Compression Formats AAC, MP3, PCM
Network Interface 100M Ethernet port (10/100BASE-TX), 5G WiFi (optional), supports network VISCA control protocol
Network Protocols RTSP, RTMP, ONVIF, GB/T28181
Power Interface HEC3800 power socket (DC12V)
PTZ
Horizontal Rotation -170°~+170°
Vertical Rotation -30°~+90°
Horizontal Control Speed 0.1~100°/sec
Vertical Control Speed 0.1~45°/sec
Preset Speed Horizontal: 100°/sec, Vertical: 45°/sec
Number of Presets Up to 255 presets can be set by the user (10 presets via remote control)
Others
Power Adapter Input AC110V-AC220V, Output DC12V/1.5A
Input Voltage DC12V±10%
Input Current 1A (max)
Power Consumption 12W (max)
Dimensions (W x H x D) 258mm*172mm*169mm
Weight (approx.) 1.54kg
Operating Environment Indoor
Remote Maintenance (Network Interface) Remote upgrade, remote reboot, remote reset
