Features:
● Preventing device from electronic shock by isolating loudspeaker line
● 4 independent channels enable up to 20A protection per loudspeaker line

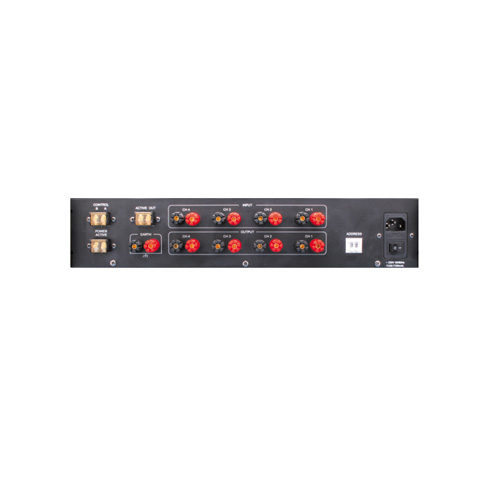

| MODEL | D-LTI4 |
| Input | 4 CHANNELS（CH1 ~ Ch4) 70V/100V audio signal |
| Output | 4 channels,70/100V,20A,audio signal,Active out: 0V signal |
| Lightning Protection | IEC529/EN60 529 protection grade satisfied: IP 20 |
| Overload Protection | 165-300V, peak |
| Rated Discharge Current | 30KA |
| Leak Protection Current | 10mA |
| Power Requirement | AC 220V ± 10% 50-60Hz; 24VDC |
| Dimensions | 89(H) x 483(W) x 350(D) mm |
| Net Weight | 7.90kg |
