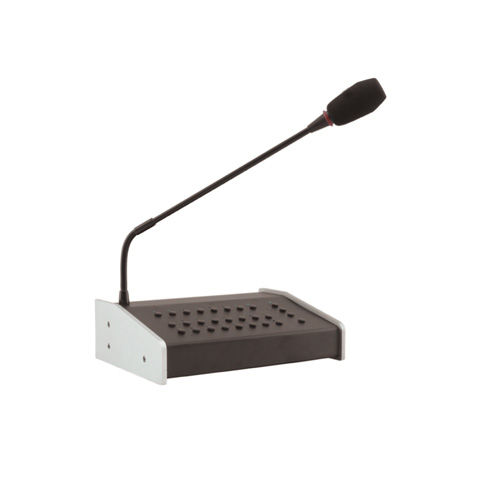

Remote Call Station

Features:
● Works together with D-PREC16
● Reliable control by firm hard button
● Can connect to additional paging mics
● Address selector provides for accessing additional paging selectors
● LINE IN for connection to audio source
● Control up to 8pcs of D-PREC16
● Balanced signal input for quality and distant transmission up to 600m

MODEL	D-PCS16
Mic Input	600 Ohms, 5mv un balanced
Line Input	10K ohms, 10V balanced
Frequency Response	MIC,Line: 60Hz -16kHz (+/- 3dB)
S/N Ratio	Better than 70dB
THD	Less than 0.1% at 1KHz
Zone Control	16 zones, Zone 1 to Zone 16, up to 128 zones w/ address selector
Controls	Volume control, 8 zone paging selectors,
	16 channel selectors,all on,all off, power switch,
	address setting,1 tone controller,1 MIC controller
Indicators	Indicators for 16 zones and 8 speaker selectors, MIC on/off
Protection	AC Fuse: 0.5A
Power Consumption	5~10W
Power Requirement	AC 220V ± 10% 50-60Hz
Dimensions	80(H) x 75(W) x 205(D) mm
Net Weight	2.30kg
Gross Weight	3.20kg

Remote Call Station
