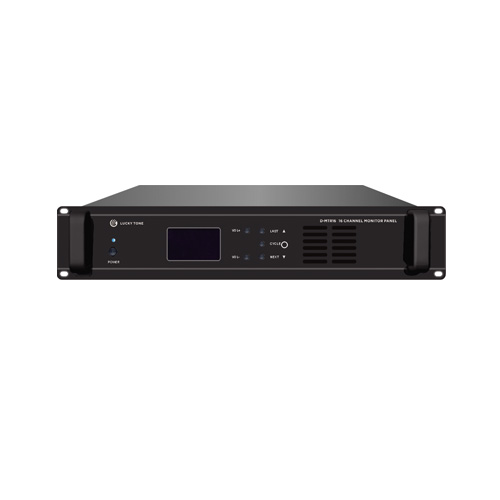

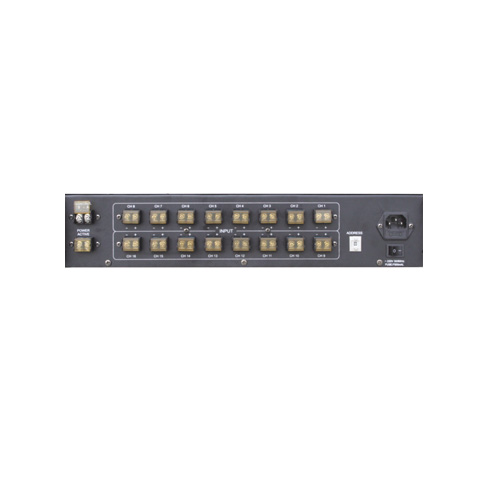

16-channel Monitor Panel

Features:
●  Monitor up to 16 loudspeaker lines with built-in high fidelity loudspeaker
●  With LCD display to show level meter of 16 loudspeaker lines
●  Volume of monitoring can be adjusted
●  Menu control over loudspeaker line selection and volume level

MODEL D-MTR16
Input 70/100V audio signal
Trigger Out 0V signal for Power activation
Monitor Speaker Built-in stereo HiFi full range speaker, power>500mW
Controls 1 Power switch,2 volume controls
Protection AC Fuse: 0.5A
Volume Level 7 levels, controllable by D-COM central processor
Power Consumption 10~15W
Dimensions 89(H) x 483(W) x 350(D) mm
Net Weight 5.10kg
