Features:
● Main/Backup Power Amplifier switch
● Automatically switch to backup amplifier when amplifier failure is detected
● It can manually operate for power amplifier upgrade and maintenance
● Manage 10 amplifiers and backup strategy is programmable
● Each channel has a volume control, manual switch, and status indicator

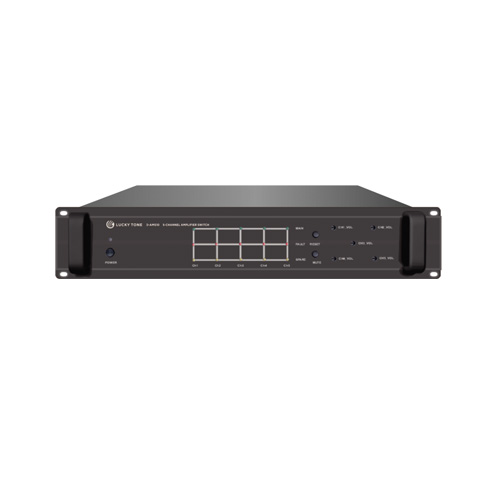

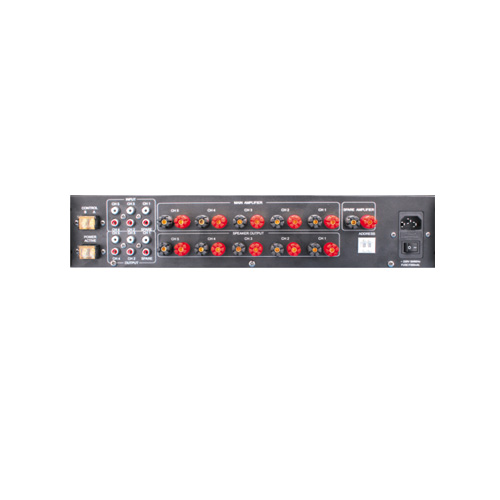

5-channel Amplifier Switch
| MODEL | D-AMS10 |
| Input | 6 audio source channels; 5 main amplifier channels |
| Output | 5 speaker channels |
| Check Cycle | Input: 50mV 20mS; Output: 100mV 20mS |
| Channel Switching Cap | 150V/20A, audio signal |
| Controls | 1 power switch,1 reset button,1 alarm tone control, |
| 5 volume controls,1 address setting dip | |
| Indicators | POWER, CH1 ~ CH5 NORMAL indicators,CH1 ~ CH5 |
| FAULT indicators,CH1 ~ Ch5 SWITCH indicators | |
| Protection | AC fuse: 0.5A |
| Power Requirement | AC 220V ± 10% 50-60Hz; 24VDC |
| Dimensions | 89(H) x 483(W) x 350(D) mm |
