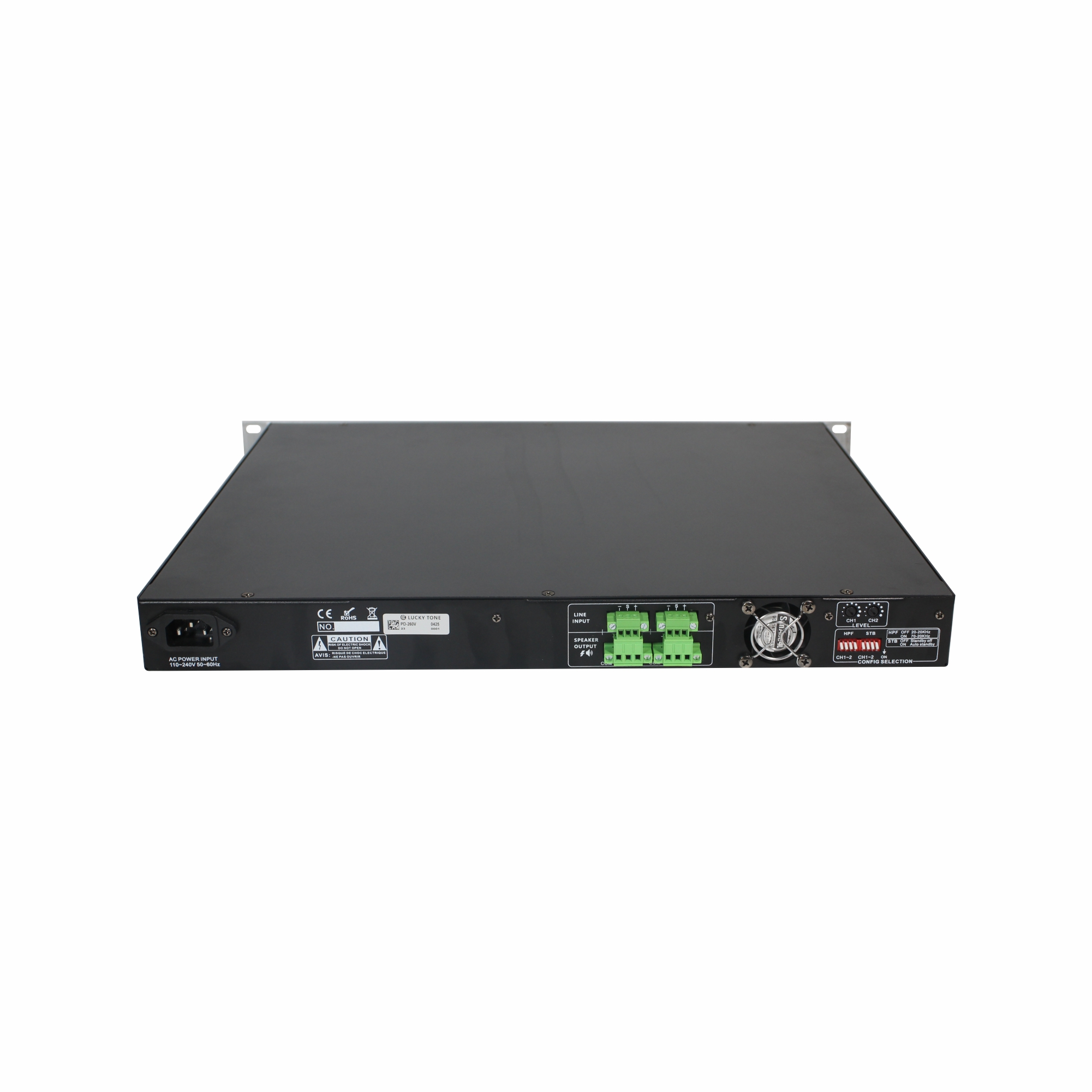

2-channel Class D Power Amplifier

Highly flexible class D amplifiers available at 60W, 120W, 240W, 350W and 500W RMS Power,  2 channels respectively, and equipped with phoenix inputs for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.

Features

High efficient at 80 to 90% conversion rate
Light weight and compact 1U design
Grounding connection
Reliability. High quality electronic components and each channel has separated isolation to ensure one fail will not affect others.
Individual volume control for each channel
LED level meter
Speaker output short circuit protection

Model PD-260 V2 PD-2120 V2 PD-2240 V2 PD-2350V2 PD-2500V2
Description 2 Channel Class-D Power Amplifier
Rated Power Output 2x60W 2x120W 2x240W 2x350W 2x500W
Speaker Output 100V
Frequency Response L/H Cut OFF 20Hz-20KHz (+1/-2dB)                                                                             L/H Cut ON 70Hz-10KHz (+1/-3dB)
Input 0.775V, 0dBu, balanced phoenix connector by four channels
Input Impedance 10KΩ
THD <0.1% (1KHz/-3dBv, 100W)
S/N Ratio >80dB
Crosstalk >60dB, 1KHz, Max output
Power Consumption 160W 280W 520W 750W 1050W
Power Supply AC 100-240V, 50-60Hz
Dimension 484x420x44 mm
Weight 6.6Kg 7.0kg 7.3kg 7.8kg 8.2kg
