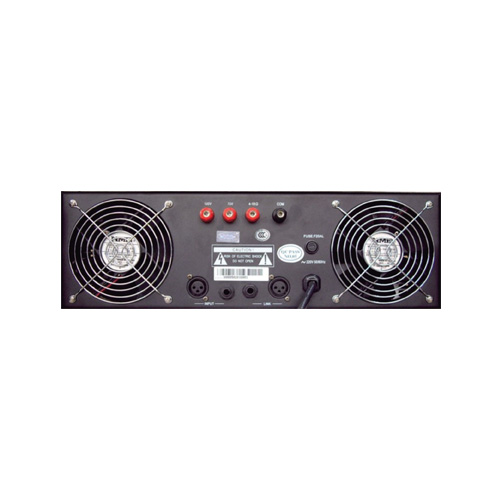

High Power Amplifier (1000W/1500W)


This range of amplifier is designed for commercial and industrial grade public address application. With efficiently components, it delivers 1000 to 1500 watts of clean, reliable audio for the most demanding public address applications. Rugged and over-built to give years of dependable service, they are equipped with massive torrodial power transformers, extensive heat-sinking and fan cooling, protective circuits such as over-temperature, short circuit, RFI, clip, overload and soft start.
●  Flexible power rating of 1000W and 1500W
●  Master Volume control in the front
●  100V, 70V and 4-16 Ohms transformer isolated speaker outputs
●  Combination XLR/RCA Line In and Line Out connectors
●  LED status indicators
●  Speaker output short circuit protection

MODEL PA-1000 PA-1500
Rated Power Output 1000W 1500W
Output Regulation Less than 3 dB (no load to full load)
Output 775V, 0dB, XLR and phone jack
Frequency Response 50 – 18,000 Hz, +/- 1.5dB
THD Less than 0.5% at 1kHz (1/3 Rated Power)
S/N Ratio Better than 105dB
Slew Rate 40V/Us
Controls Volume control and power switch
Cooling Internal 12VDC fan, extensive heat sinking
Indicators Power, Clip, Signal, Protect, and Temp LEDs
Protection AC Fuse: 20A
Current limiter, short circuit and thermal protection circuits
Power Consumption 1350W 2000W
Power Requirement 220-240V AC, 50/60 Hz
Dimensions 133(H) x 483(W) x 366(D) mm
Built-in Dimensions 3U rack 19 inch
Carton Dimensions 185(H) x 520(W) x 435(D) mm
Net Weight 25.00kg 27.00kg
Gross Weight 27.50kg 30.00kg
Finish Panel: steel plate, black
Case:  steel plate, black
