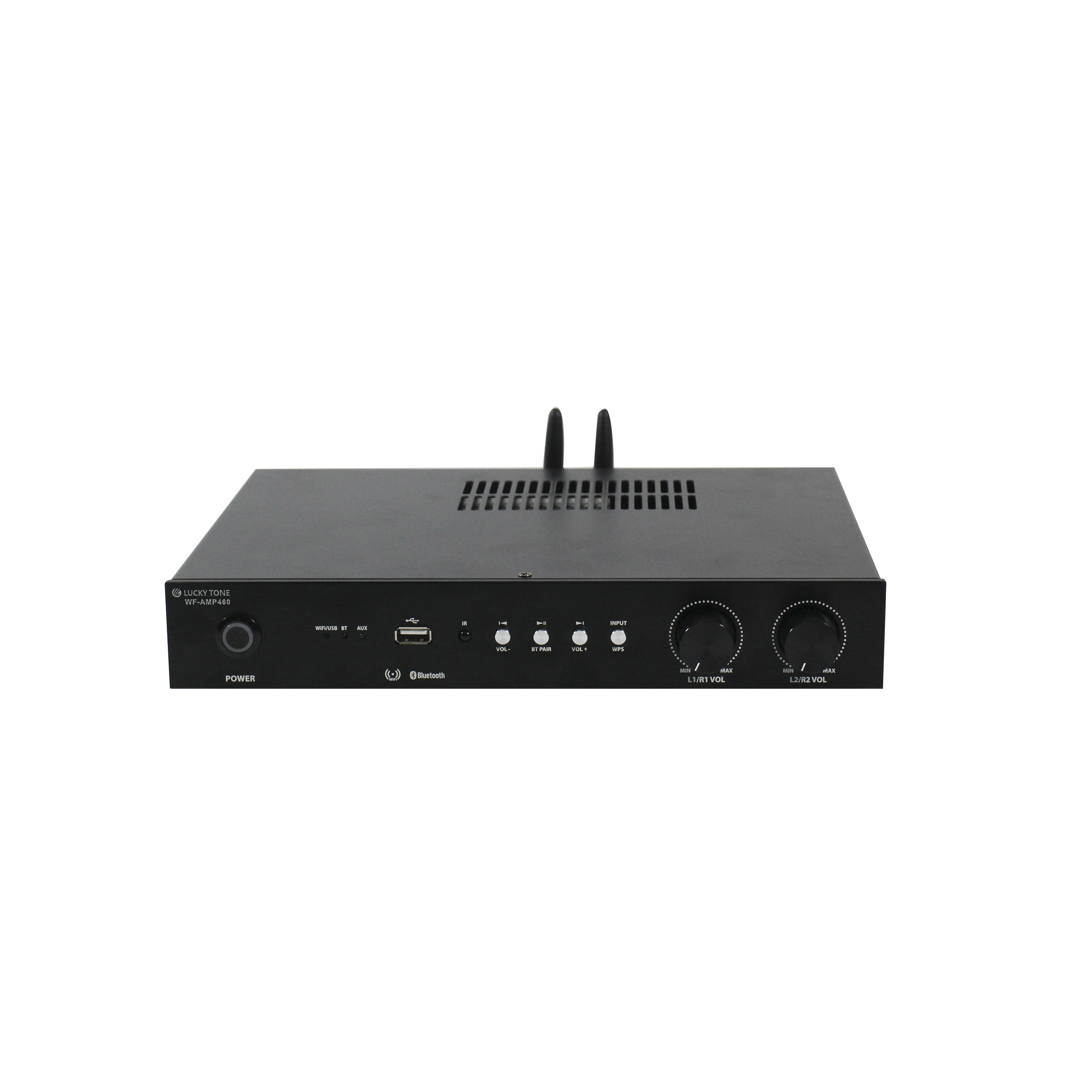

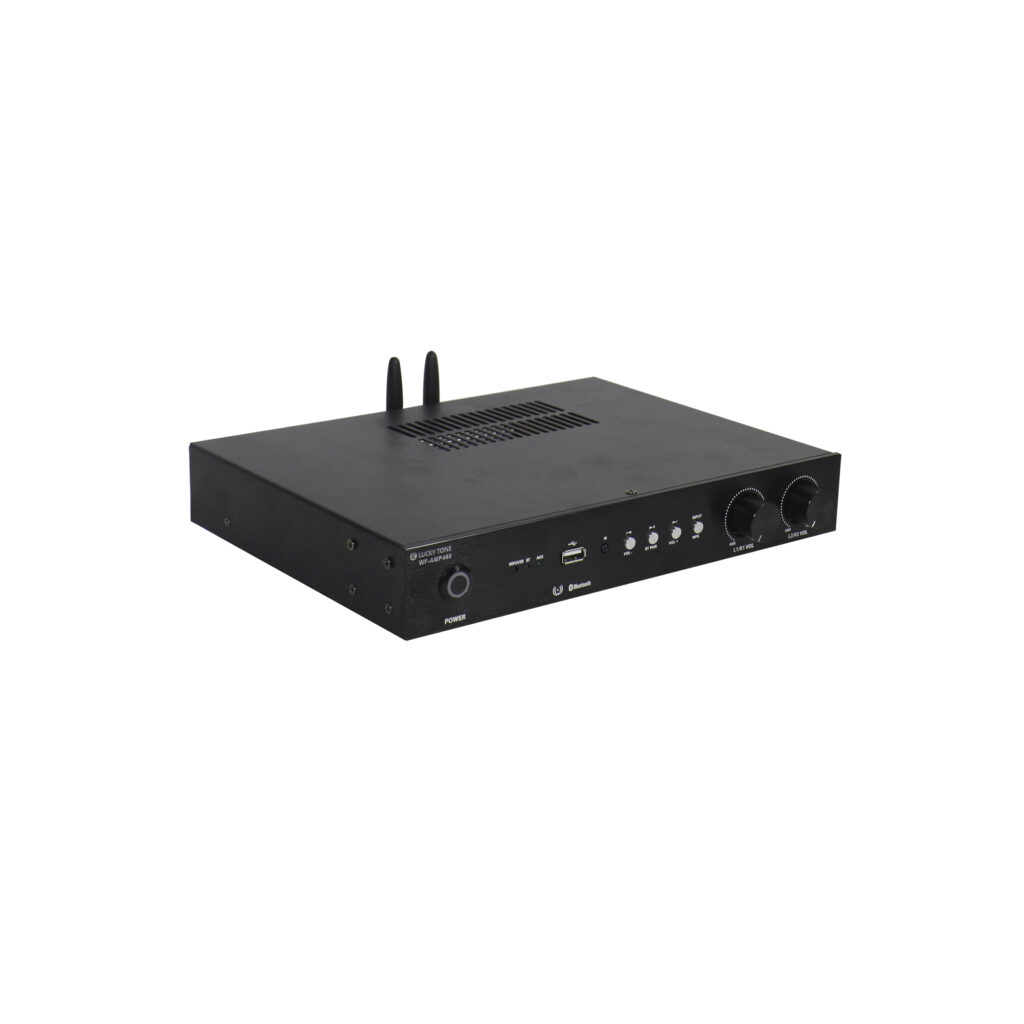

4-channel Wi-Fi Audio Amplifier

WF-AMP460 Series is a compact 4 x 60W amplifier with WiFi, Bluetooth, USB, and AUX inputs. It is designed to turn the traditional passive speakers into multi-functional wireless speakers.


Allows wireless music streaming via WiFi or Bluetooth
With 4 x 60W stereo speaker outputs
With USB reader and AUX input for more audio sources
Supports online music, Internet radio, Airplay, DLNA
Convenient music management by WiiM APP
Optional 1U rack mount ear


Ordering code
4-channel WiFi & Bluetooth Audio Amplifier 4*60W
4-channel Bluetooth Audio Amplifier 4*60W
Rack mount ears (pair) for WF-AMP460, BT-AMP460

Model WF-AMP460 BT-AMP460
Output Power 60Wx4 @4ohm;              30Wx4 @8ohm 60Wx4 @4ohm;                         30Wx4 @8ohm
Input voltage 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
Audio inputs WiFi, Bluetooth, USB, AUX Bluetooth, USB, AUX
Line input sensitivity 500mV 500mV
SNR 94dB 94dB
Frequency range 20-20KHz 20-20KHz
Impedance 4-8 ohm 4-8 ohm
Amplifier Class Class D Class D
Material Aluminum alloy Aluminum alloy
Color Black Black
Product dimensions (LxWxH) 280x200x44mm 280x200x44mm
Packing dimensions (LxWxH) 425x285x375mm               (5pcs per carton) 425x285x375mm                         (5pcs per carton)
