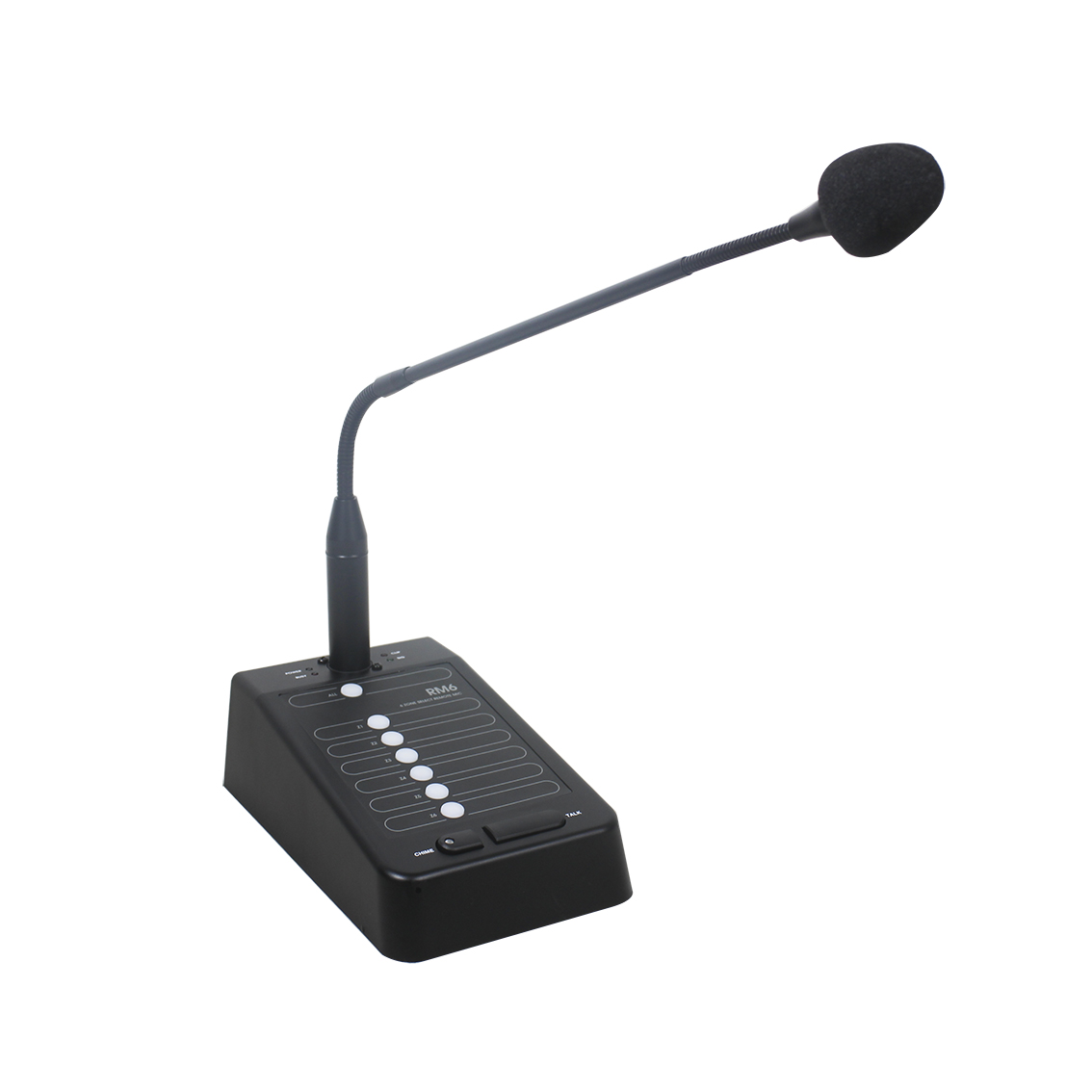

6 Zone Paging Microphone for MPRO Series

RM-6

Controls

Zone selector switch, All & 6 Zone. Talk & Chime switch.

Level control volume. Slide switch for Lock.

Connectors

RJ45 to connect with Model MPro-120 / 240 / 360.

Indicators: Power, Signal , Clip.

MODEL RM-6
Rated Output Level / Impedance 0dB / 600 Ω Balanced
Input sensitivity / Impedance -36dB / 20kΩ Balanced
Frequency Response (-1dB)  80Hz – 15kHz
T.H.D < 0.1%
Hum & Noise > 90 dB
Number of Zone 6 Zone
Weight (Net) 1.2 kg
Dimensions (W x H x D) 140 x 60 x 205mm (only body)
