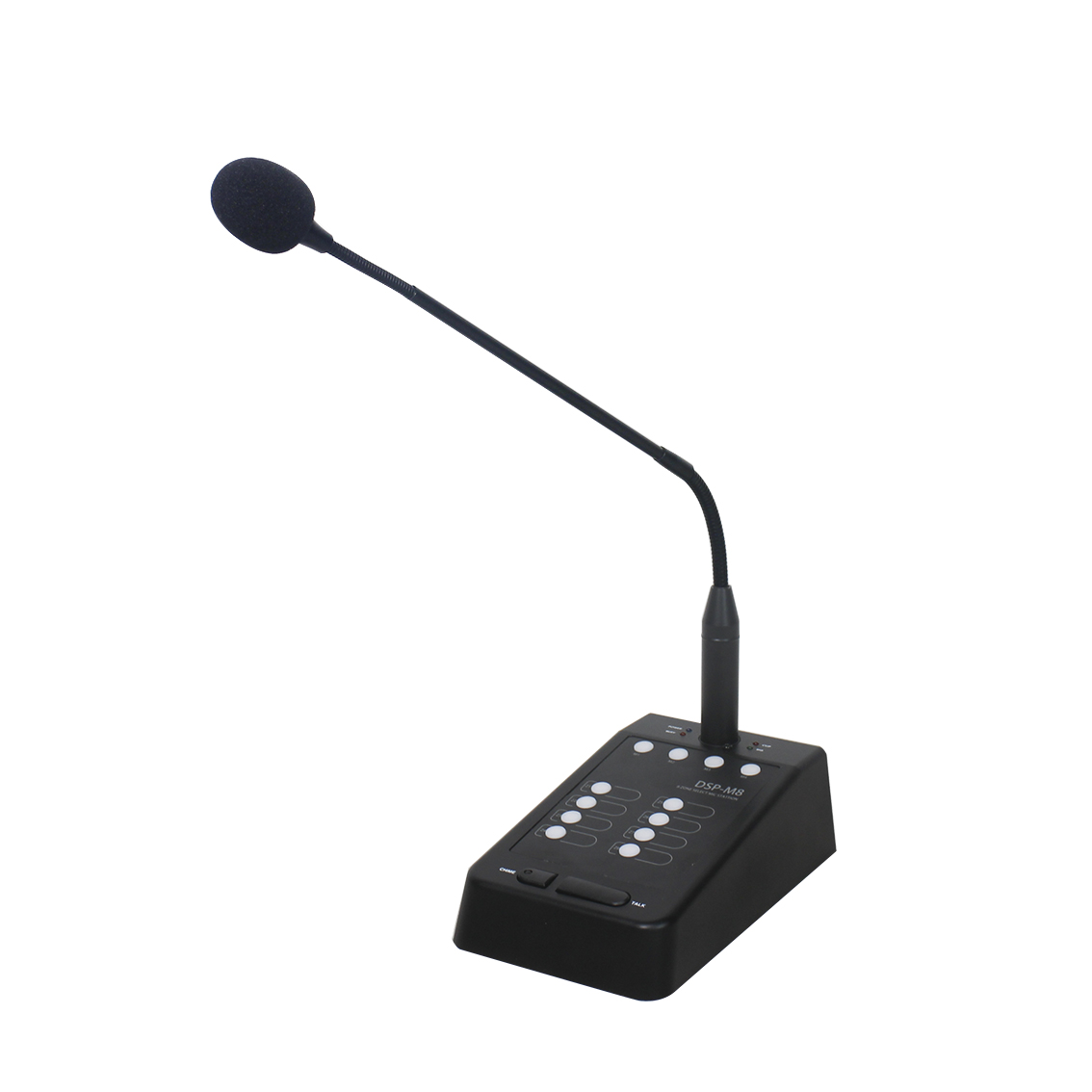

8 Zone Paing Microphone Station

Feature:

8 ZONE Remote Microphone Station for DSP-880N+,DSP-880M+,DSP-880ND+

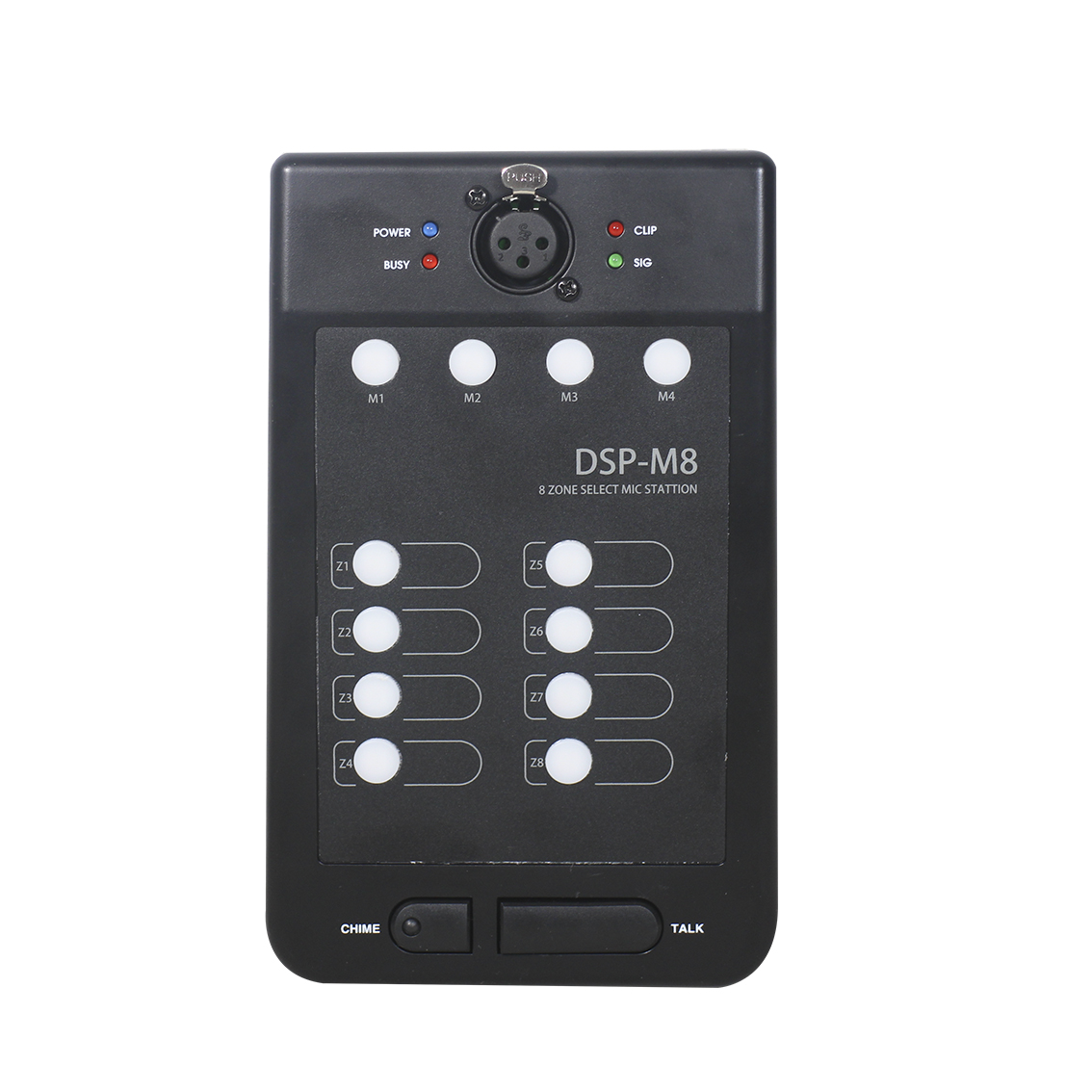

Controls

Zone selector switches for Z1~Z8. Talk & Chime on/off.
Level control volume for MIC & Chime.

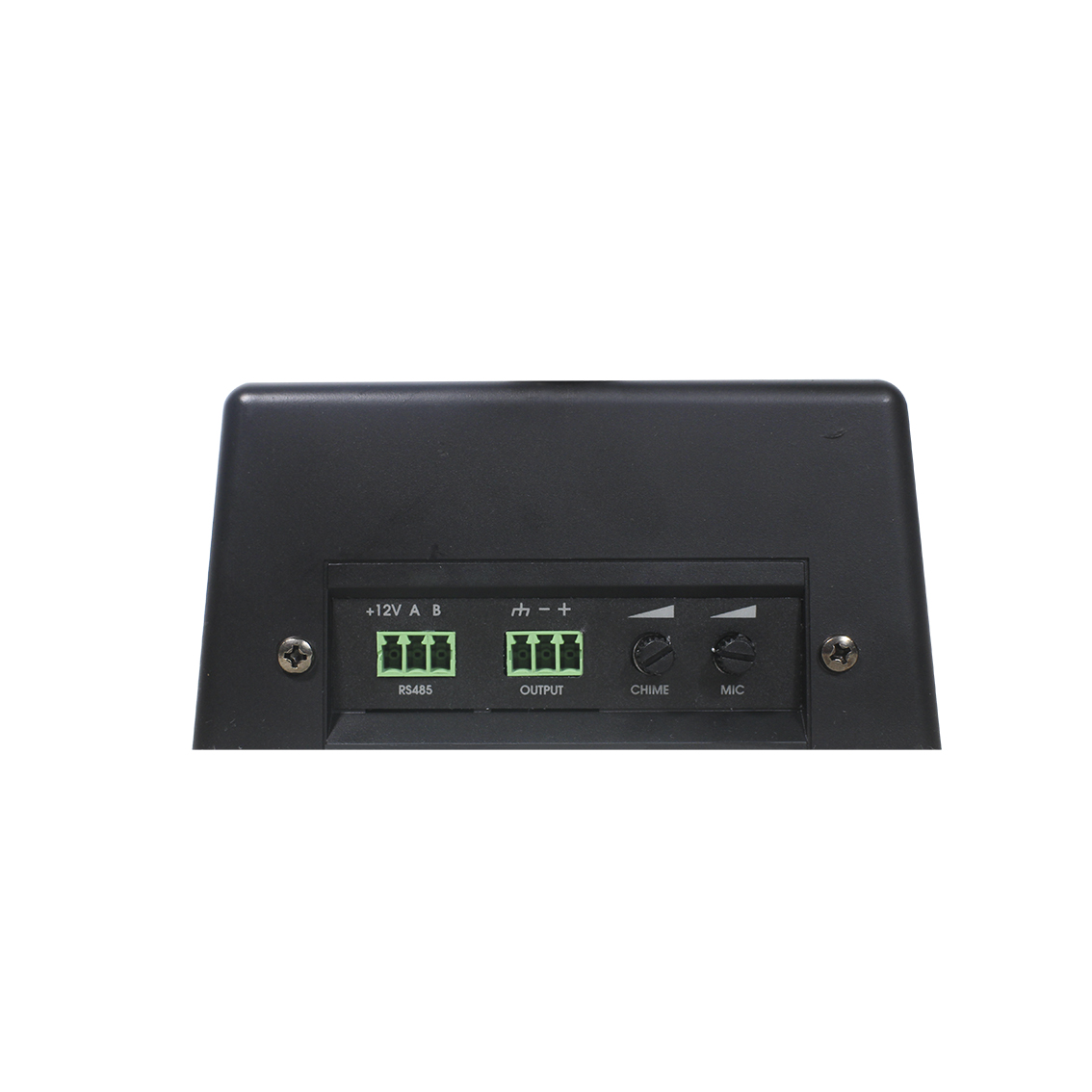

Connectors
RS485 communication with DSP-880N+,DSP-880M+,DSP-880ND+.
DC input.

Indicators
Power, Busy, Signal, Clip.

MODEL DSP-M8
Rated power level/Impedance 0dB/600ohm balanced
Input sensitivity/Impedance -36dB/20kohm balanced
Frequency response(-1dB) 80Hz-15KHz
T.H.D less than 0.1%
Hum&Noise more than 90dB
Number of Zone 8 zones
Net Weight 1.2kg
Dimensions(WxHxD) 115x60x195m(only body)

Download

DSP-M8
