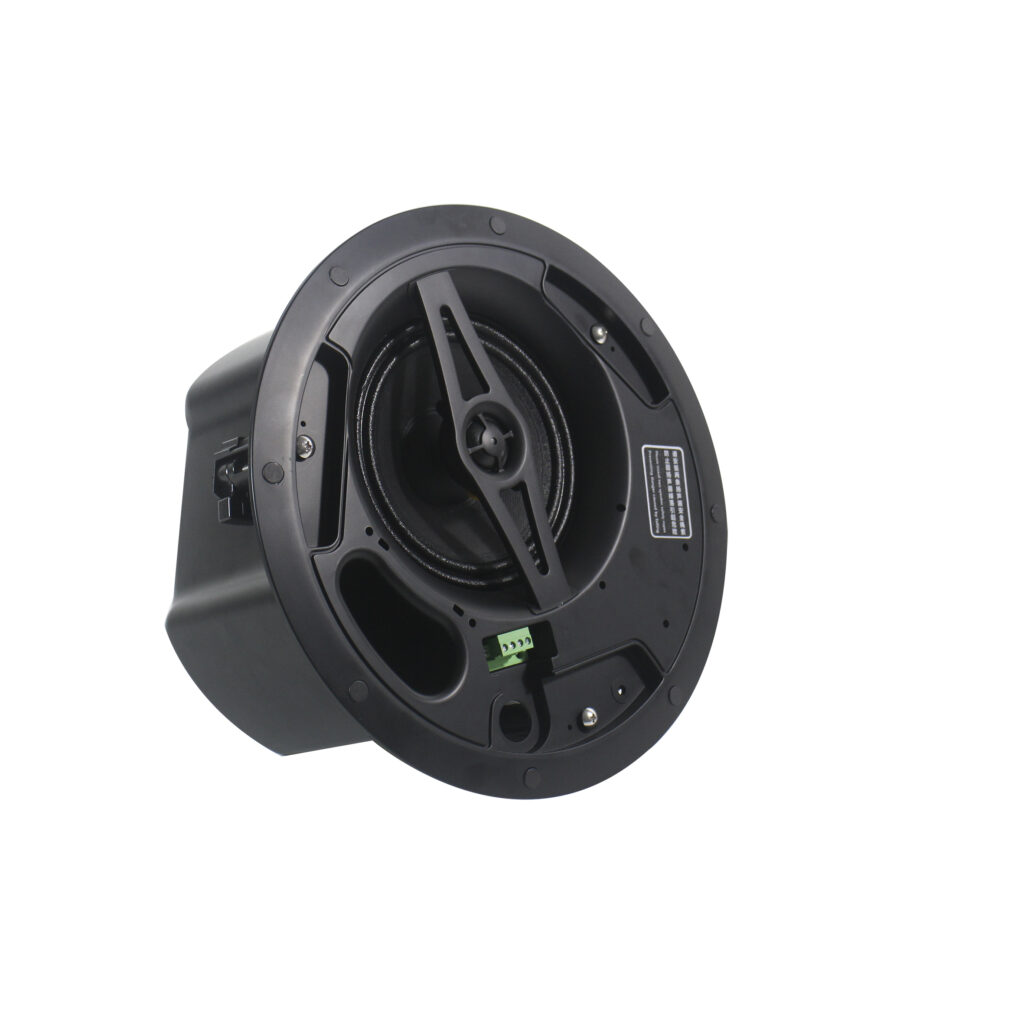

Dante 6-Inch Coaxial Ceiling Speaker with POE and DSP

DANTE DP 660R POE with DSP



Description:

With coaxial two-way drivers, the 60-watt loudspeaker offers rich lows and clear, intelligible highs-along with premium aesthetics that complement any commercial sound installation. DANTE DP 660R POE with DSP features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75Hz-20kHz.



Features:

  • High-Quality Audio: The rimless Dante coaxial ceiling speaker with DSP and PoE delivers exceptional audio quality, ensuring clear and immersive sound reproduction in any space.
  • Seamless Integration: Designed with a rimless and discreet profile, this speaker seamlessly blends into any environment, making it an aesthetically pleasing choice for both residential and commercial installations.
  • Dante Compatibility: Featuring Dante networking technology, this speaker allows for easy integration into audio-over-IP systems, simplifying audio distribution and control in large-scale installations.
  • Digital Signal Processing (DSP): The built-in DSP capabilities enable precise tuning and optimization of audio output, ensuring that sound is tailored to the specific acoustics of the room or venue.
  • Power over Ethernet (PoE): With PoE support, this speaker can be powered and connected through a single Ethernet cable, simplifying installation and reducing the need for additional power sources, making it a cost-effective choice.



Ordering Code:

DANTE DP 660R POE with DSP: Dante 6-inch Coaxial Ceiling Speaker with POE power supply 60W, Rimless front with safety wire, with DSP

DP660V: High performance 6-inch Coaxial Ceiling Speaker with 100W 8OHM; 100V line 80W/40W/20W/10W, Rimless front with safety wire

Model DANTE DP 660R POE with DSP DP660V
Speaker Size 1×1” tweeter + 1×6.5” woofer 1×1” tweeter + 1×6.5” woofer
Power at 8ohm 60W (240W, Peak) 100W (400W, Peak)
Power at 100V / 80W/40W/20W/10W
Power at 70V / 40W/20W/10W/5W
Sensitivity(1M/W) 91dB 93.1dB
SPL 108dB 111.1dB
Frequency Range 75Hz~20KHz 75Hz~20KHz
Input Interface RJ45 /
Audio Transmission Protocol Dante /
Audio Routing Control Dante Controller /
Power Input 802.3af/802.3at/802.3bt compatible /
Material Iron+ABS Iron+ABS
Cutout Size Dia 176mm Dia 176mm
Product Size Dia 316*197mm Dia 316*197mm
Net Weight 4.5kg 5.2kg
Packaging Weight 6.3g 7kg



×
