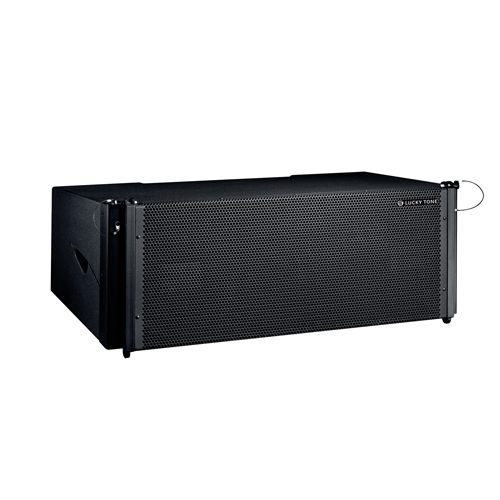

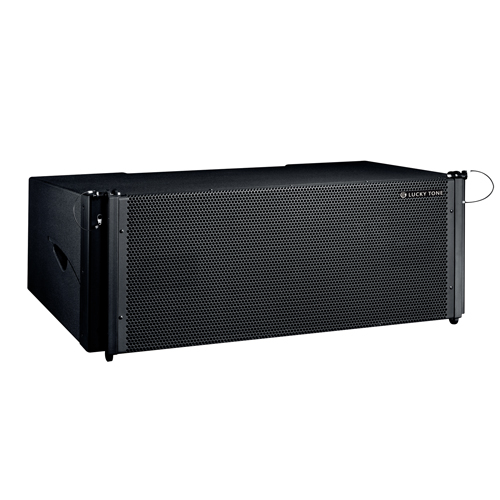

Line Array Speakers & Subwoofer

Features:
●  With precise installation kit for fast, reliable and economic installation to the right angel
●  Compact and light weighted
●  2 Hydra plane wave acoustic generator
●  3 Frequency divide system

Ideal set recommends 2 lines + 1subwoofer combination!

MODEL LA-212 LA-212SUB
LF Power 450W continuous,1500W peak 100-500Hz, 8 ohm 100W continuous,3000W peak 60-100Hz, 8 ohm
HF Power 200W continuous,600W peak 1.6k-8kHz, 8 ohm, mid at 300W/900W N/A
SPL (1W/1M) 95/99/105dB Single box for low/mid/high 100dB Single Box
Max SPL@10M 129dB 4 Box Array 130dB 2 Box Array
Freq.Response 70Hz-17.5KHz @ -3dB; 60Hz-18KHz @ -10dB 40Hz-400Hz @ -3dB; 30Hz-400Hz @ -10dB
Dispersion Angel 120 Degree 0 Degree
Product Size / Weight 1150 x 560 x 365 mm / 52 Kg 1150 x 560 x 435 mm / 61.5 Kg
Connectors 2 x NL8 Speakon 2 x NL8 Speakon
Enclosure Material Poly Wood 18mm Poly Wood 18mm
Components 12″ * 1 LF, 6″ * 2 MF, and 3″ * 2 compressed HF 15″* 2 LF
