Controls

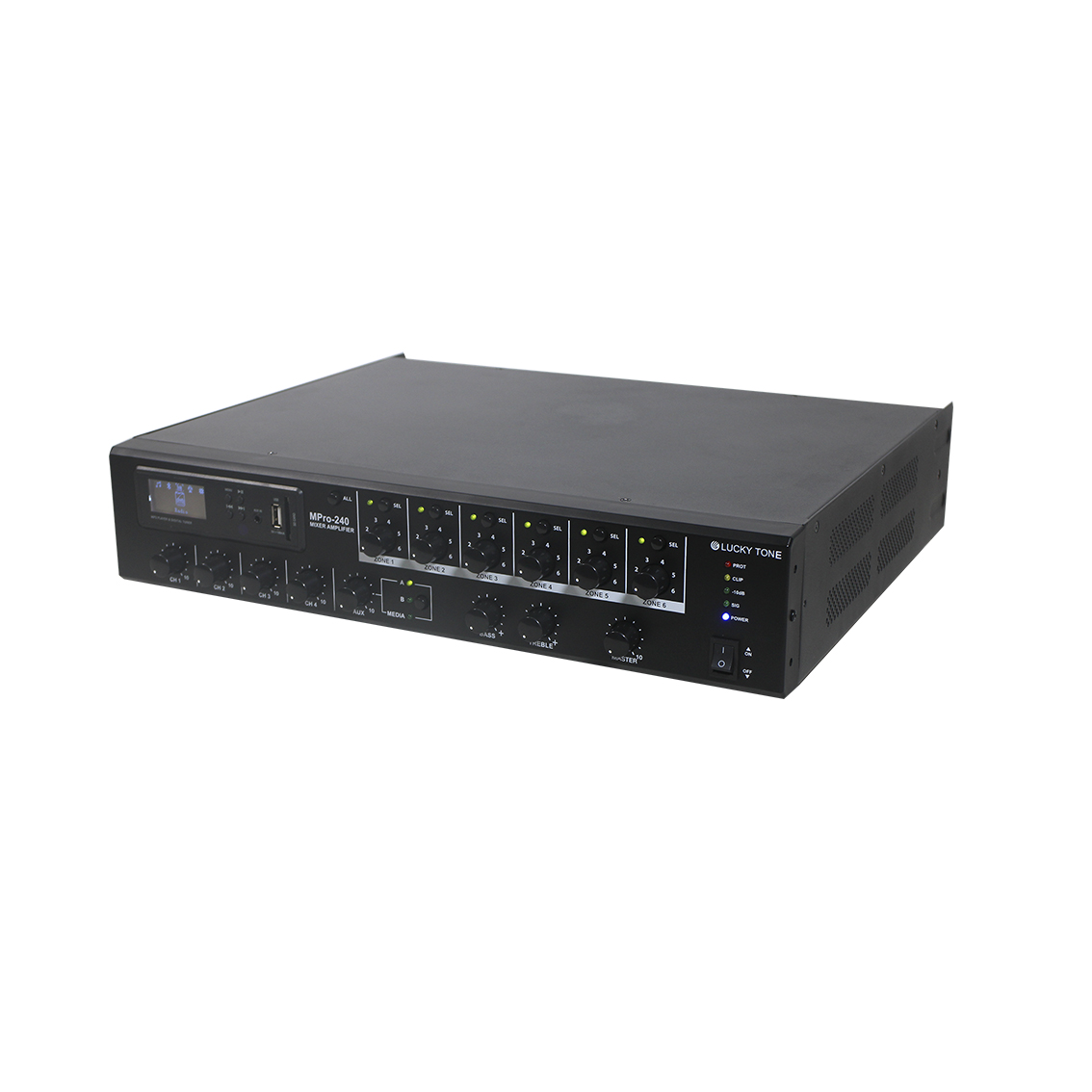

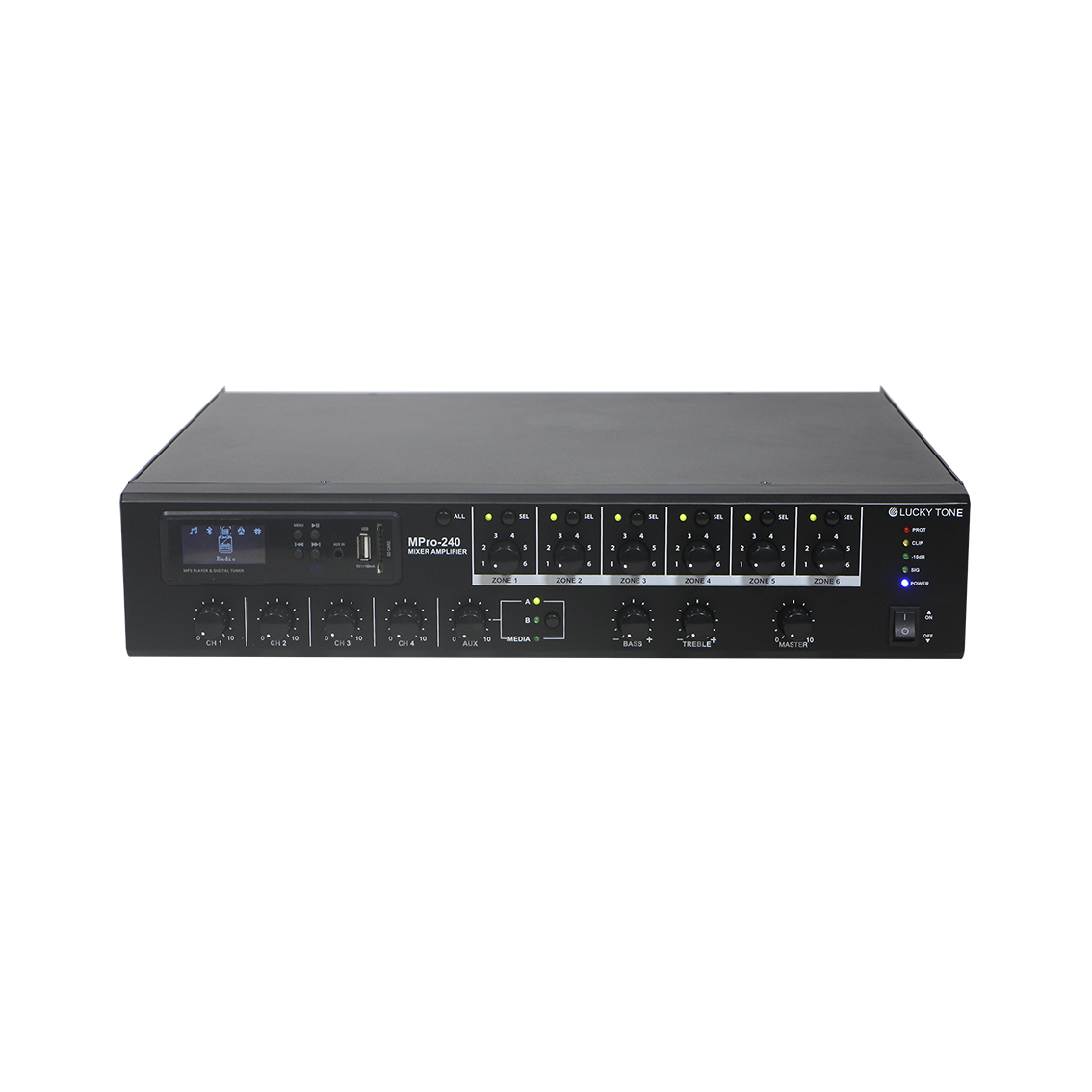

Front : 4 Input Channel Volume Control and 1 selectable source input Volume control,
Master Volume Control, 6 Zone Speaker Selector with 6 step attenuator.

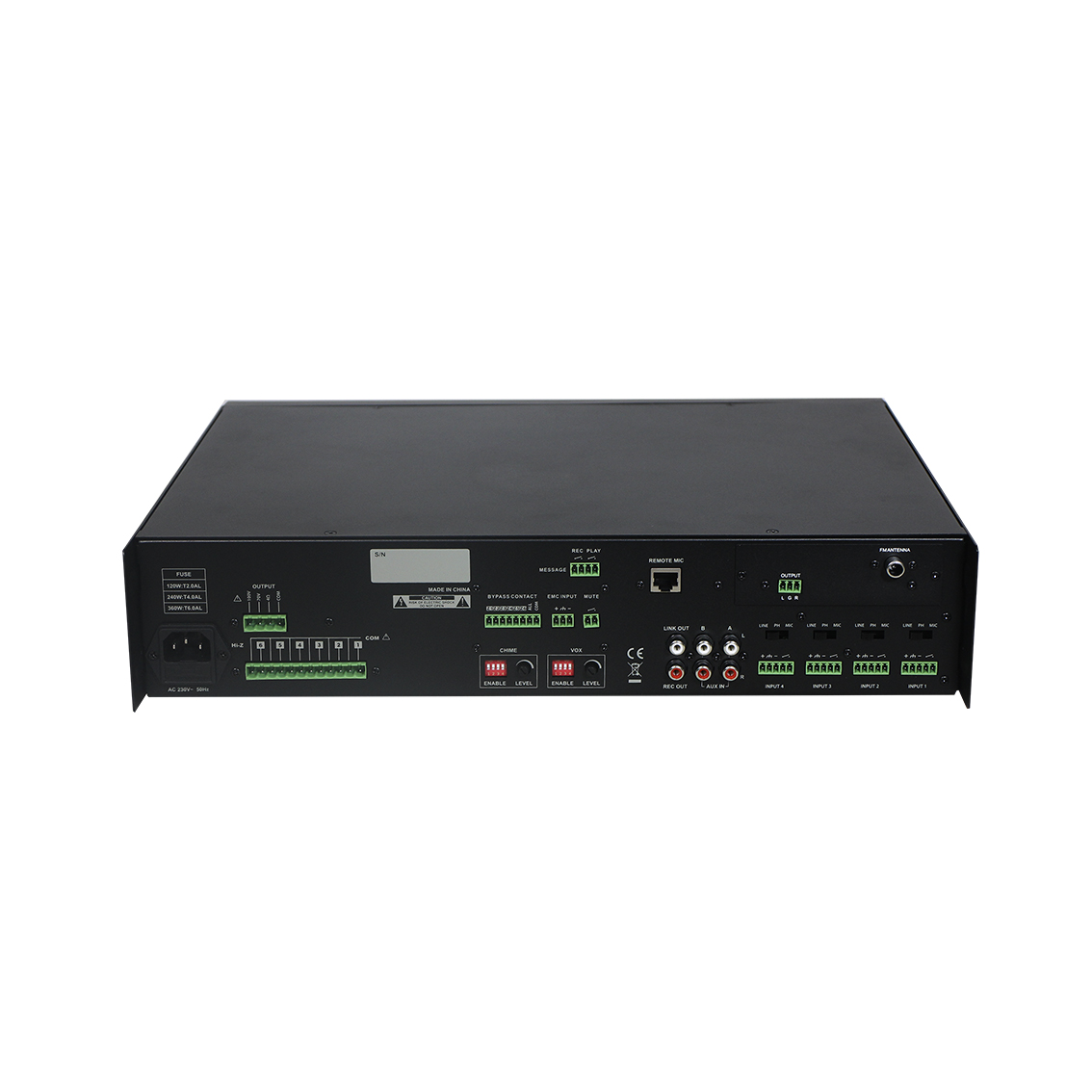

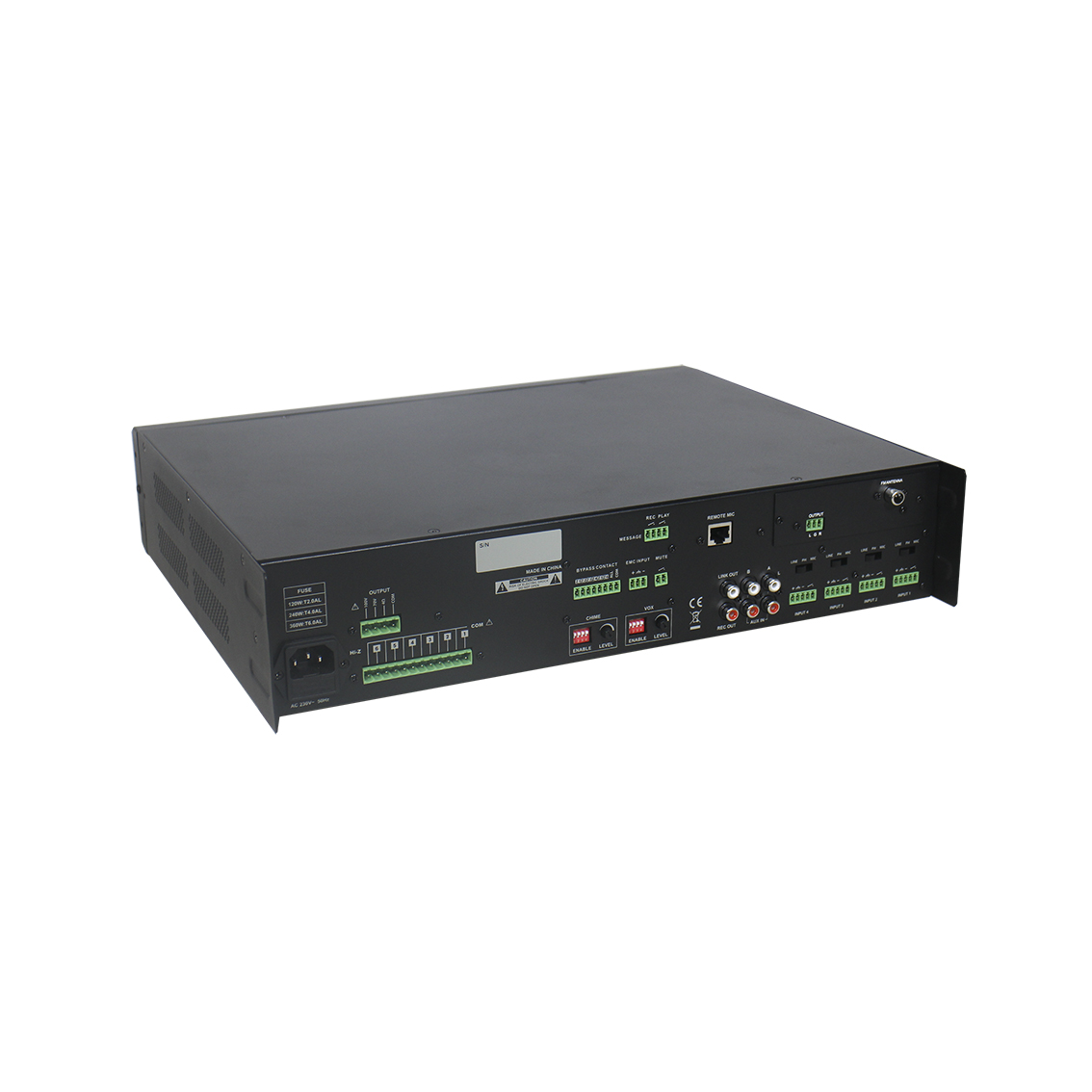

Rear : Talkover Switch ( VOX ) & Phantom Power Switch for Channel 1-4. Chime enable with volume control.
Bypass contact input & system mute.
Connectors
Input : Channel 1 – 4 : Electronically Balanced with chime switch.
Aux : Dual RCA.
Remote Mic : Rj45.
Emergency Alarm input : Euro bolck.
Output : Speaker Output : Euro Bock . Attenuated and Switched 6 CH, Direct Output 4Ω, 70V, 100V.
REC Out & Link out : RCA.
Contact : Ext. Chime : Euro block.
MUTE : Euro block.
Media player module : MPlayer A / MPlayer B / MPlayer C.
Indicators : SIG, -10dB, CLIP & Protect. Zone selector.
Protection : Output Current Limiting, Thermal Protection & DC Offset Protection.
Cooling : Convection Cooling.
Option : Rack Mount Kit.
New Class D Desktop Mixer Amplifier
| MODEL | Mpro 130 | Mpro 240 | Mpro360 | Mpro480 | |
| Rated Power (RMS) | 130W | 240W | 360W | 480W | |
| Input sensitivity / Impedance | Channel 1-4 | -36dB / -10dB Selectable / 20 kΩ Balanced | |||
| Aux | 0dB / 20 kΩ Balanced | ||||
| Remote Mic | 0dB / 20 kΩ Balanced | ||||
| Output level / Impedance | Speaker Hi-z | 100V(83Ω),70V(42Ω) | 100V(42Ω),70V(21Ω) | 100V(28Ω),70V(14Ω) | 100V(21Ω),70V(10Ω) |
| Output Low-z | 22V (4Ω) | 31V (4Ω) | 38V (4Ω) | 43V (4Ω) | |
| Rec Out | 0dB / 600Ω Unbalanced | ||||
| Link Out | 0dB / 600Ω Unbalanced | ||||
| Frequency Respose (-3dB) | 65Hz – 18kHz | ||||
| T.H.D (1kHz, Rated Power) | <1% | ||||
| Signal to Noise Ratio | >80dB | ||||
| Tone Control | ± 10dB | 100Hz , 10KHz | |||
| Power Source | AC 115 / 230 V, 50/60Hz | ||||
| Weight (Net) | 9 kg | 10kg | 11kg | 12kg | |
| Dimensions (W x H x D) | 420 x88 x 320mm | ||||
