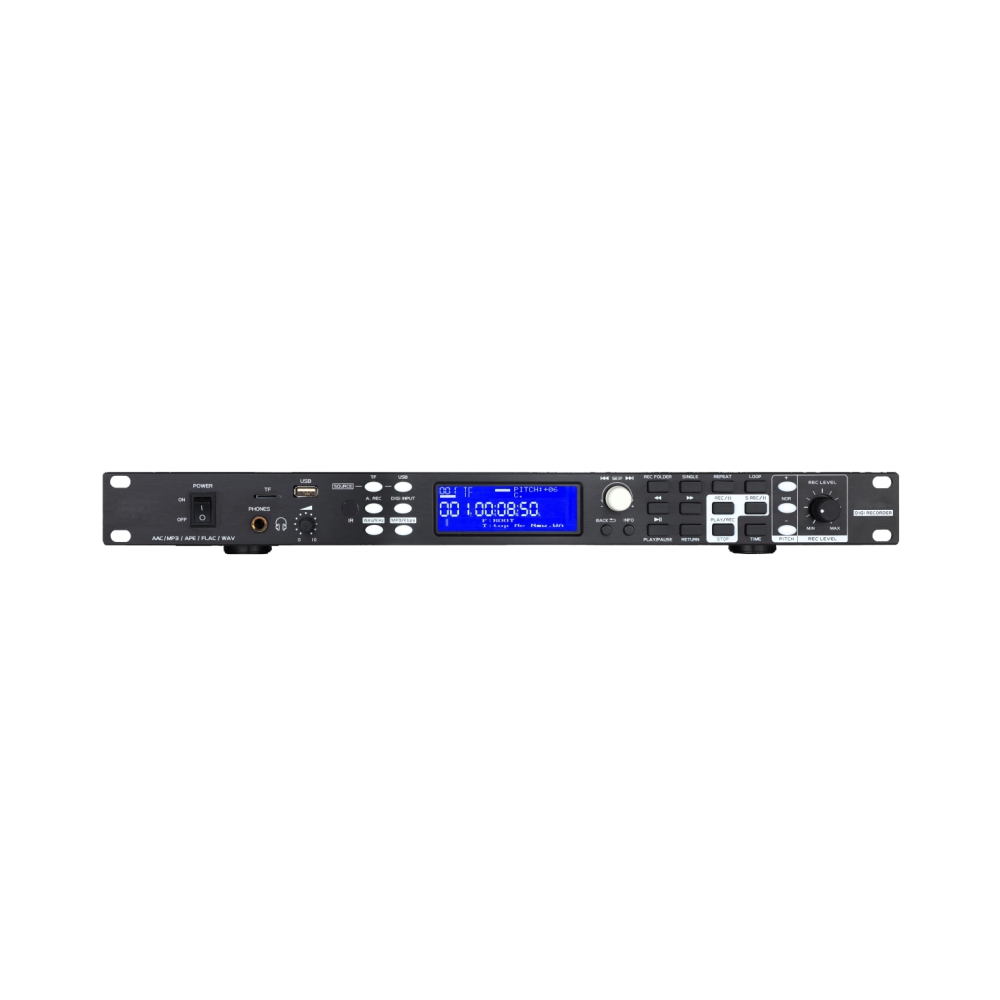

Professional Conference System Recorder

LC-RCD

Professional Design
1U compact rack body size
All New Design Main Control Board
USB and TF recording and playing
Hard disc is avalible (FAT 32)
Accept AAC MP3 WAV APE FLAC playing
Recording file can support WAV or Mp3
Wav record support 48KHz or 96KHz
MP3 record support 128 192 256 320 bit
Clear LCD display
Mono transfer stereo audio switch button
0.01sec rapid record functions
Record level manual adjust functions
Pitch +-24 functions
Auto record functions
Digital or analog record switch
Mic input record socket with vol
Folders and tracks easy search by panel
Rapid into Record folder button
Single and continuous functions
Repeat 1 and all functions
Phones output with volume
Time button functions (elapsed remain)
90V-260V switching power Supp

MODEL LC-RCD
Power supply 90v-260v (50hz / 60hz)
The power consumption 20w – 30w
SNR 98 dB
Frequency response 20hz – 20khz
Audio output RCA,PHONES,XLR, DIGITAL
Audio input RCA,XLR . DIGITAL . MIC
Sound specifications  USB,TF
The total harmonic distortion >0.01%
Dynamic Range > 98dB
Distortion >0.01%
Frequency 96KHz
Size 483mm * 44mm * 210mm
Weight 3 kg
