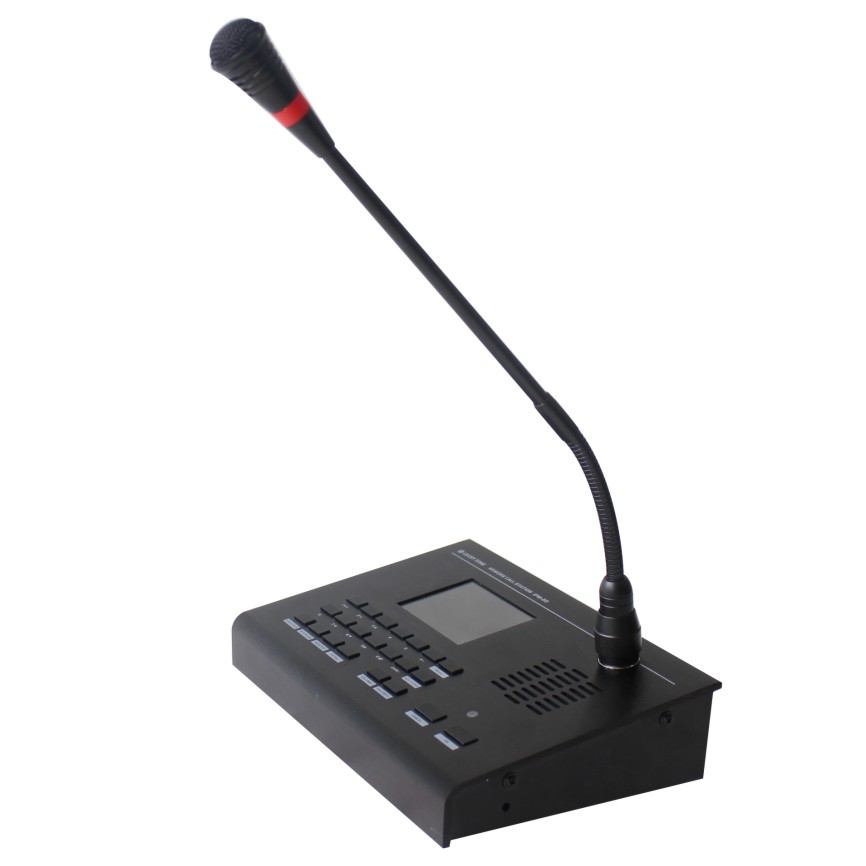

SIP Network Paging Microphone with Intercom


● Professional SIP Call Station to control and make announcement or Intercom to all devices in the system.

● Adopt high-speed industrial grade chip, startup in less than 1s

● Support zone paging, and the red indicator will light up when talking

● Built-in speaker for monitoring and intercom

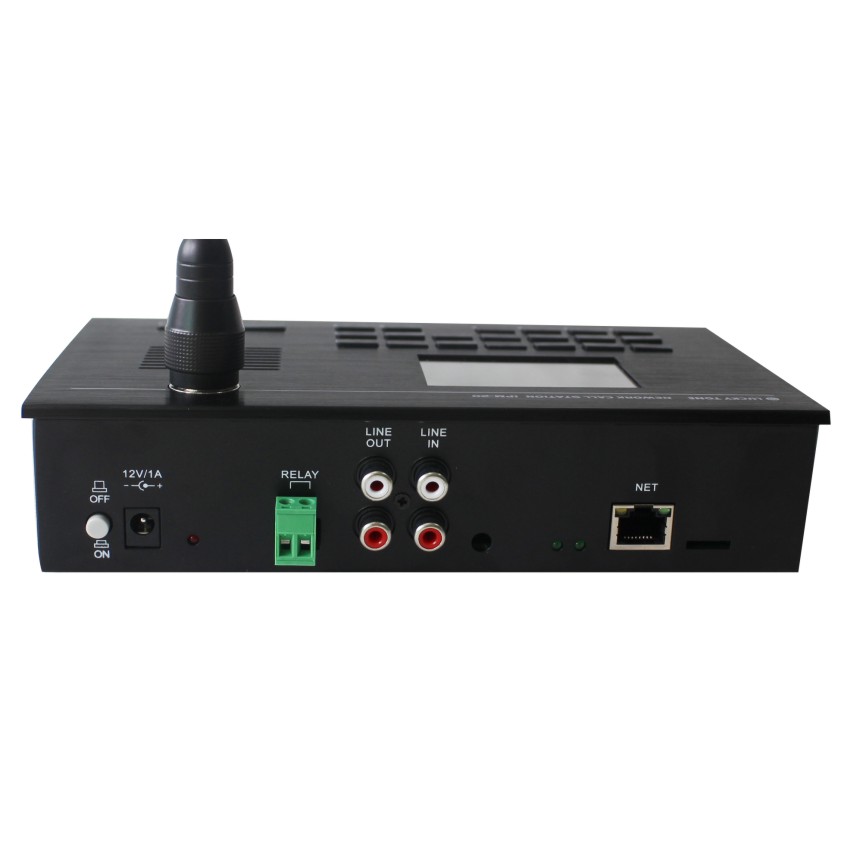

● With audio output for external active speaker

● With audio input for external audio source to target terminals

Network Communication Protocol TCP,ARP, ICMP, DHCP, UDP, DNS, IGMP
Network Interface 10/100Base-TX,RJ45
Frequency and Sampling Rate 8kHz-32 kHz, 16 bit
Line input 2000mvpp
Microphone Frequency Range 70Hz~12.5KHz
Operating Temp. 0~65°C
Screen TFT 2.8” LCD
Power Supply DC 12V
Dimension 210 x 145 x 55 mm
