System Manager

A rugged design professional controller where system server and user interface installed to manage the whole system over TCP/IP network

With 15 or 17 inch industrial grade touch screen with easy control of the entire system

Functioned with advanced PA features including time schedule broadcast management, paging console, zone broadcast, etc. via user friendly interface.

To show status of working of all devices

Timed scheduled broadcast

Real-time broadcast of external source via A/D converter

8 Units height of the standard 19 inch rack

Media storage management

Access control

MODEL E-SMR 15 / E-SMR 17
Screen size 15 inch/17 inch
Screen color TFT24 bit true color
Control mode 1024*768 resolution LCD touch screen
Ambient temperature 5℃-40℃
Relative humidity ≧ 75%
Motherboard New industrial grade Intel industrial mainboard

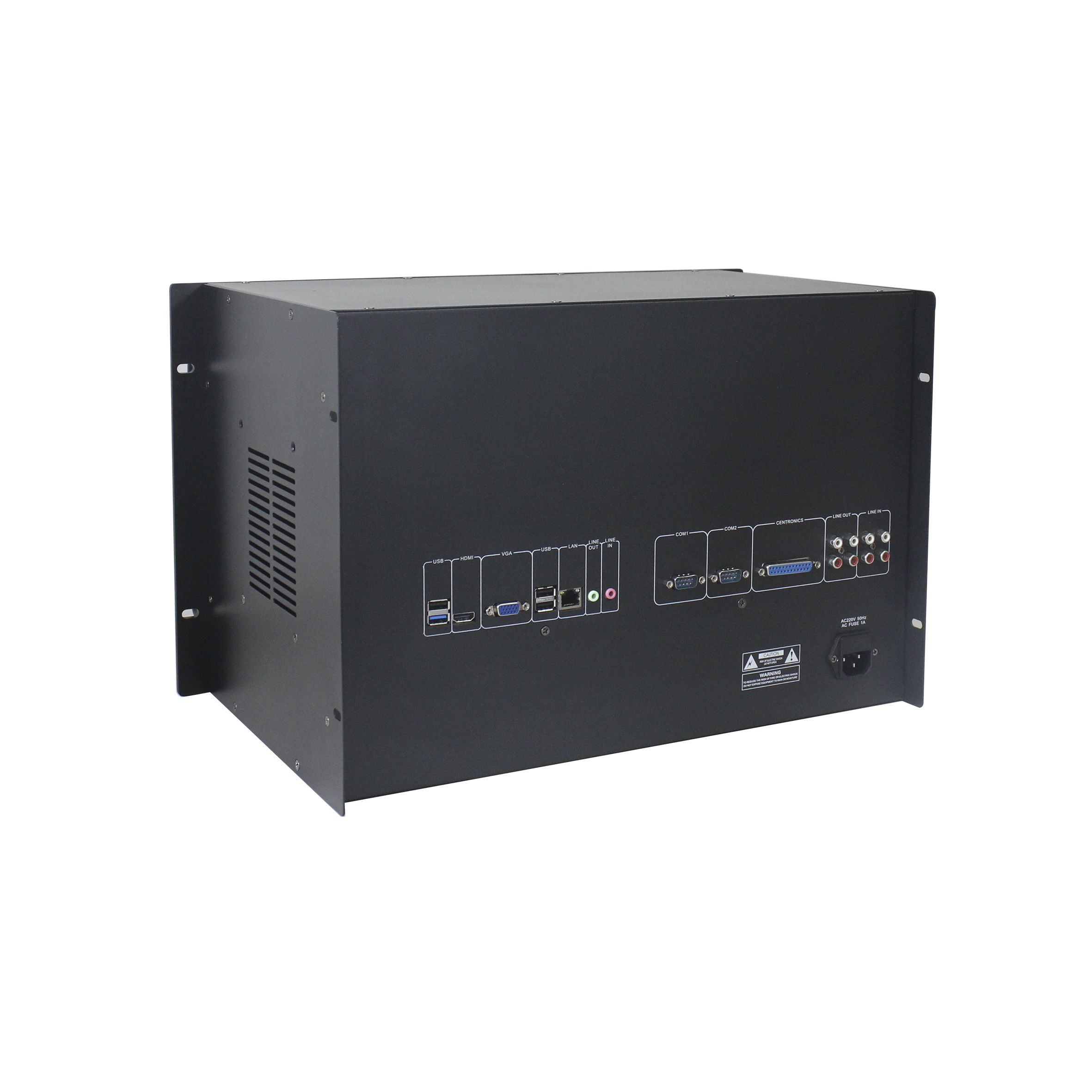

Standard interface 1×LAN network port; 6×USB; 2× serial port;
1× parallel port; 1×VGA; 1×HDMI; 4× lotus input;
4× lotus output; 1×3.5 input; 1×3.5 output
Hard disk 64G SSD
Memory DDR3 4G (the capacity will increase continuously due
to continuous product upgrades)
NIC mainboard integrated network card
Graphics card mainboard integrated graphics
Sound card mainboard integrated sound card, high-definition audio
CPU dual core 2.4GHz
Dimension 485*335*320mm(W*H*D)
Packing size 560*380*380mm(L*W*H)
Maximum power consumption 80W
Normal power ≤40W
Other DVD drive; keyboard; mouse
