VHF Tour Guide System

This wireless tour guide system applies the stable and reliable wireless technology to analyze the difference available frequencies and picks the most suitable one with least disturbance for transition of audio signal. It digitizes the audio signal to process and modulation before transmit. Receiver will scan the signal via identification verifying, read the transmitter frequency, process and signal and convert to the analog original sound. It is a economic yet power full system suitable for various of applications.

Features:
●  Stylish design and small in size
●  Digital, DSP technology and with radio function
●  Totally 44 sets can be used in the same place
●  RFID software, radio frequency identification to prevent interference
●  Unlimited receivers using at the same place
●  Standard grey, optional in Red and Blue color

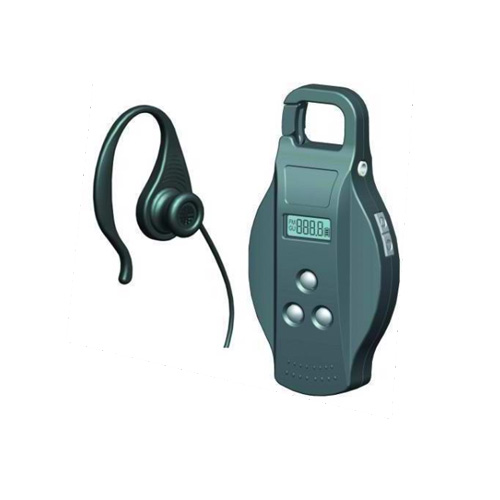

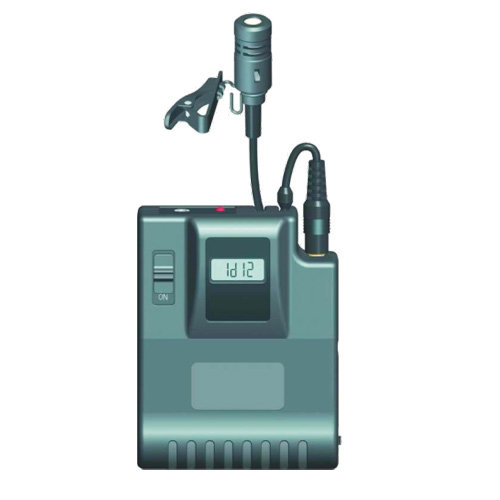

MODEL GD-100T Transmitter MODEL GD-101R Receiver
Frequency Range VHF 216-230MHz Frequency Range VHF 216 ~230MHz
Channels 44 Channels 44
Adjustable ID 99 Adjustable ID 99
Stabalized Type PLL Stabalized Type PLL
Working Type F3E Frequency Deviation ±75K
Frequency Deviation ± 75 S/N Ratio 55dB A weighted
Transmitting Rated Power ≤10mV Receiving Sensitivity 2μV
Subharmonic Main Wave <40 dB Frequency Response 100~15KHz
Capsule Type Condenser Display LED 17*5
Directivity Ultra Cardioid Operation Range 30~80M
Input Pressure ≤130dB Power Supply NiMH AA 1.2V*2
Frequency Response 100~15KHz Battery Operation Time 10 Hours
Display OLED 17*5 Antenna Headphone Cable
Operation Range 30~80M Headphone output 5mV
Power Supply NiMH AA 1.2V*2 THD <0.5%
Battery Operation Time 10~15 Hours Size & Weight 105*53*22mm, 55g (without Battery)
Antenna Ground Electrode Temperature Range -10~50°C
Headphone output 5mV
THD <0.5%
Size & Weight 85*65*40mm, 155g (without Battery)
Temperature Range -10~50°C
