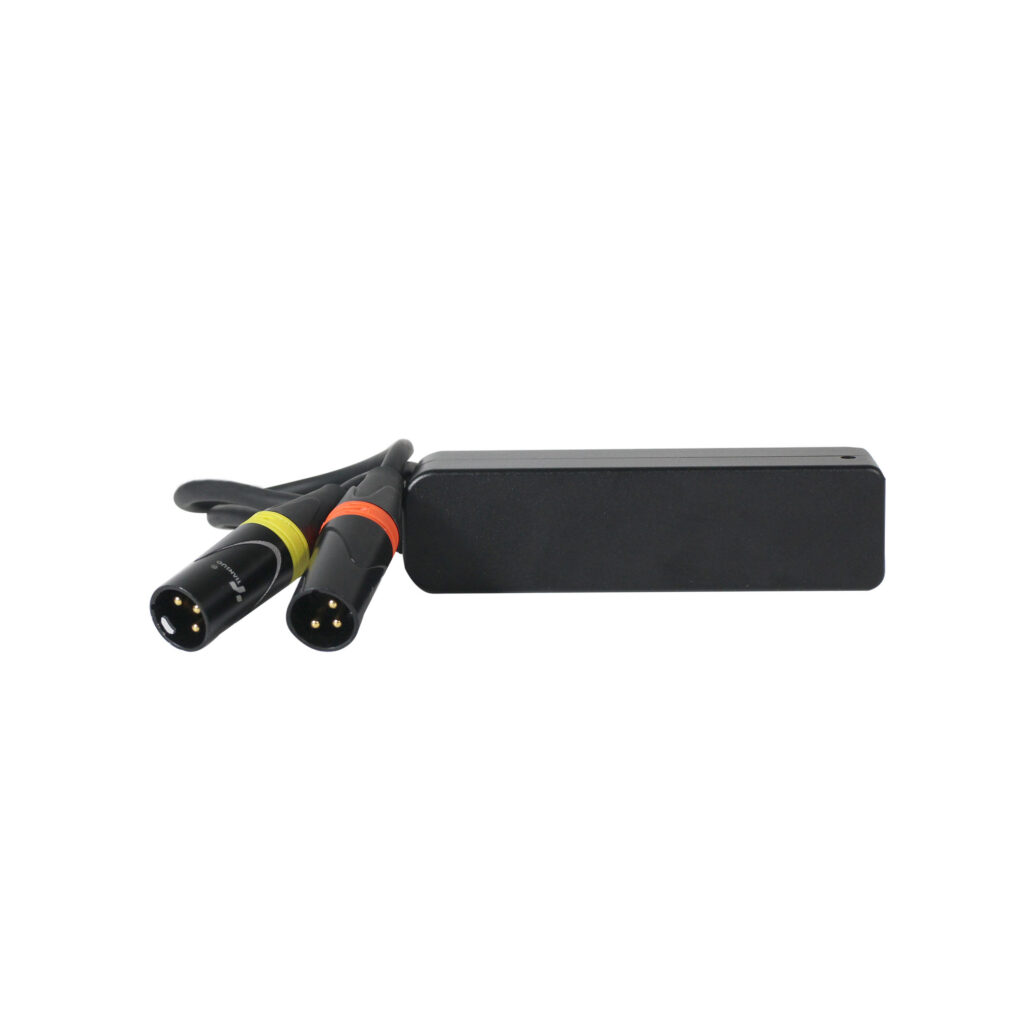

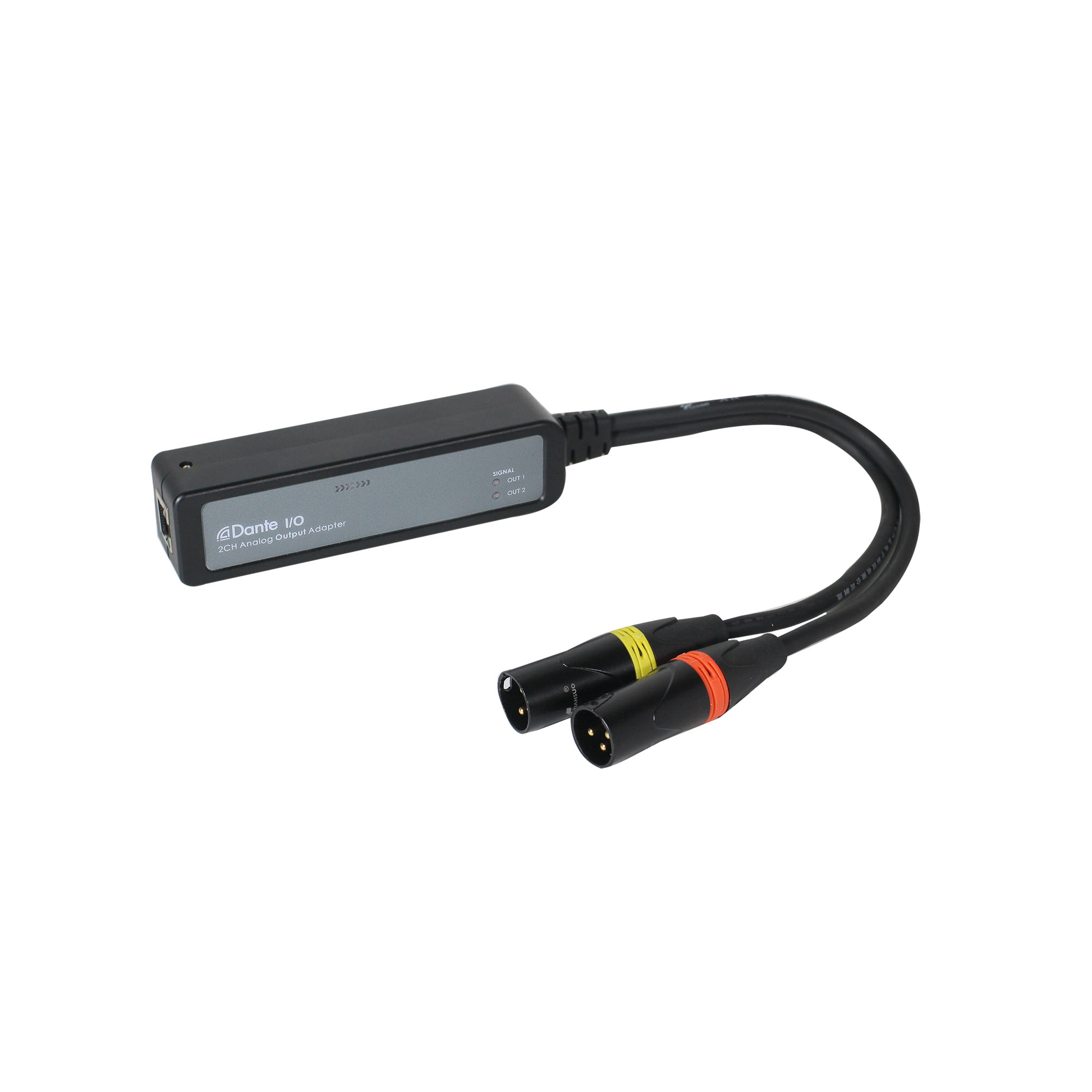

2-Channel Dante Converter

Convert 2 channels of analog line input signals to a Dante network
High Resolution 24 Bit Analog to Digital Conversion
AES67 compliant
Powered by Power over Ethernet switch or a PoE injector (802.3 af/at class1) or DC 5V via Micro USB connector

MODEL DO22(Dante to Analog)
Maximum Output Level 18dbu
Dynamic Range 116dB
THD+N 0.001% at 1kHz 4dBu
Signal-to-noise Ratio 116dB
Frequency Response 20Hz to 20kHz(-/+0.1dB)
Connector RJ45 & 2XLR-M
Sampling Rate 44.1kHz/48kHz/96kHz
Data Bits 24bit
Dante Device delay <1ms
Power Supply Class 1 802.3af PoE

Download

DO22
