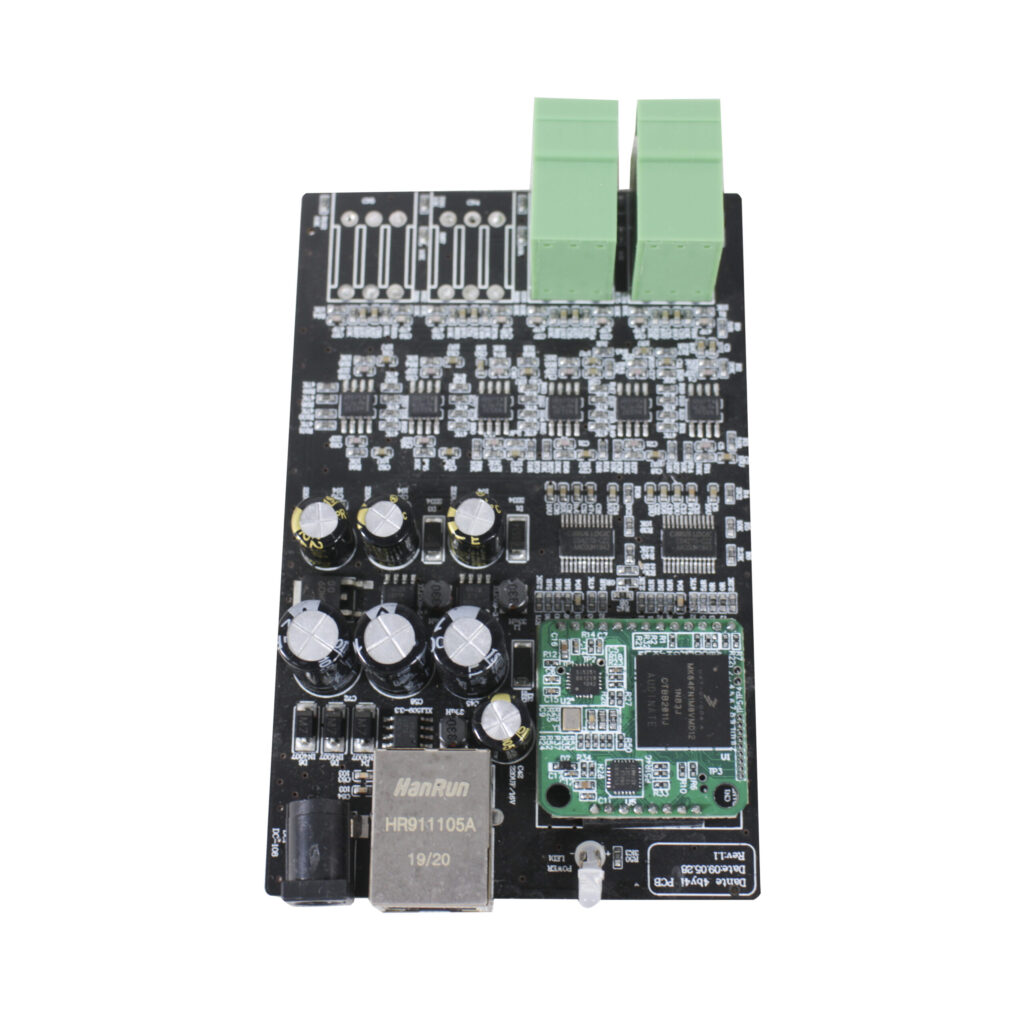

Dante 2 In 2 Out PCB Board

Feature:

Ideal interface to increase the number of microphones or AUX inputs
2/4 balanced line outputs can be used simultaneously, and all audio channels
are used with Dante network.
2/4 balanced MIC/AUX inputs, and also 2/4 outputs using phoenix connector
CAT5/6 connector to link with Dante network and controlled by Audinate

MODEL Dante 2 PCB
Input 2 balanced/unbalanced input
Input Impedance Greater than1800 Ω
Max. Input Level +8dbu@ 0dB gain
Output 2 balanced/unbalanced output
Output Impedance 200Ω balance
Max. Output Level +20dbu balance
Freq. Response 20~20KHz, ±1dB
THD Less than 0.02%
Power Requirements 12V DC
Dimensions 115x70x26 mm

Download

    Dante 2 PCB
