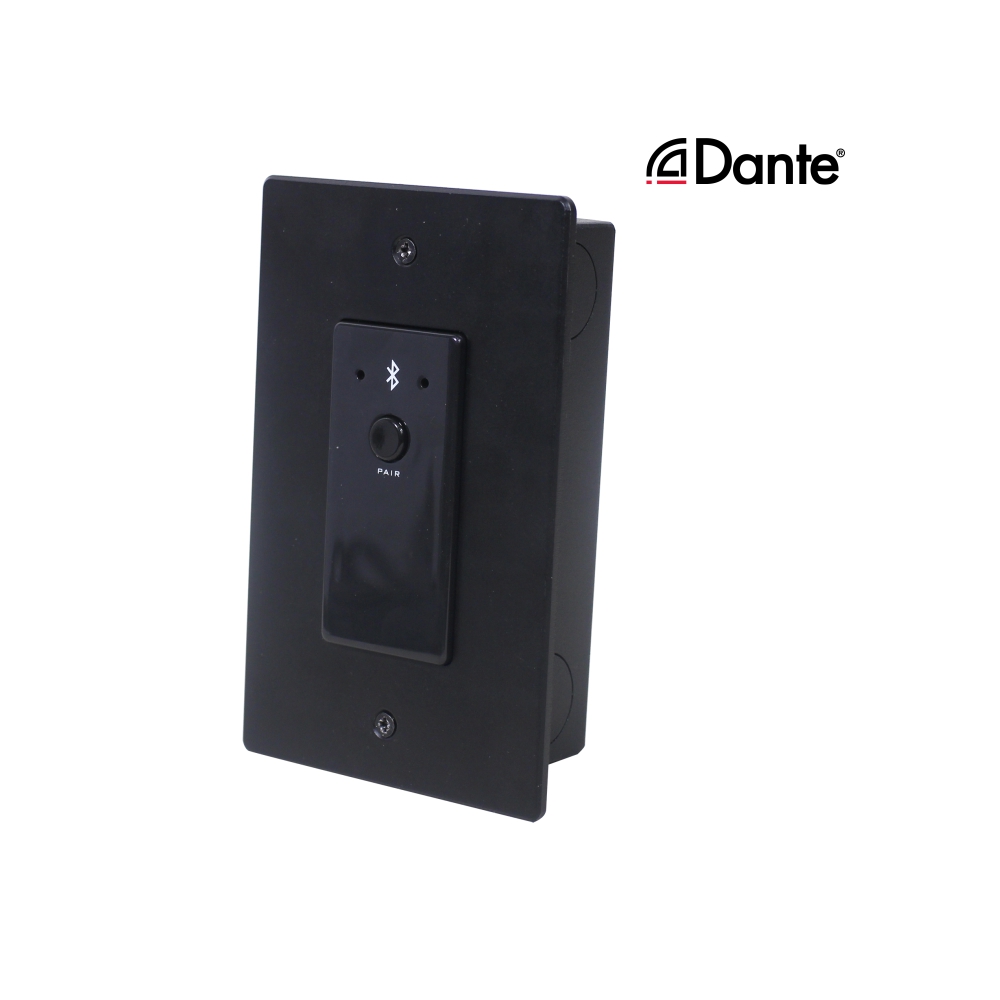

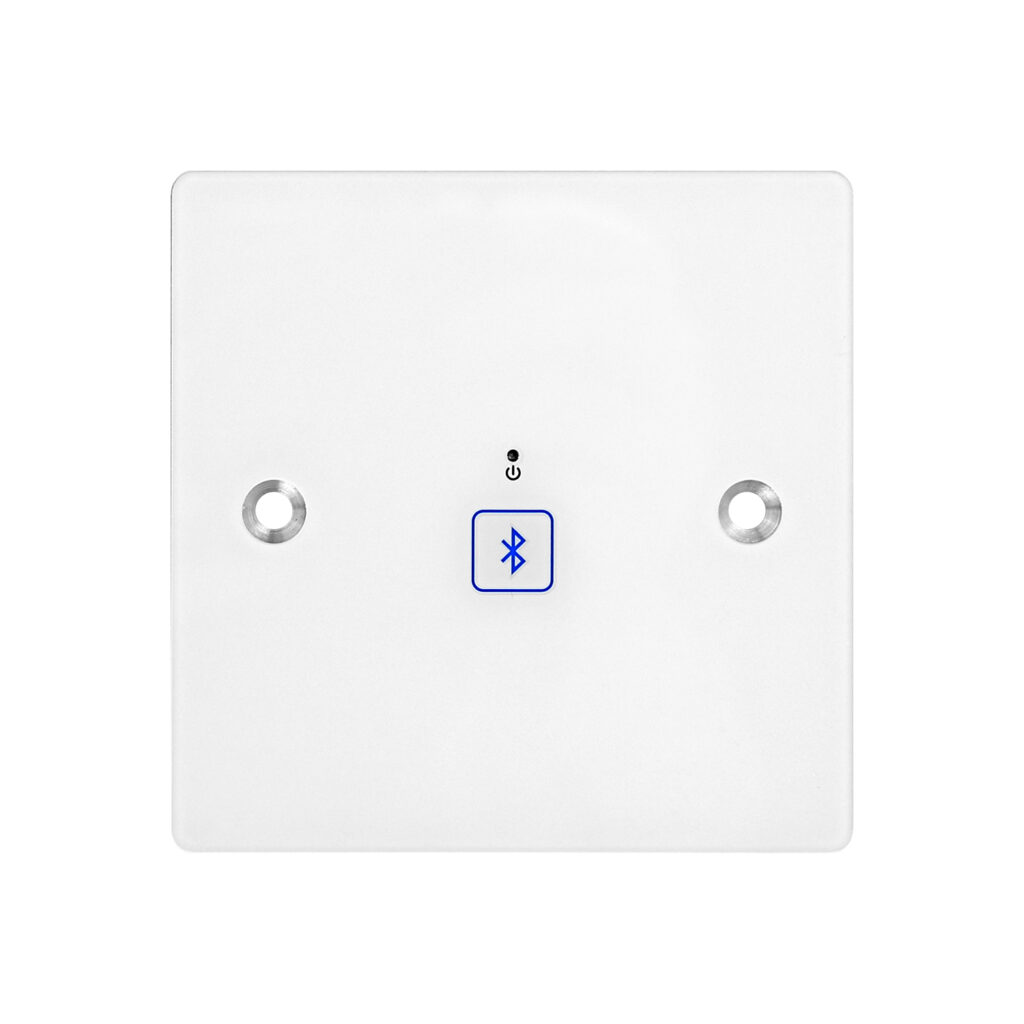

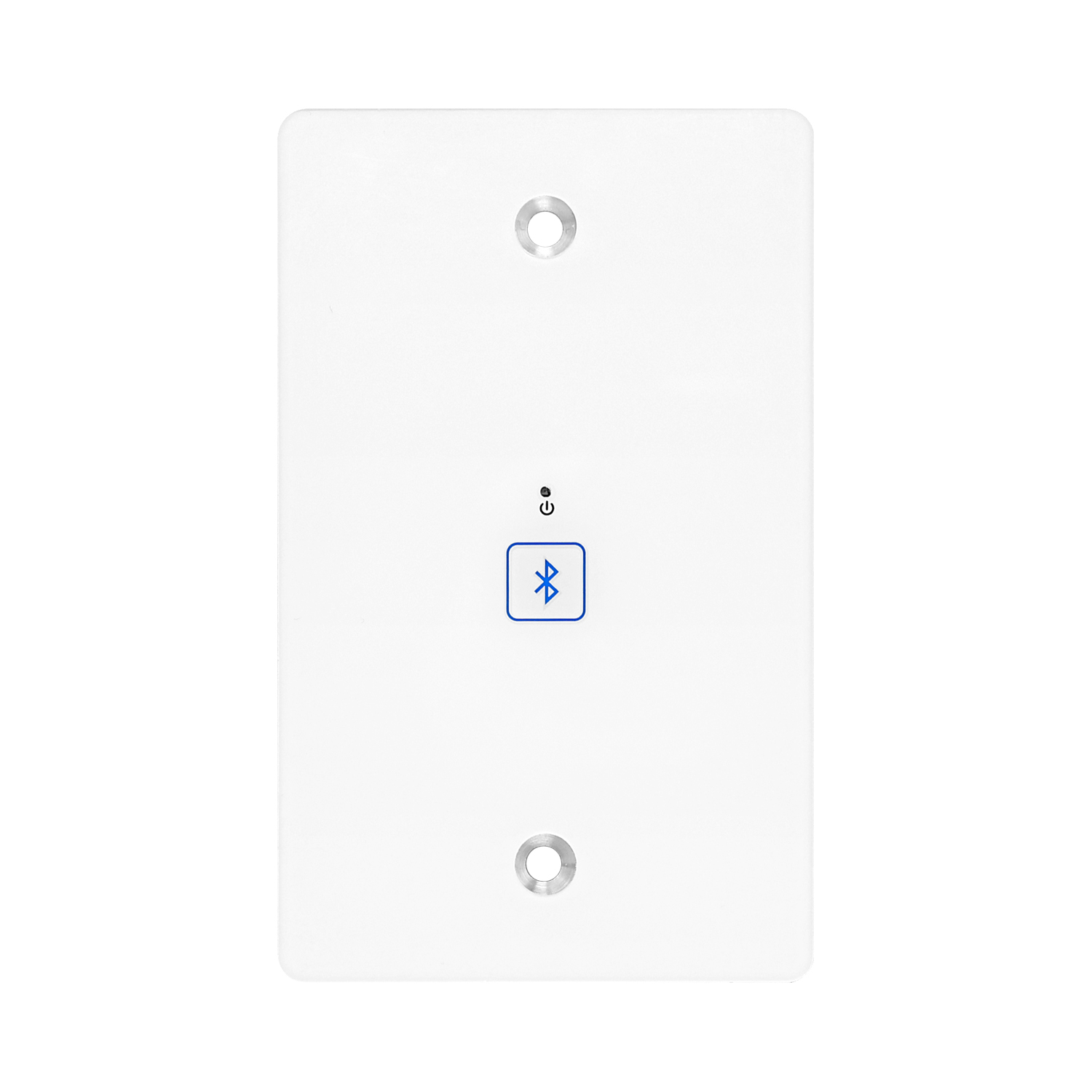

Dante Bluetooth Wall panel

Dante BW 0202 is a wall panel for converting between Bluetooth and
Dante signal, achieving two-way stereo transmission. It is widely used
for teleconference, audio media transmission, etc.

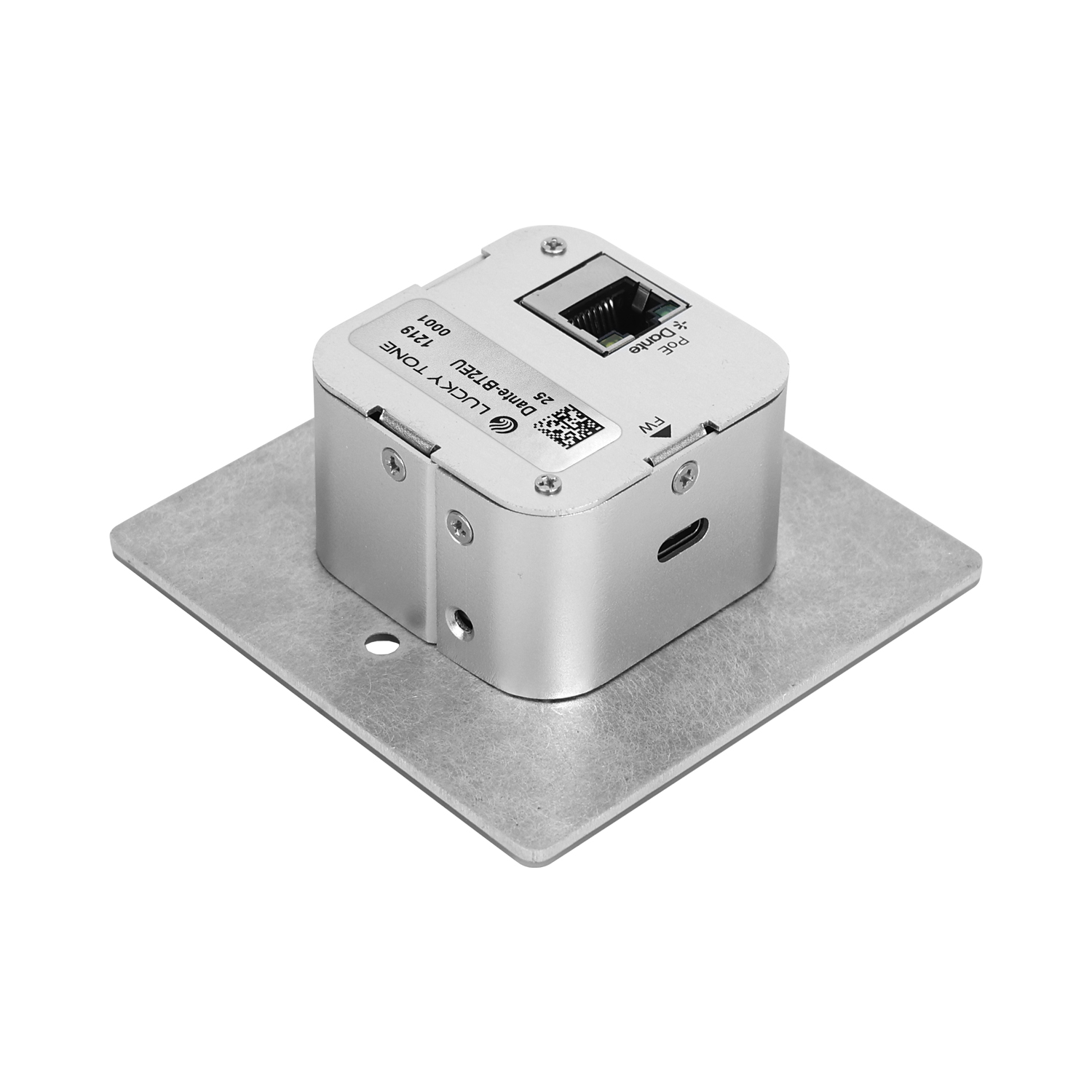

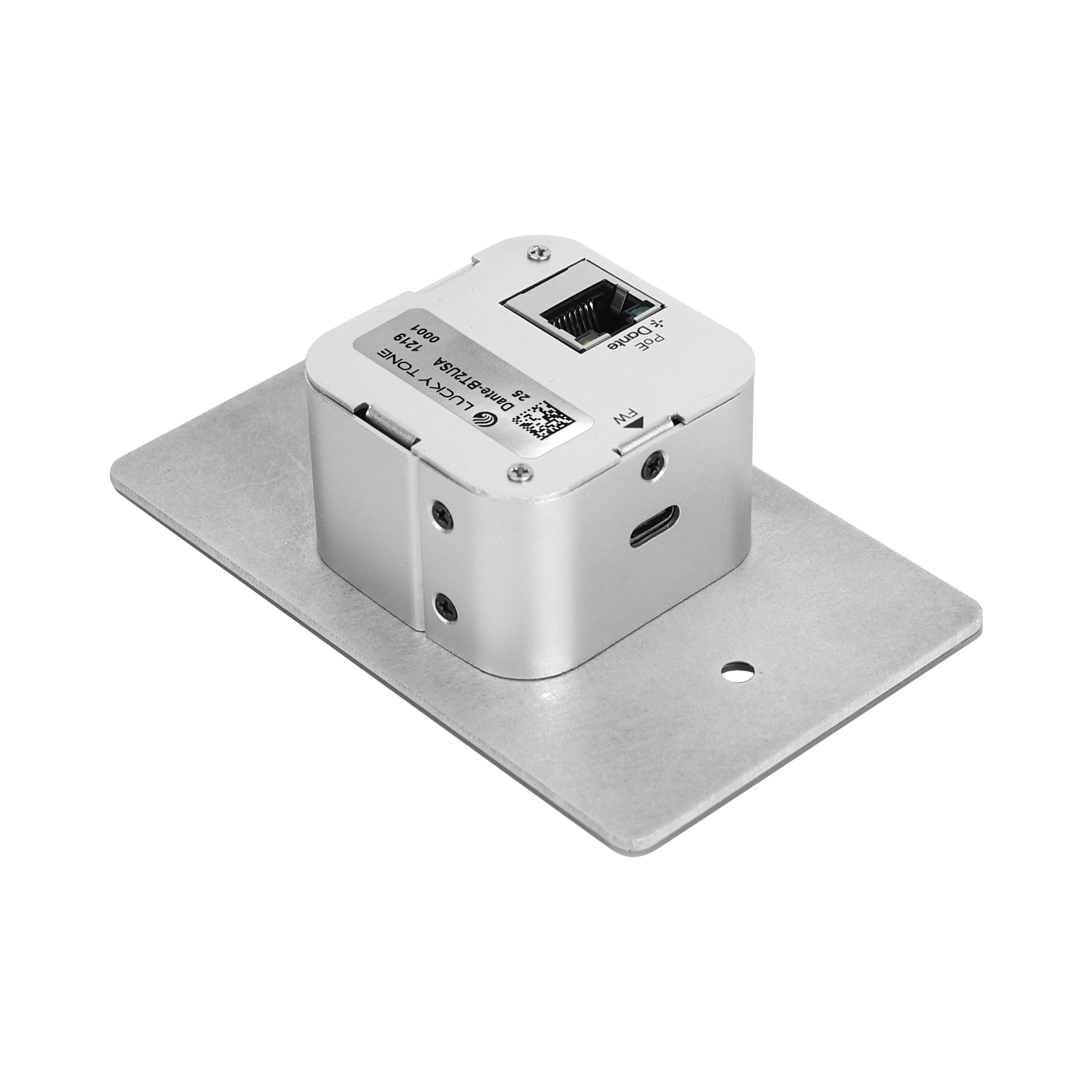

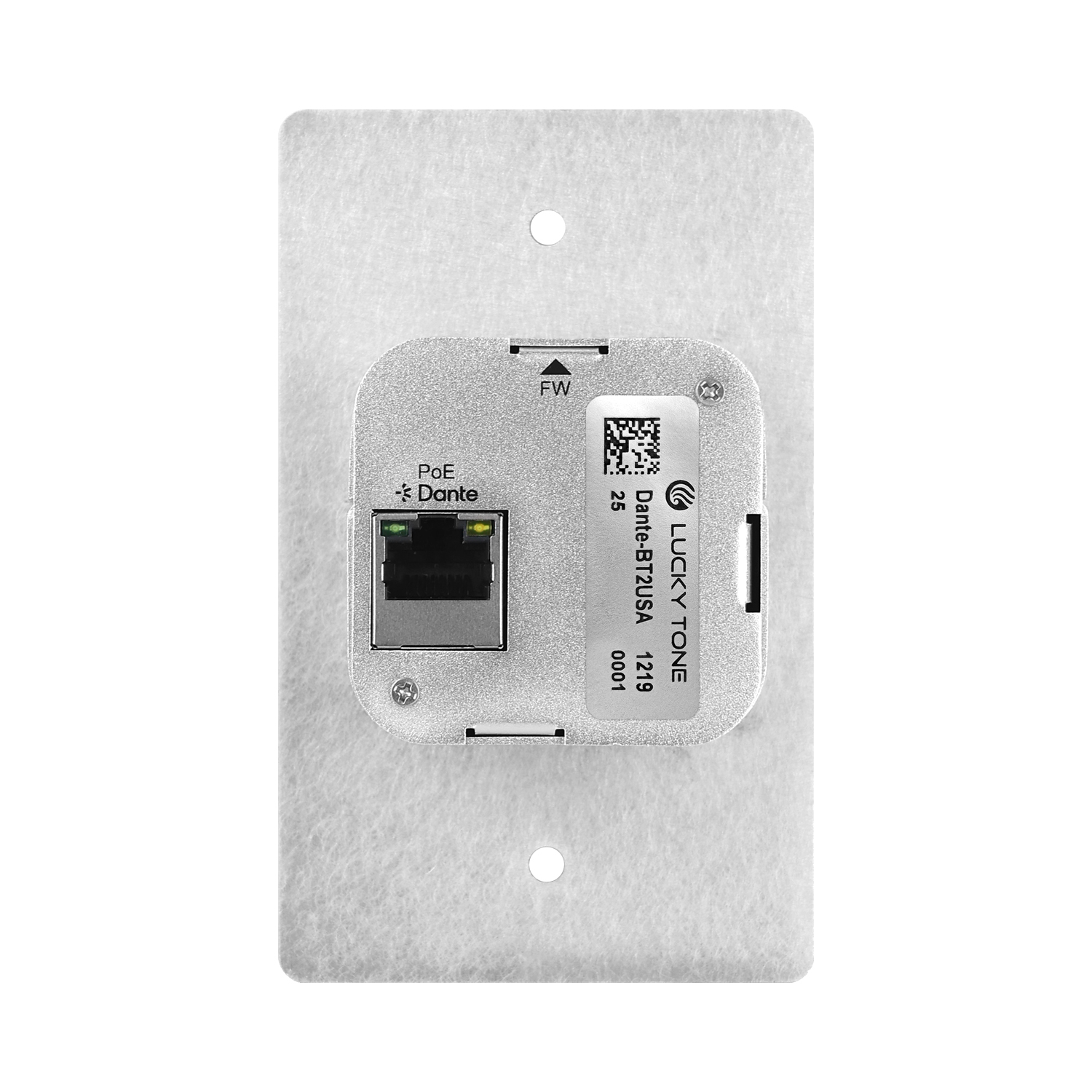

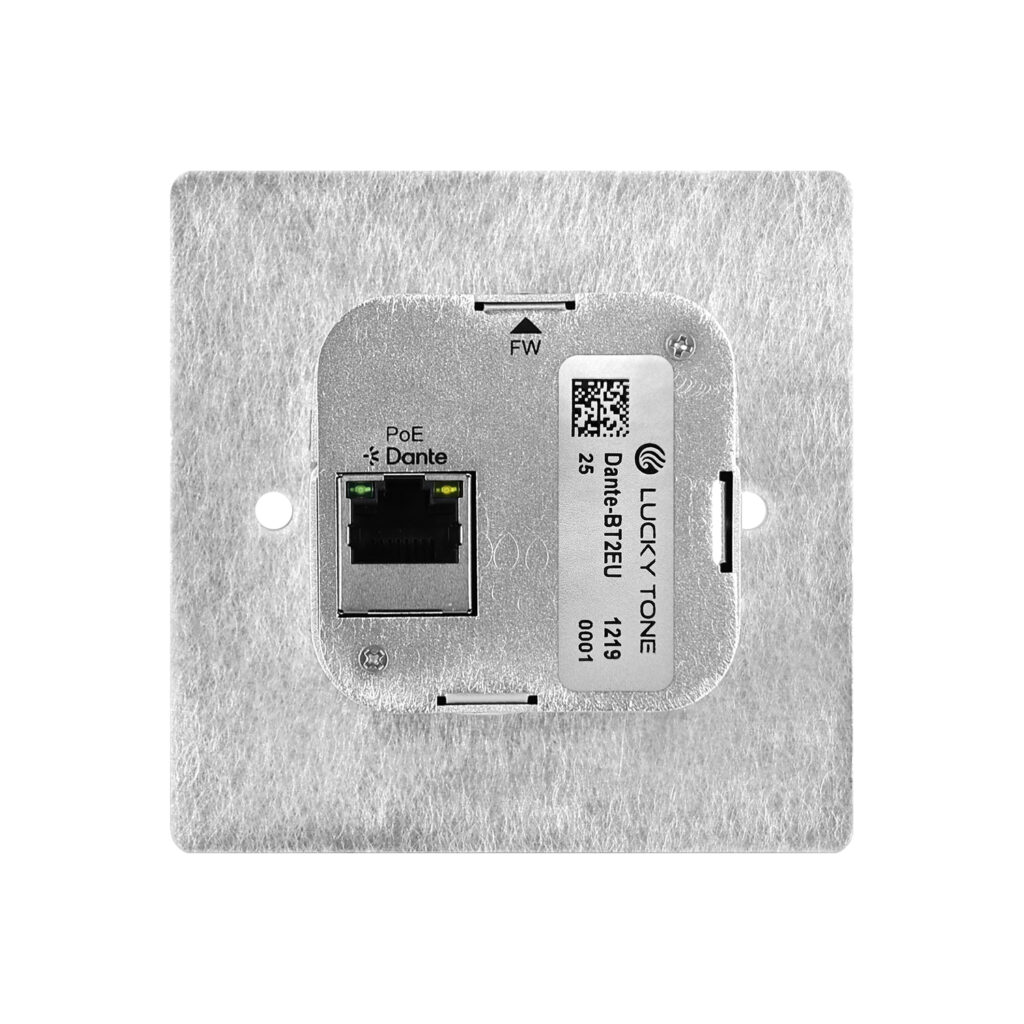

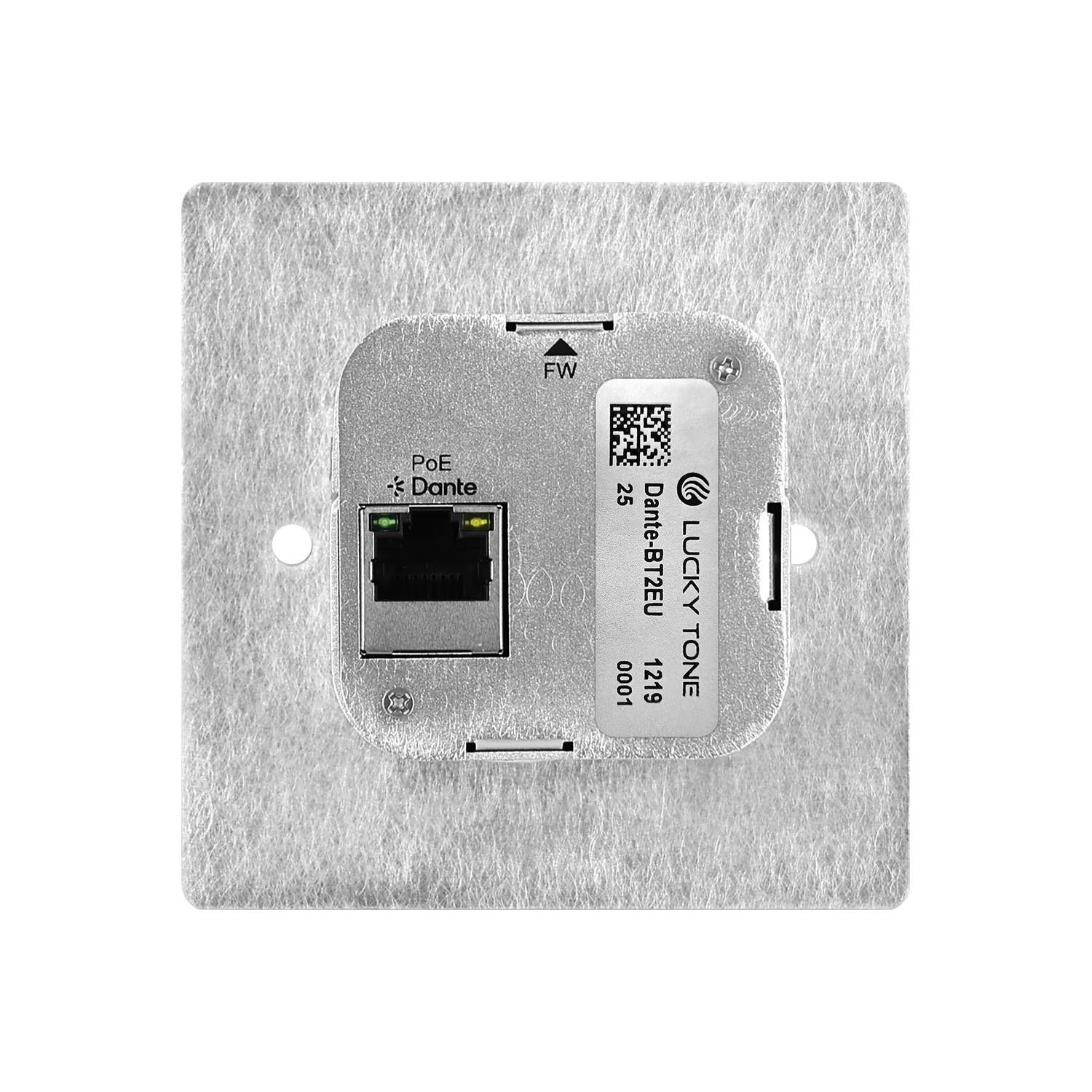

1.CAT5/6 connector to link with Dante network and controlled by Audinate;
2.Small size integrated mounting bracket which can be installed in very limited space;
3.Adopt advanced V5.0 Bluetooth technology;
4.Simple to pair bluetooth by pressing a button;
5.Compatible with a variety of mobile phones, tablets, computers and other devices;
6.Support PoE power supply;
7.Integrated power supply and audio transmission in one body
8.Convert 1 Bluetooth Audio signal to 2 Dante Network Audio channels

MODEL Dante BW 0202
Dante Audio Channel 2
Bluetooth Interface Bluetooth 5.0, stereo input and output
Dante Interface RJ45 interface, stereo input and output
Sampling Rate 48KHz, 24bit
Noise floor -90dB
Power consumption 2W
THD Less than 0.005%
Freq. Response 20~20KHz
Power Requirements POE
Operating temperature -10℃- 40℃
Working humidity 5-95%
Dimensions 123.5×79×35mm
Net weight 156g


Dante BW 0202
