4*4-inch Dante Subwoofer Speaker with DSP and POE

DP200B SUB POE with DSP



  • 4″ high-power drivers
  • Symmetrical configuration
  • Built in Dante POE amplifier module, worked only by one network cable
  • Standard RJ45 cabling, simple, cost effective and easy installation
  • No fan no noise but more reliable
  • Network digital control
  • Floor stacking, wall mounting or flying available
  • White & black color optional



Ordering Code:

DP200B SUB POE with DSP: 4*4-inch subwoofer speaker with DSP, POE, 200W, POE boost up to 90W, Black color

DP200B SUB: 4*4-inch subwoofer speaker 200W. Black color

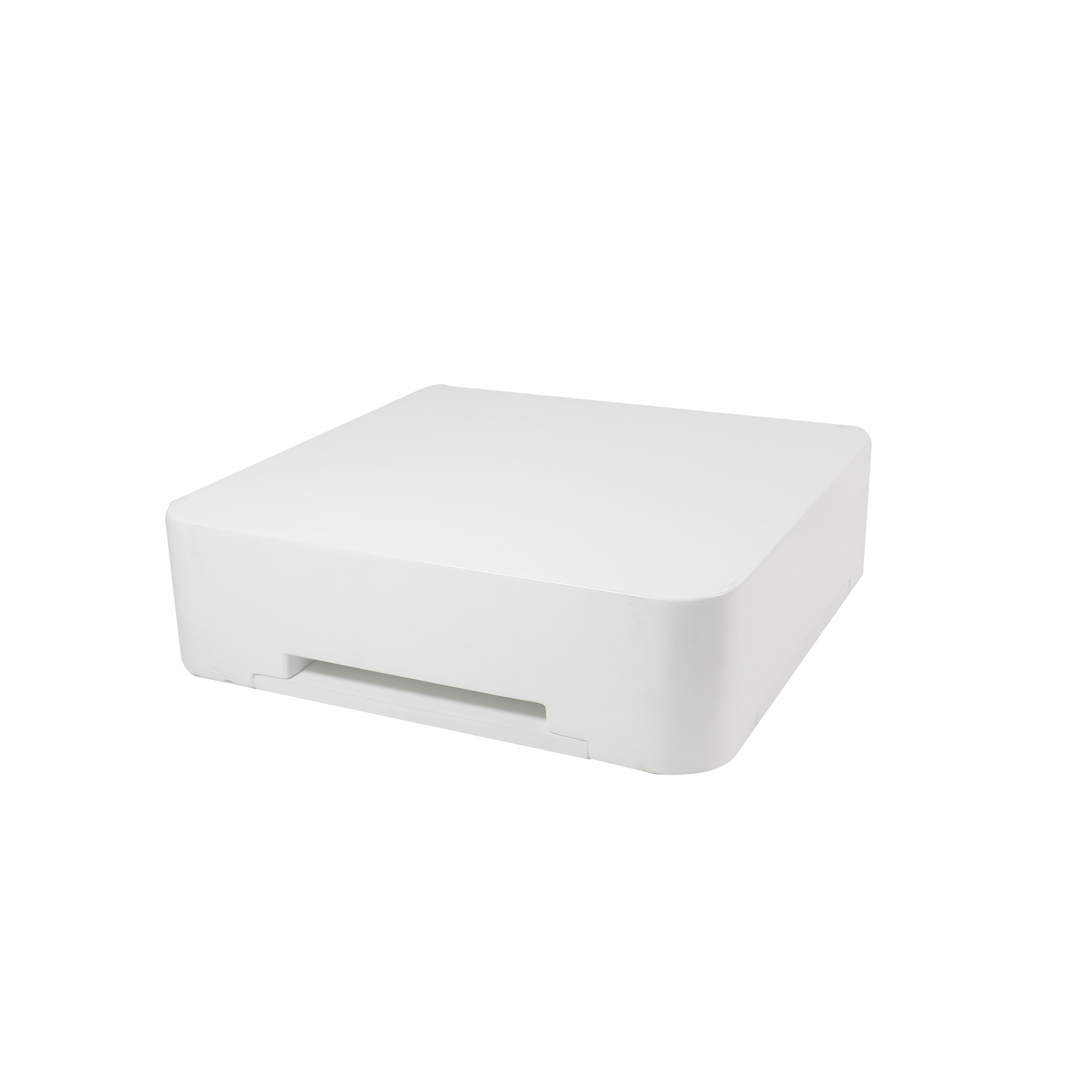

DP200W SUB POE with DSP: 4*4-inch subwoofer speaker with DSP, POE, 200W, POE boost up to 90W. White color

DP200W SUB: 4*4-inch subwoofer speaker 200W. White color

Model DP200W SUB POE with DSP/

DP200B SUB POE with DSP

DP200W SUB/

DP200B SUB

Frequency response(±3dB) 45Hz-150Hz 45Hz-150Hz
Driver 4×4″ subwoofer 4×4″ subwoofer
Impedance 8 ohm 8 ohm
Nominal power rating 200W 200W
Max. SPL 112 dB 112 dB
DSP 1-way 5-band EQ and mute control /
Connector RJ45 /
Power supply PoE+ (IEEE 802.3 at) /
Audio input Dante /
Band width 100M/1000M bps /
Installation On floor, wall mount,

or flying installation

On floor, wall mount,

or flying installation

Product dimensions (W×D×H)

375×375×106mm 375×375×106mm
Material Multi-layer plywood Multi-layer plywood
×
