Compact Outdoor Line Array Speaker

Features:

  • Four speaker modules ensure high power and high quality.
  • Controllable coverage features for 60, 45, 30, and 15 degree
  • Built-in passive network ensures appropriate sound quality.
  • Ideal for both permanent and temporary installations, including both vertical and horizontal positioning.
  • Equipped with a convenient carrying handle.
  • Can be mounted directly on a wall or suspended by wire, chain or shackle with no need to use optional brackets.
  • Optional mounting brackets allow use in a wide variety of applications. including suspension, ceiling mount, wall mounting, and speaker stand mounting.



Ordering Code:

LA-200: 200W outdoor Line array speaker 8 OHM

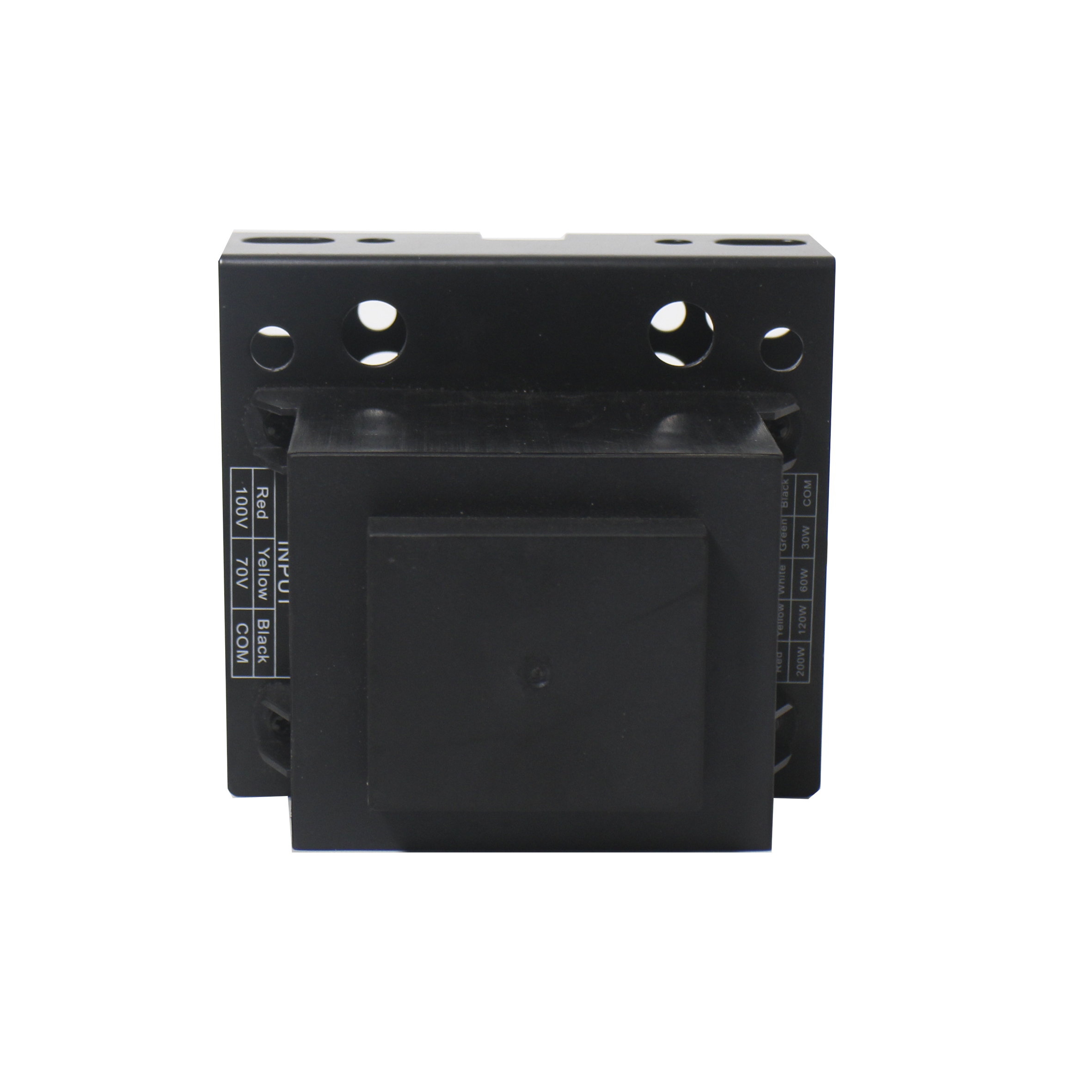

LA-200T: 200W outdoor Line array speaker with Transformer

LA-200BRC: LA-200 Ceiling mounting bracket, optional to order

LA-200BRR: LA-200 Rigging frame, optional to order

LA-200BRCB3: LA-200 Hanging cable 3 Meter*3, optional to order

LA-200BRCB5: LA-200 Hanging cable 5 Meter*3, optional to order

LA-200BRCB10: LA-200 Hanging cable 10 Meter*3, optional to order

Model LA-200T LA-200
Enclosure Bass-reflex type
Power at 100V 30/60/120/200W /
Power at 8ohm / 200W
Sensitivity (1 W, 1m) 96 dB (60° mode), 97 dB (45° mode),

98 dB (30° mode), 99 dB (15° mode).

Frequency Response

(Deviation-10 dB)

70 to 20,000 Hz(60° mode), 75 to 20,000 Hz(45° mode)

80 to 20,000 Hz(30° mode), 85 to 20,000 Hz(15° mode)

Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100 (over 2,000 Hz)

Vertical: 60° (over 800 Hz), 45° (over 1.2 kHz),

30° (over 1.6 kHz), 15° (over 3.2 kHz) variable

Speaker Low frequency: 12 cm (5″) cone-type x 4

High frequency: Balanced dome-type x 12

Input Terminal Two core wire
Finish (Enclosure) Polypropylene, white
Dimensions 408(w) x 546(h) x 342(d) mm
Color White/Black
Weight 18kg 16kgLA-200T LA-200 新产品20231130(1)
