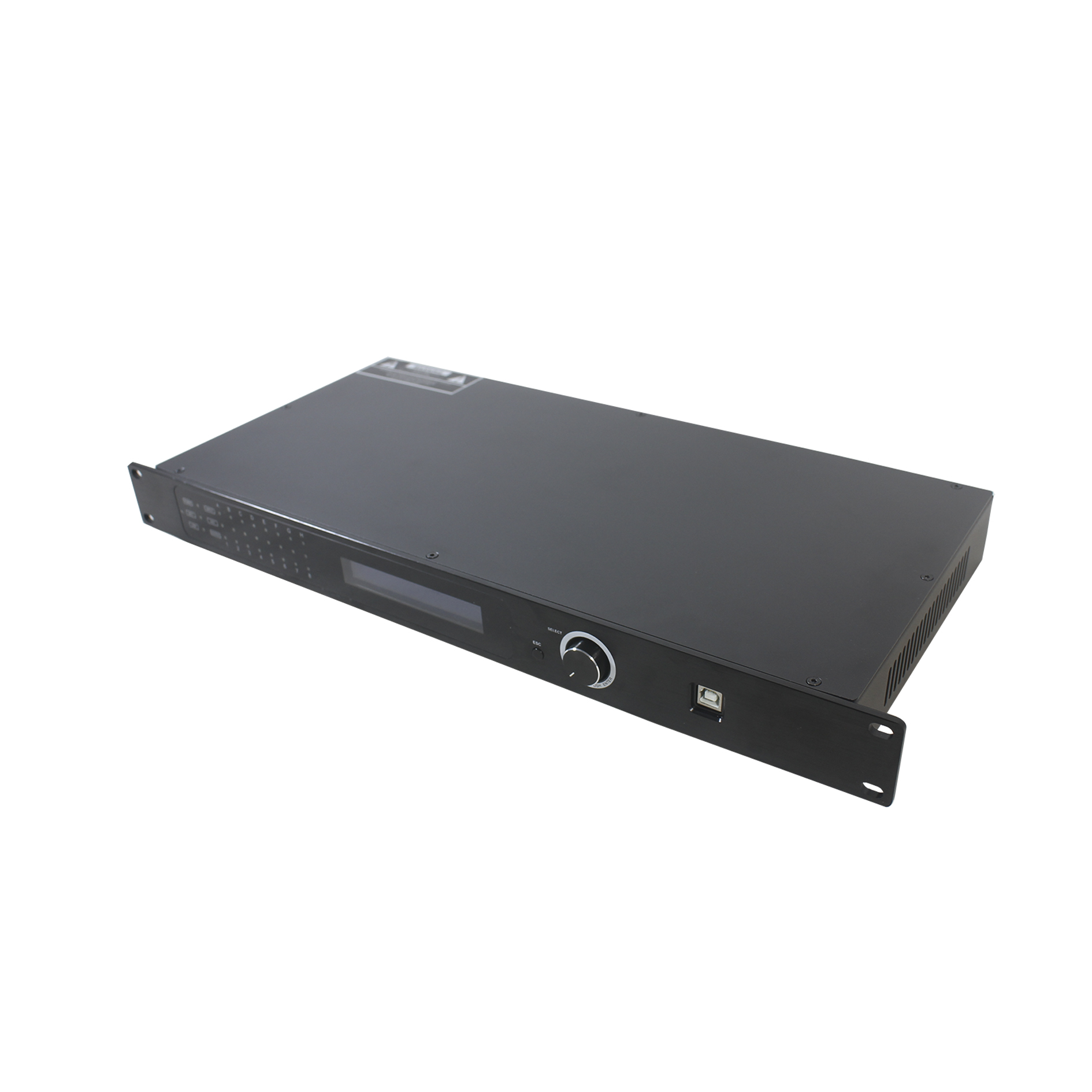

Open architecture Dante 8 In 8 out DSP audio processor

The input and output modules of DSP can be customized according to the site conditions. At the same time, it has independent AFC/ AEC/ ANS/ AGC/ gain sharing automatic mixing, threshold automatic mixing and other processing modules. Meet the needs of audio processors and transmission in various places, such as conference rooms, multi-function halls, conference centers, auditoriums, administrative centers, etc.



Customizing operation software makes the configuration more flexible, and it can control Different DSP.

Provides operation interface for customers to realize centralized control of multiple devices. And it can control third-party’s equipment through DUP RS232, Rs485;

AFC (feedback suppression), AEC (echo cancellation), ANS (noise suppression), ANC (noise gain compensation), AGC (automatic gain), gain sharing, threshold automatic mixing, dodger and other processing modules;

8 GPIOs can independently configure with input or output, and they can be used as independent ADC when configuring with input;

Support RS232&UDP central control, UDP port can be set freely, and you can check the control software code

High-quality 24bit A/D and D/A converter

Dual network backup

Dual Power Redundancy (AC/DC)

MODEL DSP-880 LD+
Type Network interface, D/A conversion

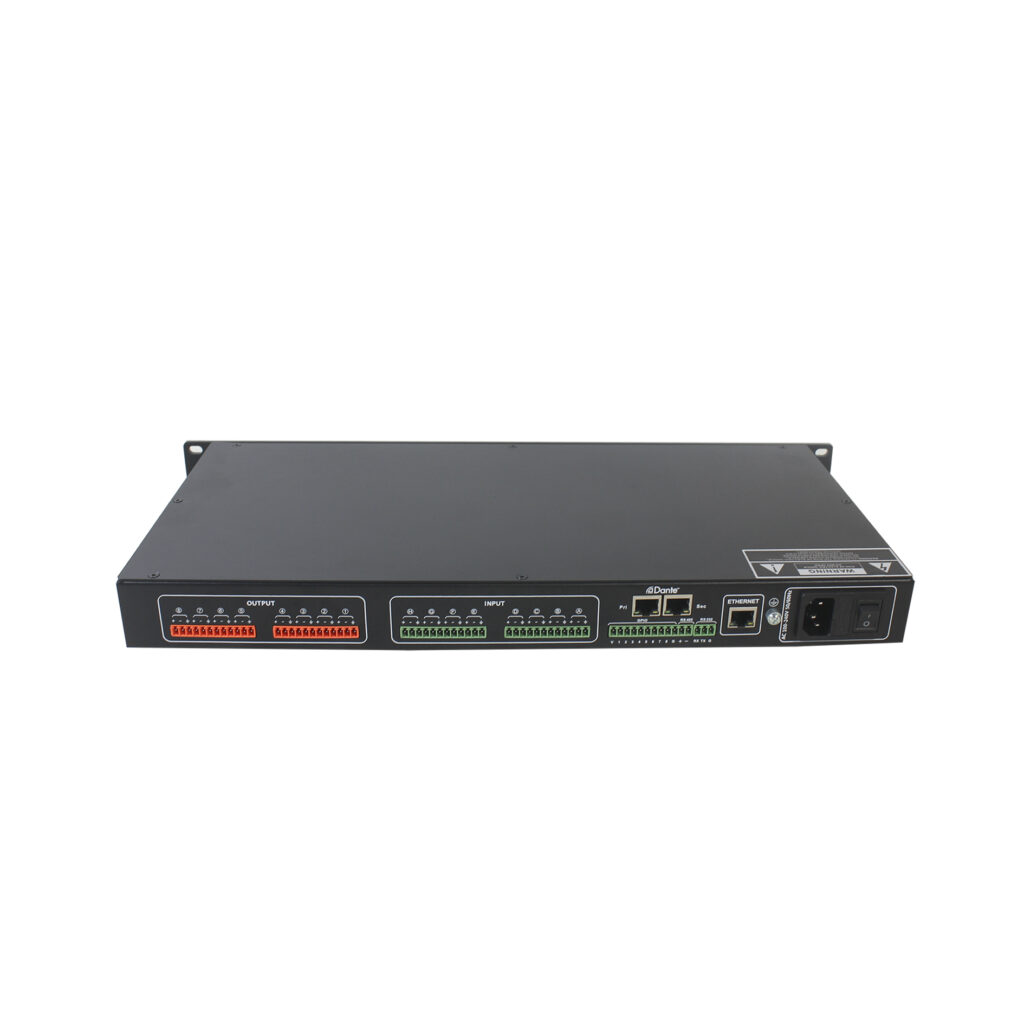

Channels  8 channels mic (with phantom power)/ Line input, 8 channels line output
Network port  2 Gigabit Ethernet ports
Control ports  8 GPIO channels and 1 general purpose serial port Rs232
Frequency Response  20Hz~20kHz
Frequency of sample  48kHz
Dynamic Range  118dB
THD+N  <0.002%
Phantom Power  +48V DC 10mA
Gain  6dB/step (0db-45dB)
AD/DA  123dB
OPA(operational amplifier)  113 dB
Input Impedance (Balanced)  8kΩ
Output impedance (balanced) 207Ω
SNR >90dB
Maximum input and output level +20dBu/10dBv
