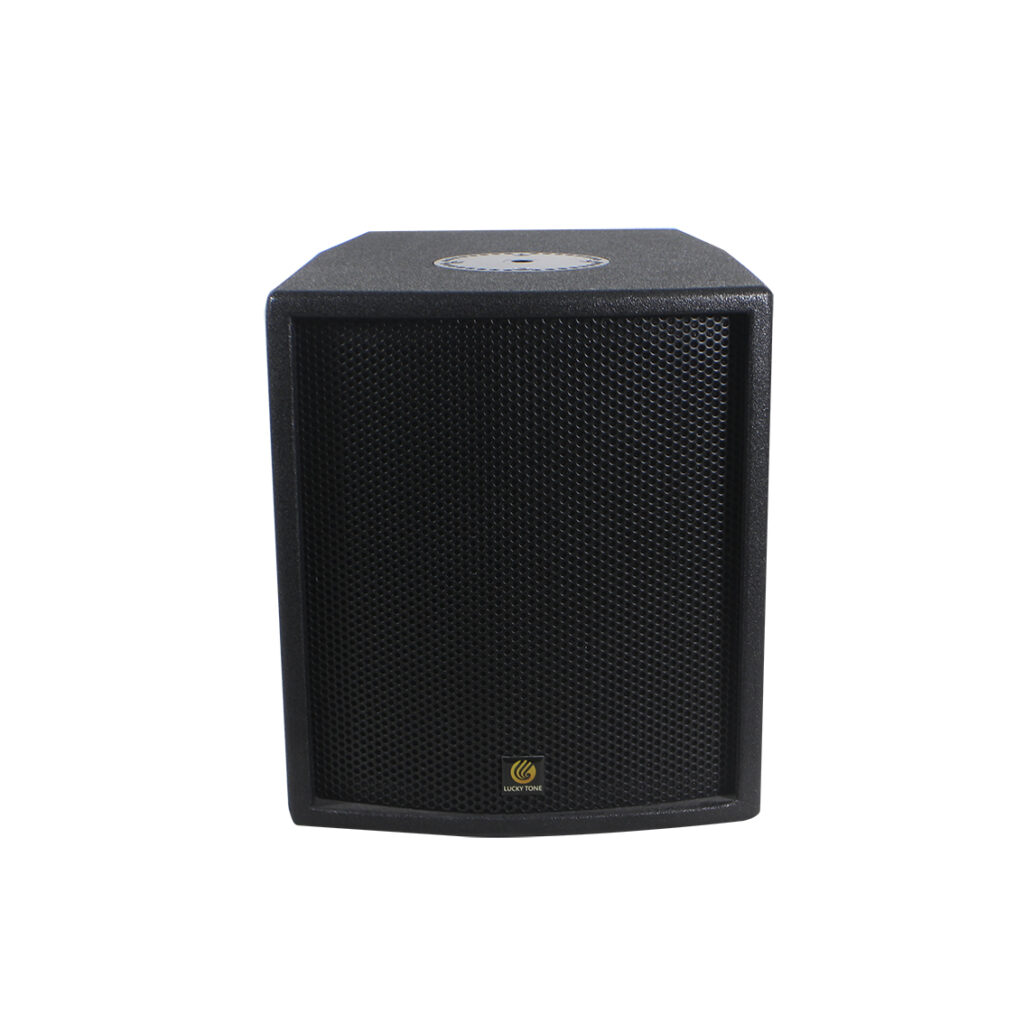

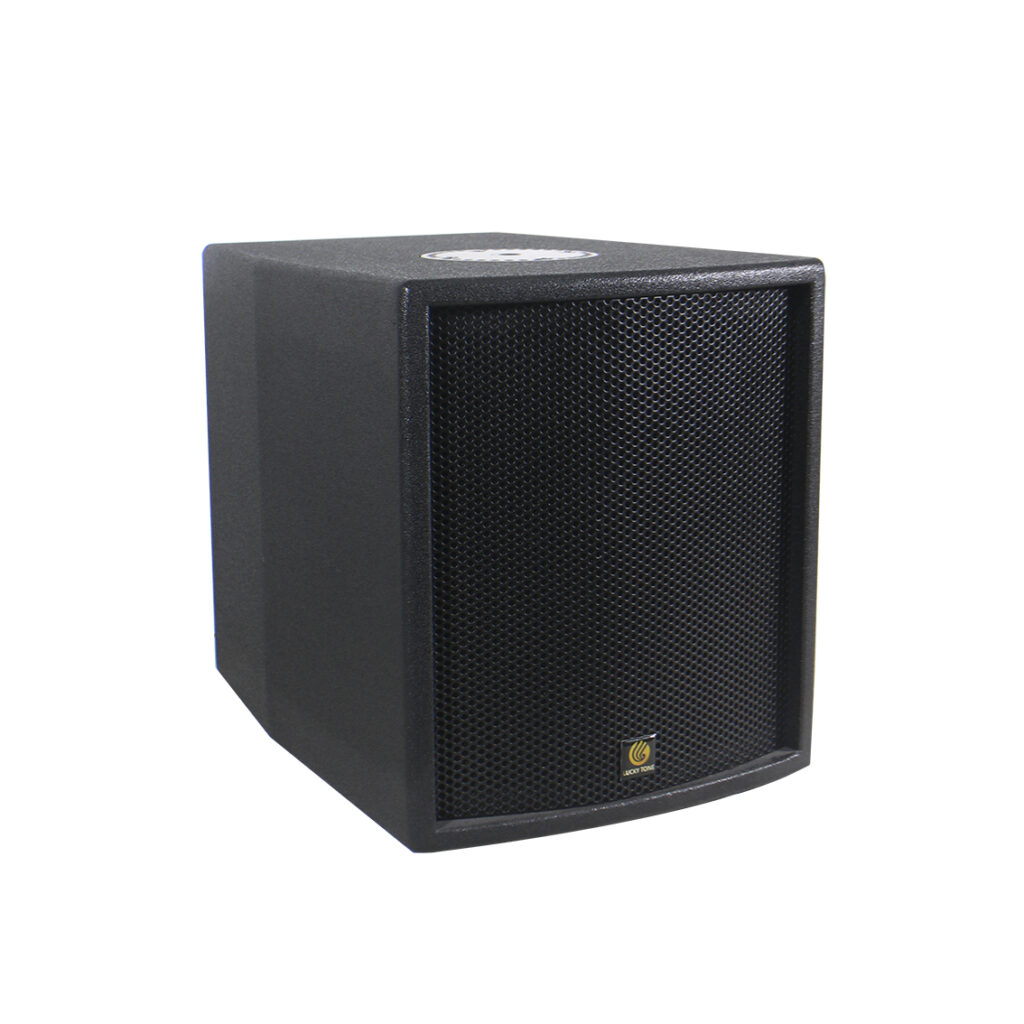

Subwoofer speaker with DSP, POE power supply

Description

DP 120 SUB DSP Speaker can realize its multifunction the POE power supply,
audio transmission and signal control via a RJ45 Ethernet port. It can obtain
power supply from any Ethernet switch of 802.3 or above standard. DP 120
SUB DSP adopts SSA inverter technology allowing that the high-quality
enlargement of superior sound quality realizes on this compact speaker of low
power design.
Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its
control signal can be routed through the Dante™ Controller. DP 120 SUB DSP
integrates versatile functions like gain control, mute control, 5-band equalizer
control and DSP with limit control. All these functions can perform remotely on
the PC by DSP Controller Software.

Features:

1.Built-in Dante module
2.Built-in power amplifier module and its system efficiency > 70%
3.DSP controlling software
4.PoE power supply
5.Over-current protection, Thermal protection and Overload protection

MODEL DP 120 SUB DSP
Input Interface RJ-45
Audio Input Signal Dante™ | Balanced amplified signal
Cable Cat-5 or above
Output Power 120W, POE boost up to 60W depends on router power
Bandwidth 100M/1000M bps
Frequency Response 50Hz-150Hz
Driver 1 x 8” woofer
Nominal Impedance 8ohm
Sensitivity 92dB
Max SPL 119dB
DSP One way 5-band PEQ/mute control
Power Supply PoE
Product Dimension 290x400x330mm
Shipping Dimension 834x493x507mm
Net Weight 12kg

Download

DP 120 SUB DSP
